Purge Flow Sensor: Service and Repair

EVAP Solenoids:

Numbers in text refer to image references.


REMOVAL PROCEDURE

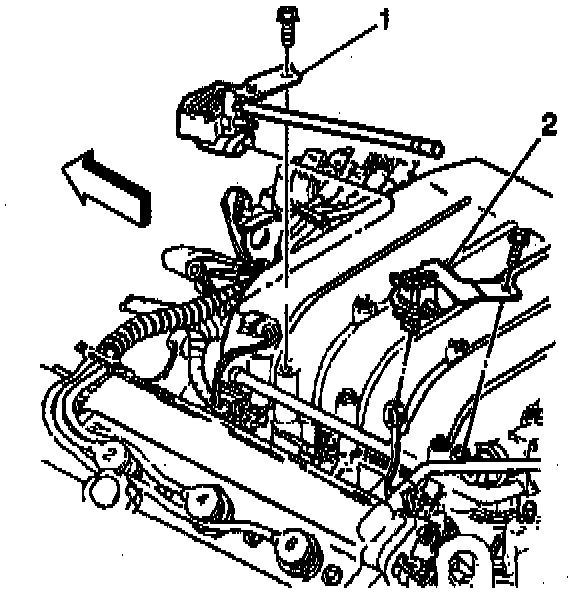

1. Disconnect the EVAP vacuum switch electrical connector (2).
2. Remove the vacuum hoses from the EVAP vacuum switch.
3. Bend the retaining tab on the bracket to remove switch.
4. Remove the EVAP vacuum switch.

INSTALLATION PROCEDURE
1. Install the vacuum hoses to the EVAP vacuum switch.
2. Install the EVAP vacuum switch on the bracket.
3. Bend the retaining tab to secure the EVAP vacuum switch to the bracket.
4. Reconnect the EVAP vacuum switch electrical connector.
