Home >> Chevrolet >> 1996 >> Lumina V6-204 3.4L DOHC VIN X SFI >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Locations >> Window Switch Connector, Rear

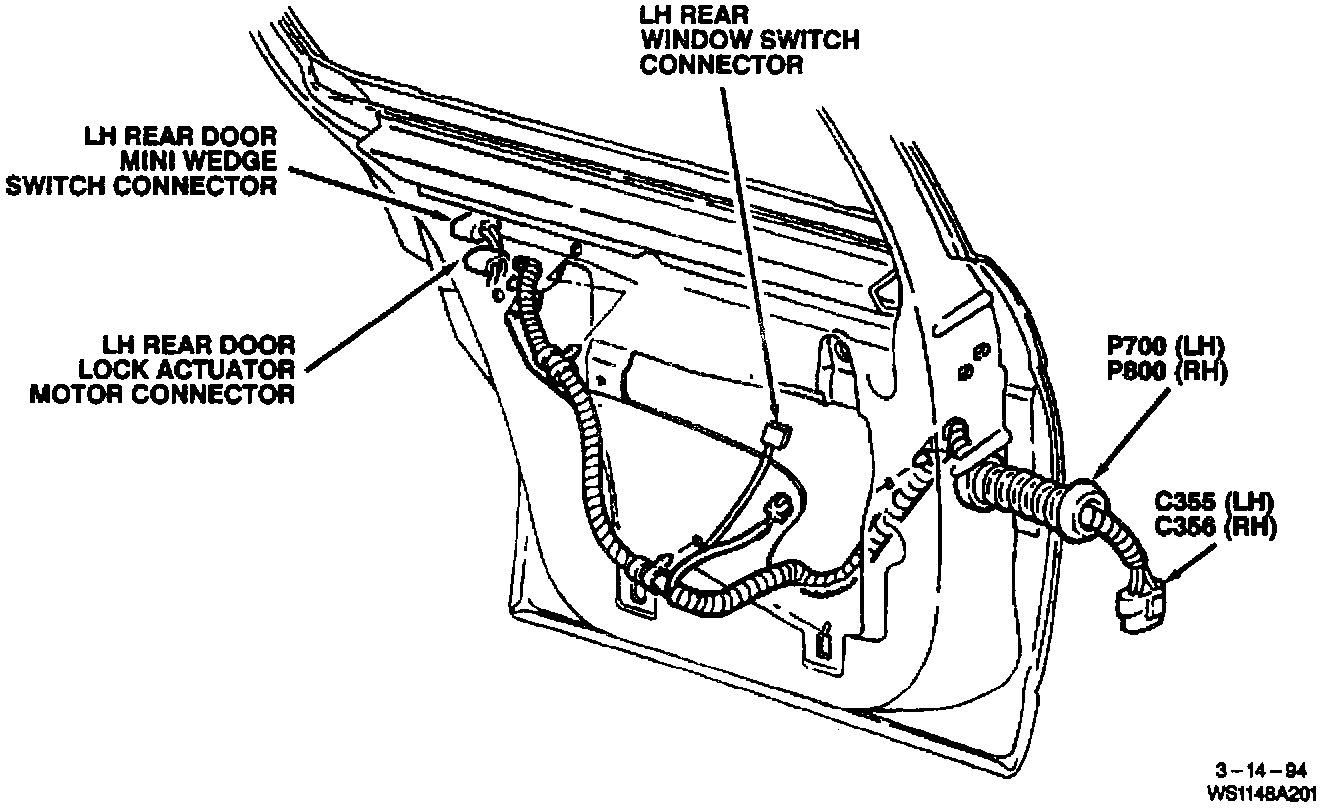

Window Switch Connector, Rear

LH Rear Door (RH Rear Door Similar):
