Home >> Chevrolet >> 1996 >> Corvette V8-350 5.7L VIN 5 SFI >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Motor >> Testing and Inspection

Windshield Washer Motor: Testing and Inspection

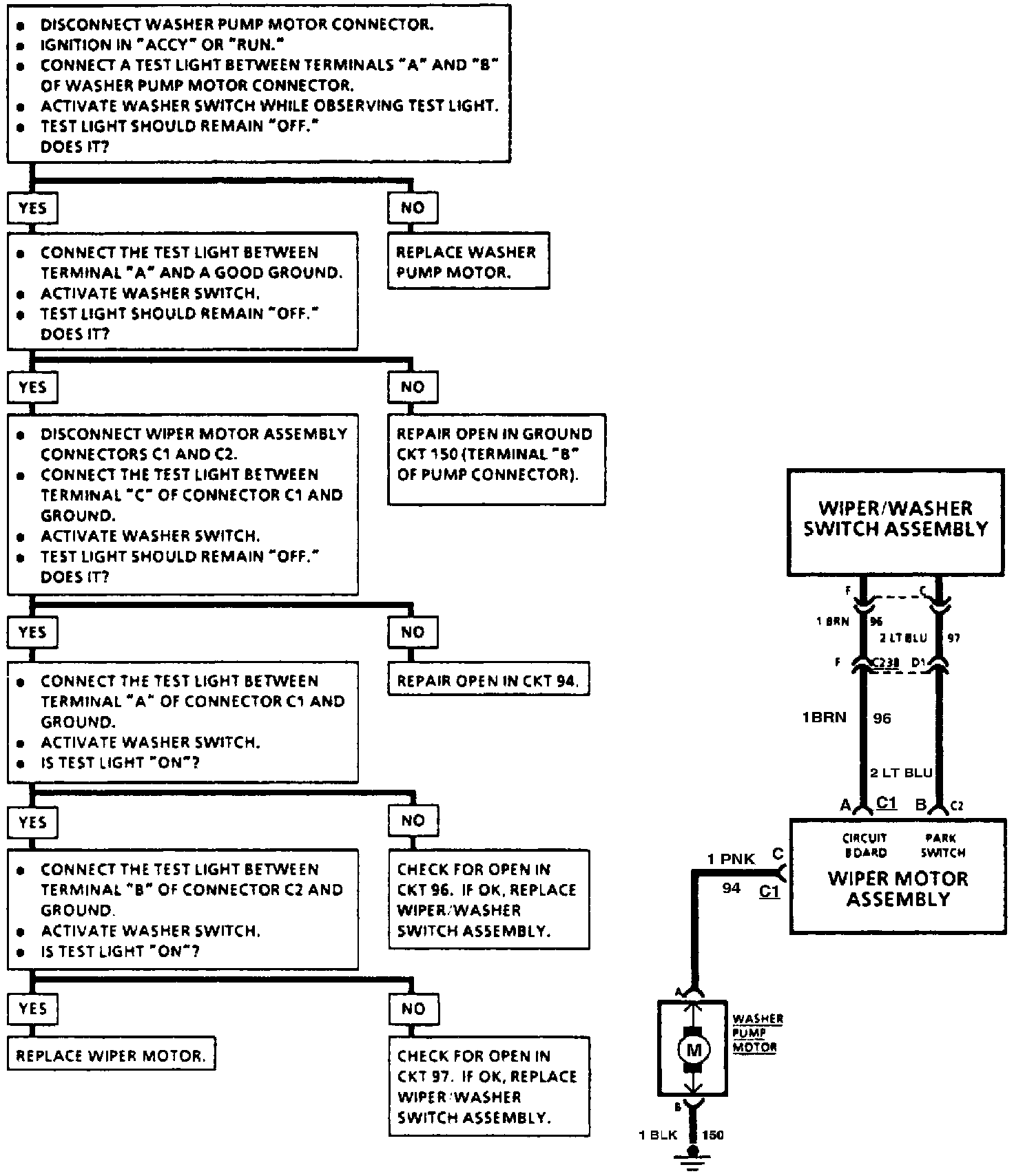

Fig. 113 Test 6: Washer Will Not Operate.:
