Rear Axle

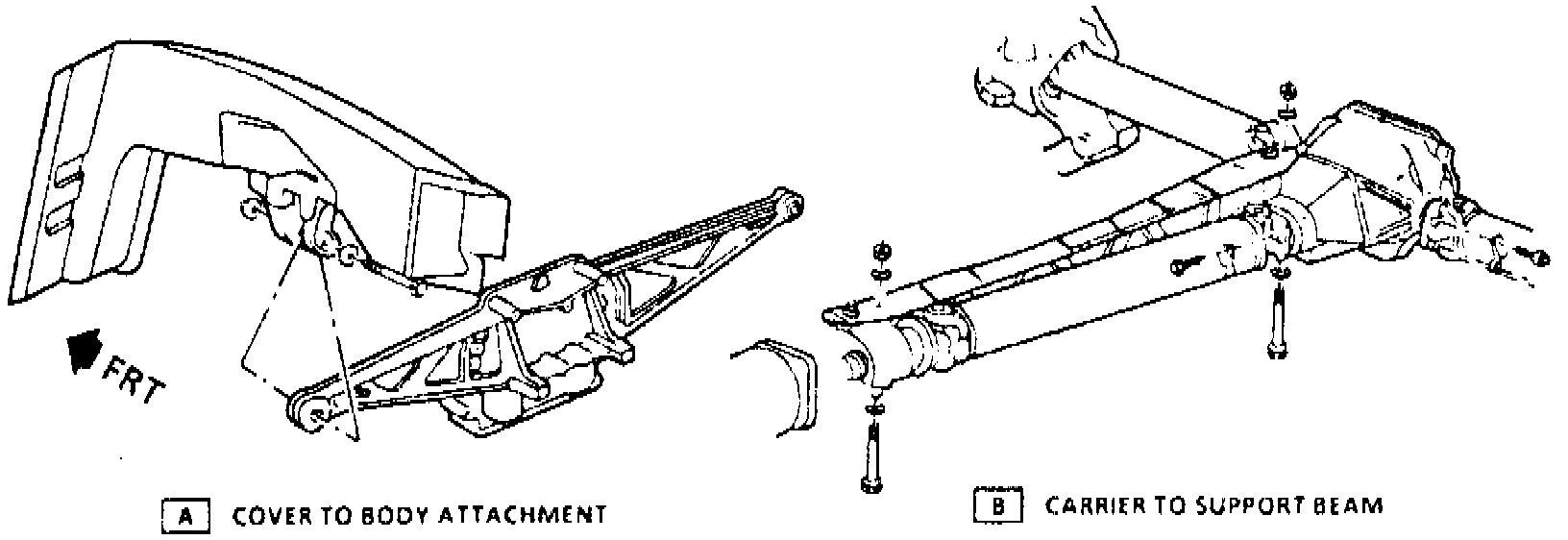

Fig. 1 Differential Carrier Attachment.:

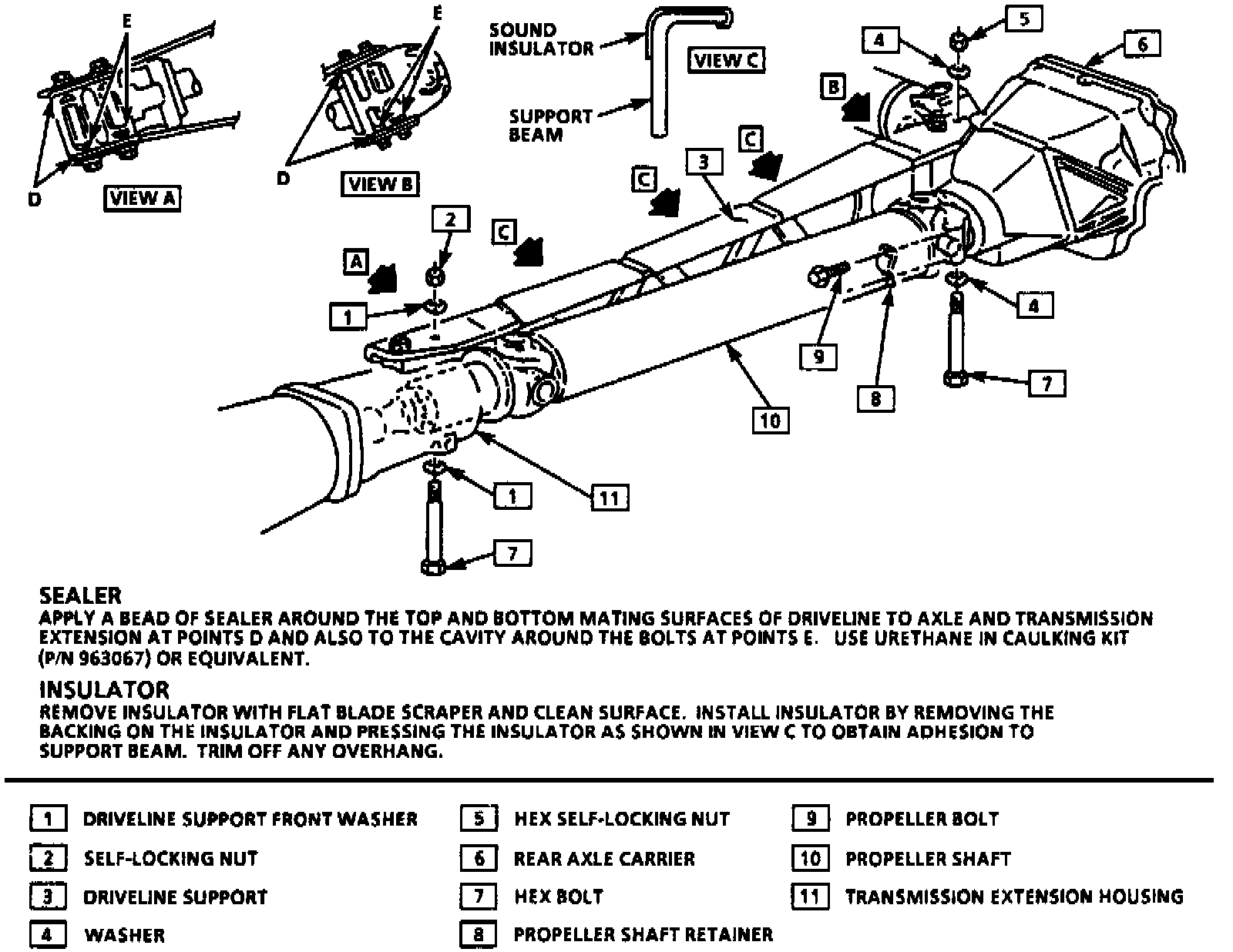

Fig. 2 Driveline Support Installation & Sealer Application Locations.:

1. Raise and support vehicle, and remove spare tire, tire cover and underbody braces, as required.
2. Remove exhaust system assembly as follows:
a. Disconnect AIR pipe at converter and AIR pipe clamps at manifold.
b. Disconnect electrical connector from oxygen sensor.
c. Support exhaust system, remove bolts securing mufflers to hangers, and remove converter bracket.
d. Disconnect exhaust pipes at manifolds and remove exhaust system.
3. Disconnect leaf spring from spindle support knuckles, then remove bolts securing spring to differential carrier and spring.
4. Scribe mark between cam bolts and brackets, then remove cam bolts and mounting bracket from carrier.
5. Disconnect tie rods from left and right spindle support knuckles.
6. Remove straps securing driveshaft universal joints to differential side yokes, push wheel and tire assemblies outward, and disconnect driveshafts from side yokes. Tape bearing cups to universal joint yokes to prevent loss of needle bearings.
7. Remove straps securing propeller shaft universal joint to pinion flange, push propeller shaft forward into transmission and tie shaft to support beam.
8. Support transmission and remove bolts securing differential carrier beam to frame brackets, Fig. 1.
9. Remove mounting bolts at front of differential carrier and carrier assembly.
10. Reverse procedure to install. When installing driveline support, apply sealer at locations as shown in, Fig. 2. Check rear suspension alignment.
