Home >> Chevrolet >> 1996 >> Corvette V8-350 5.7L VIN 5 SFI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Steering and Suspension >> Relays and Modules - Suspension >> Suspension Control Module >> Diagrams >> C3

C3

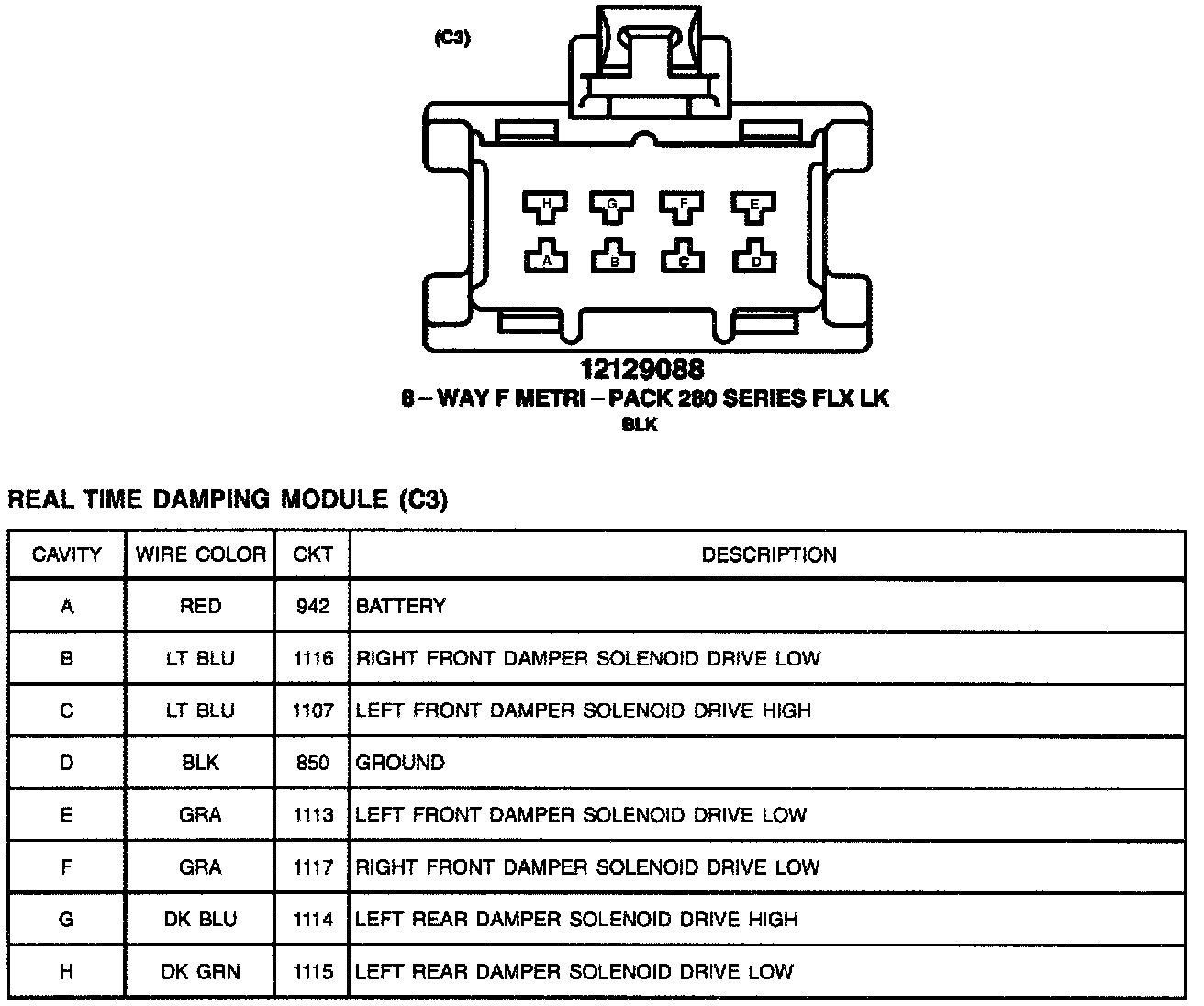

Ride Time Damping Module: C3:
