Component Locations

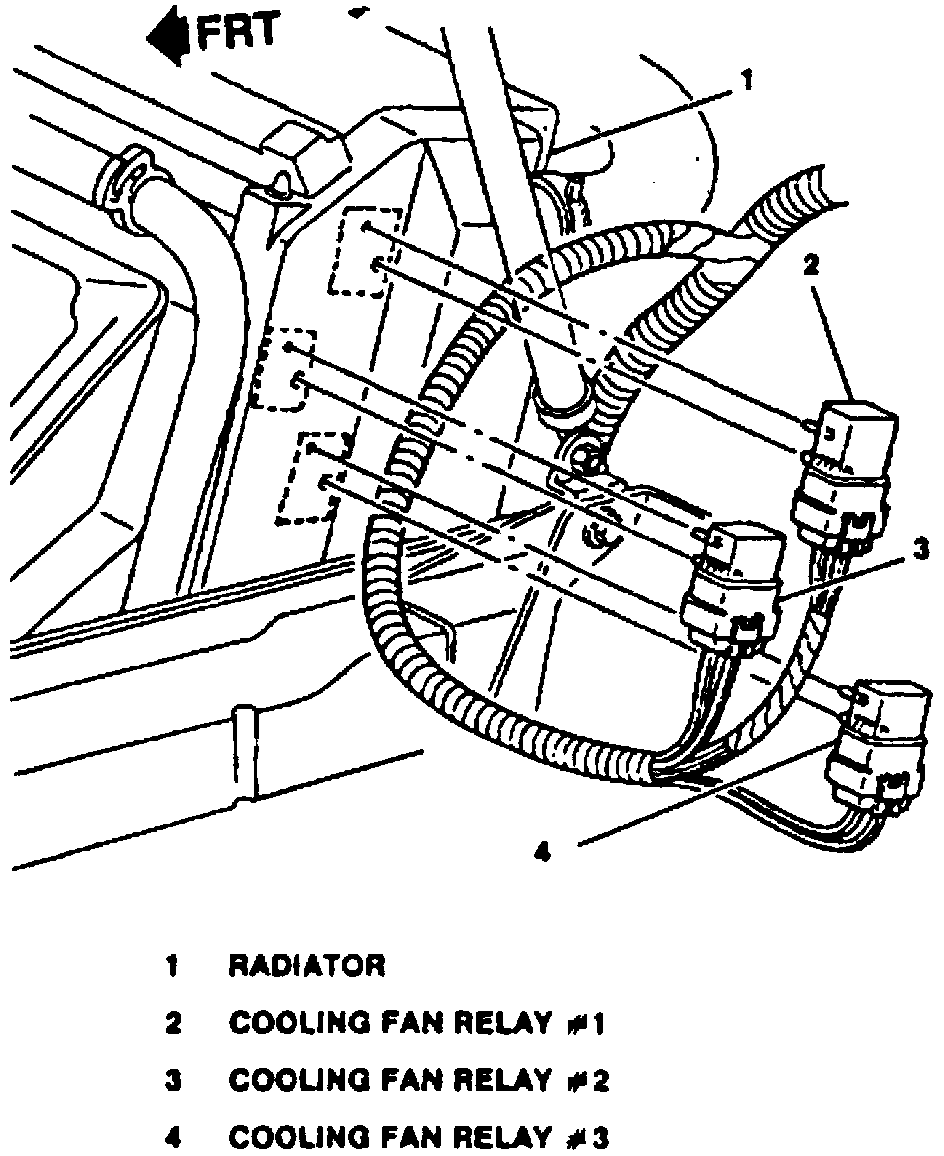

Cooling Fan Relay Location:

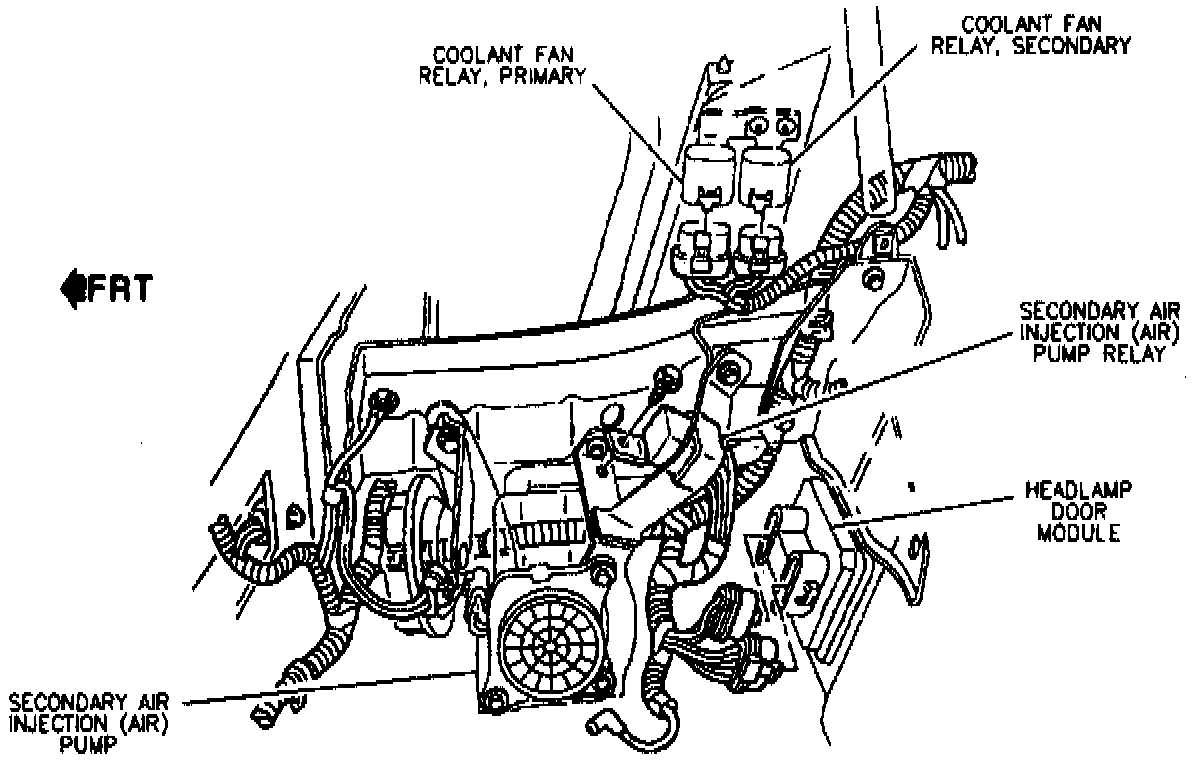

Fig 6. Cooling Fan Relay Location:






The cooling fan relays are located on the upper radiator support, forward of the left front wheelhouse, Figs. 5 and 6..
