Evaporative Emission Control Canister: Service and Repair

Right Rear Of Vehicle:

EVAP Canister Replacement

Removal Procedure

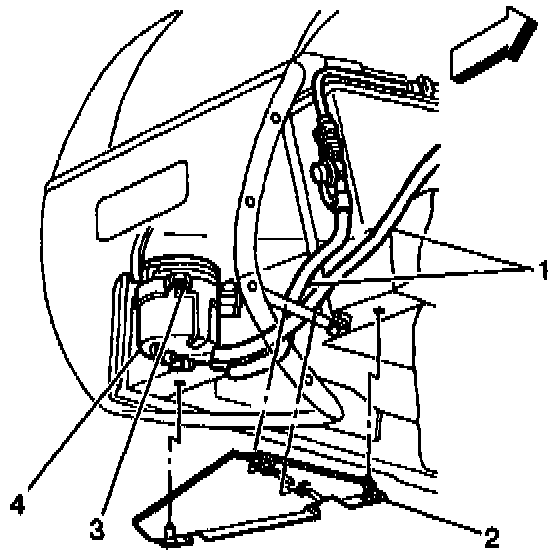

Notice: Numbers in text correspond to numbered components in image.

1. Raise the vehicle.

2. Remove the right rear tire.

3. Remove the access panel (2).

4. Disconnect the hoses from the canister (1).

5. Remove the canister (4) from the canister bracket (3).

6. Remove the canister (4) from the vehicle.

Installation Procedure

1. Install the new canister (4) to the vehicle.

2. Install the canister bracket (3).

3. Connect the hoses (1) to the canister.

4. Install the access panel (2).

5. Install the right rear tire.

6. Lower the vehicle.
