Air Injection Vacuum Bleed Valve: Service and Repair

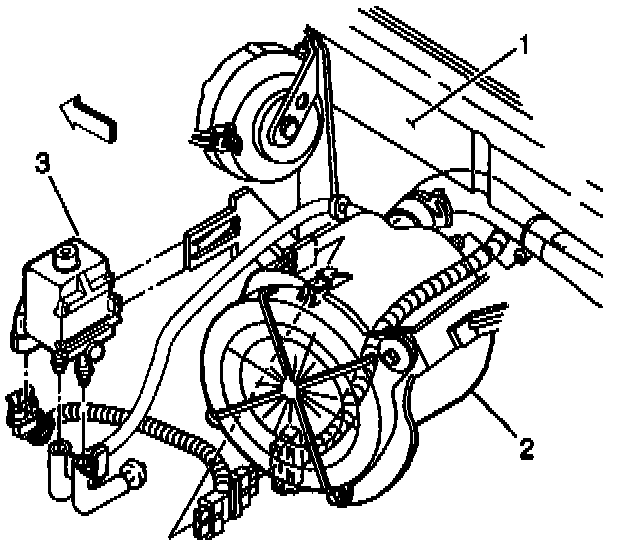

AIR Components:

AIR Vacuum Bleed Valve Replacement

Removal Procedure

1. Disconnect the electrical connector from the solenoid (3).
2. Disconnect the vacuum harness from the solenoid (3).
3. Remove the Solenoid (3).

Installation Procedure

1. Install the solenoid (3).
2. Connect the vacuum harness to the solenoid (3).
3. Connect the electrical connector to the solenoid (3).
