Automatic Transmission/Transaxle Controls

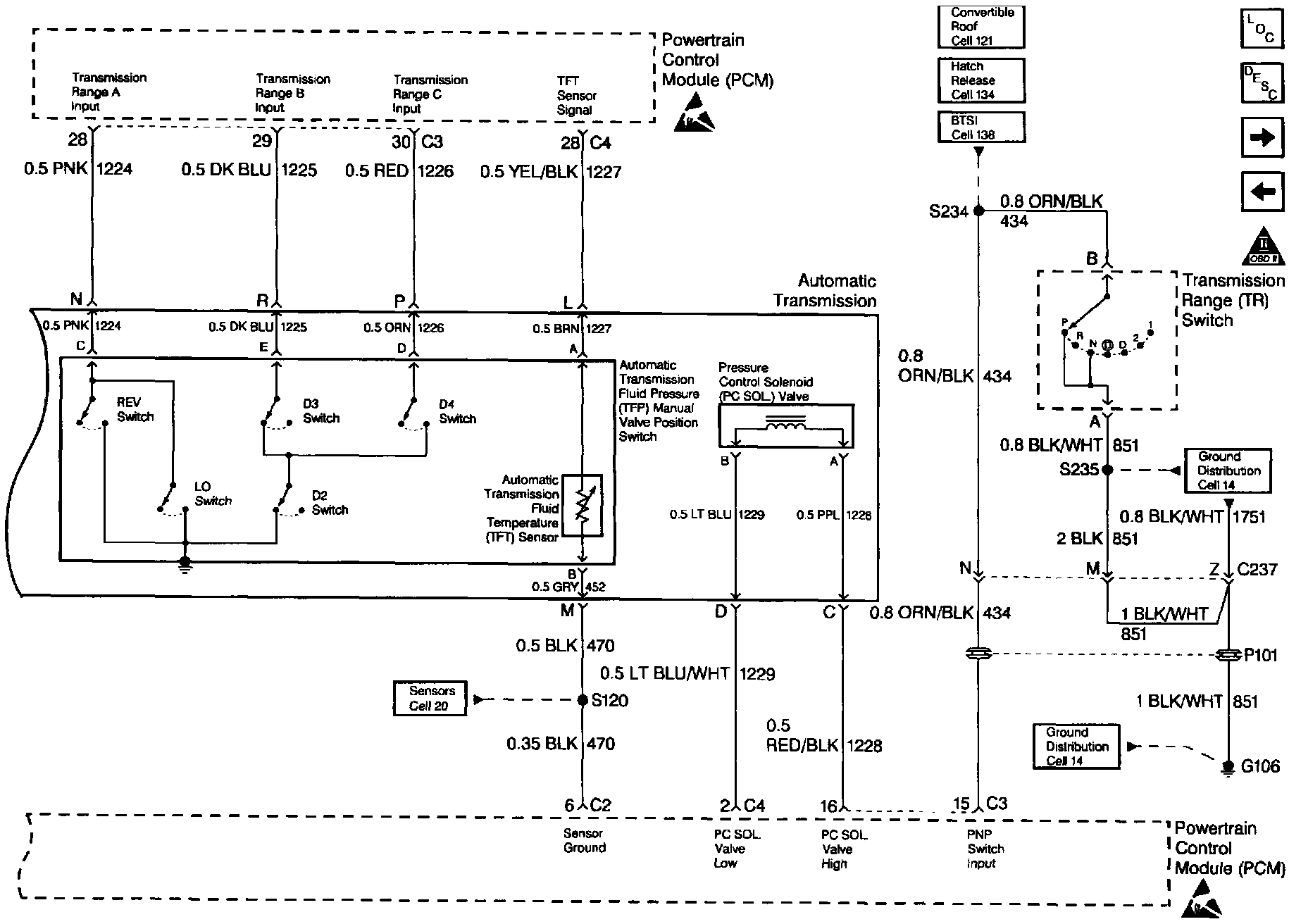

Transmission Controls Circuit - Part 1 Of 2:
Transmission Controls Circuit - Part 2 0f 2:
