Corvette V8-350 5.7L VIN 5 SFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Charts
>>
Air Delivery & Temperature Controls
>>
Chart 1 Air Flow From Outlets Is Incorrect
Chart 1 Air Flow From Outlets Is Incorrect

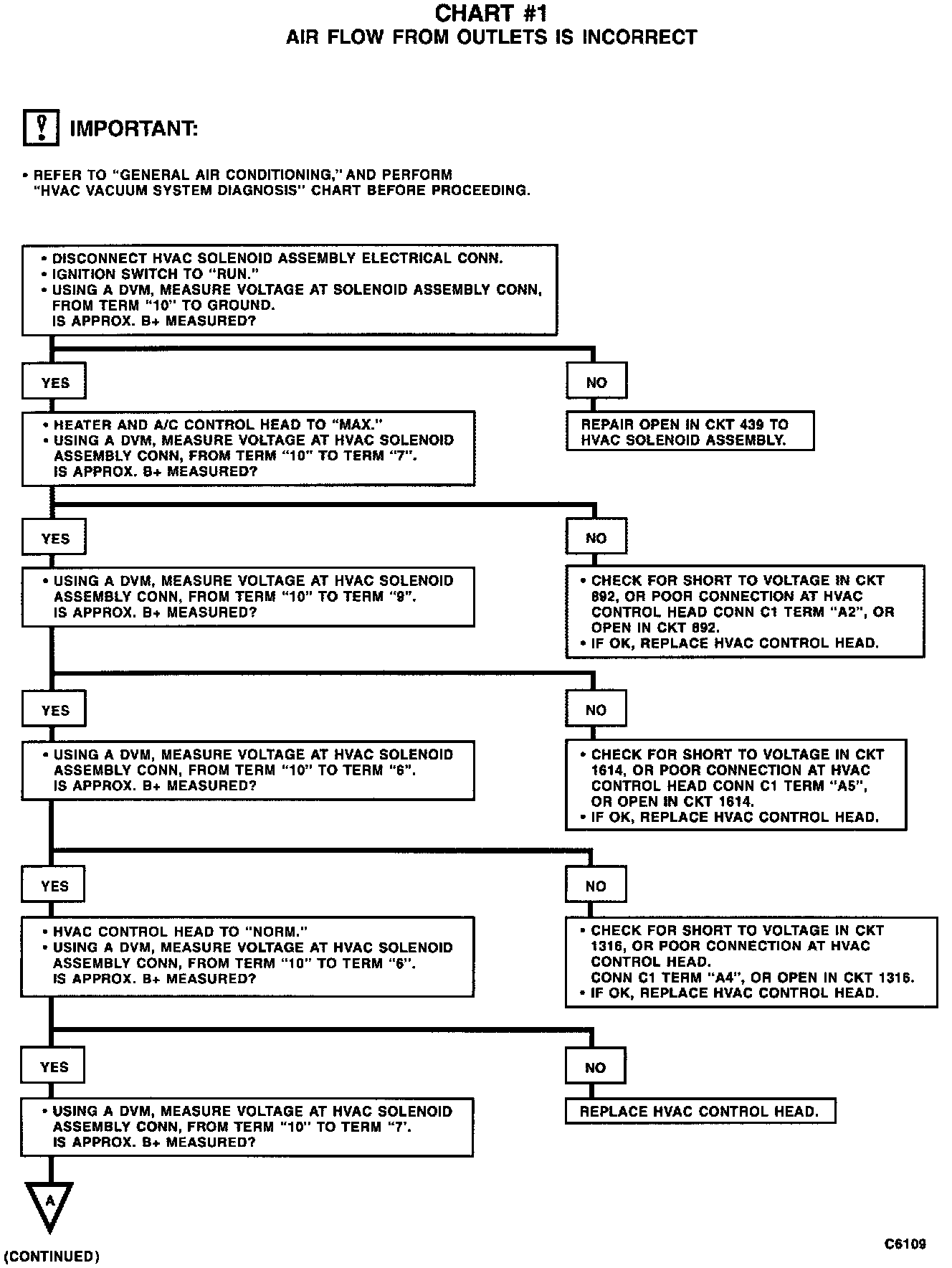

Chart #1 Air Flow From Outlets Is Incorrect (Part 1 Of 2):

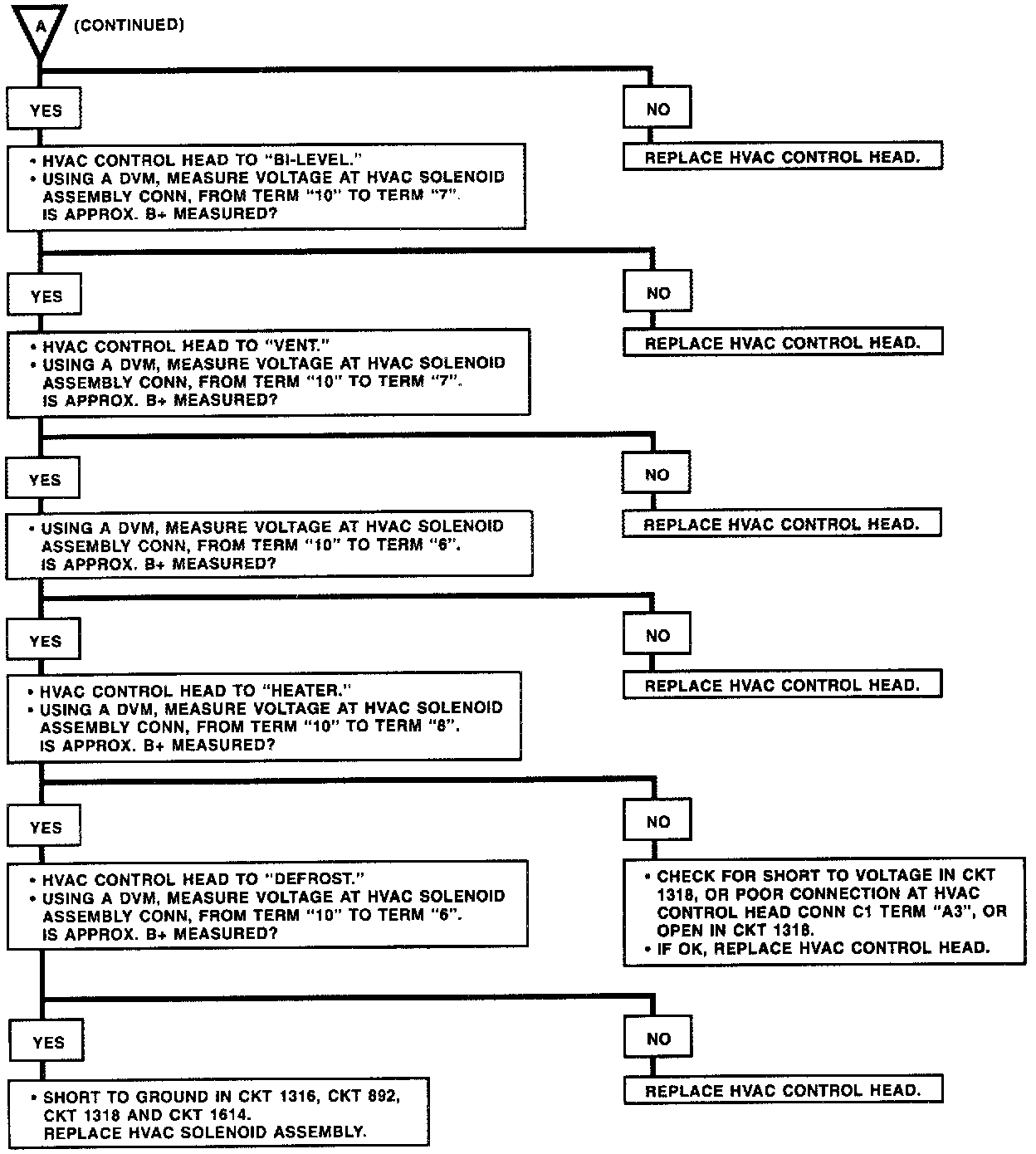

Chart #1 Air Flow From Outlets Is Incorrect (Part 2 Of 2):
