Rocker Arm

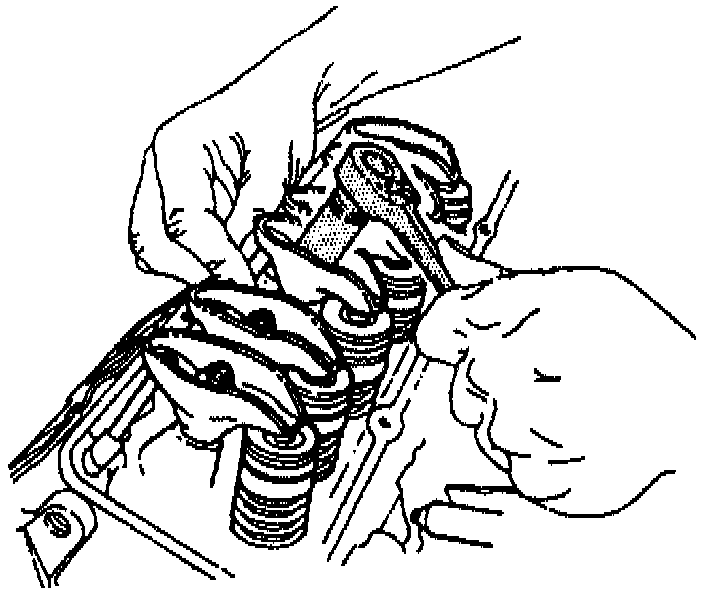

Fig. 7 Rocker Arm Adjustment:

Fig. 8 Rocker Arm Adjustment:

Tag rocker arms and components Figs. 7 and 8, during removal so they can be installed in the same positions. When replacing rocker arms or rocker arm balls, bearing surfaces of rocker arms and balls should be coated with prelube 1052365 or equivalent.
