Home
>>
Chevrolet
>>
1996
>>
Corvette V8-350 5.7L VIN 5 SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Shift Interlock, A/T
Shift Interlock, A/T

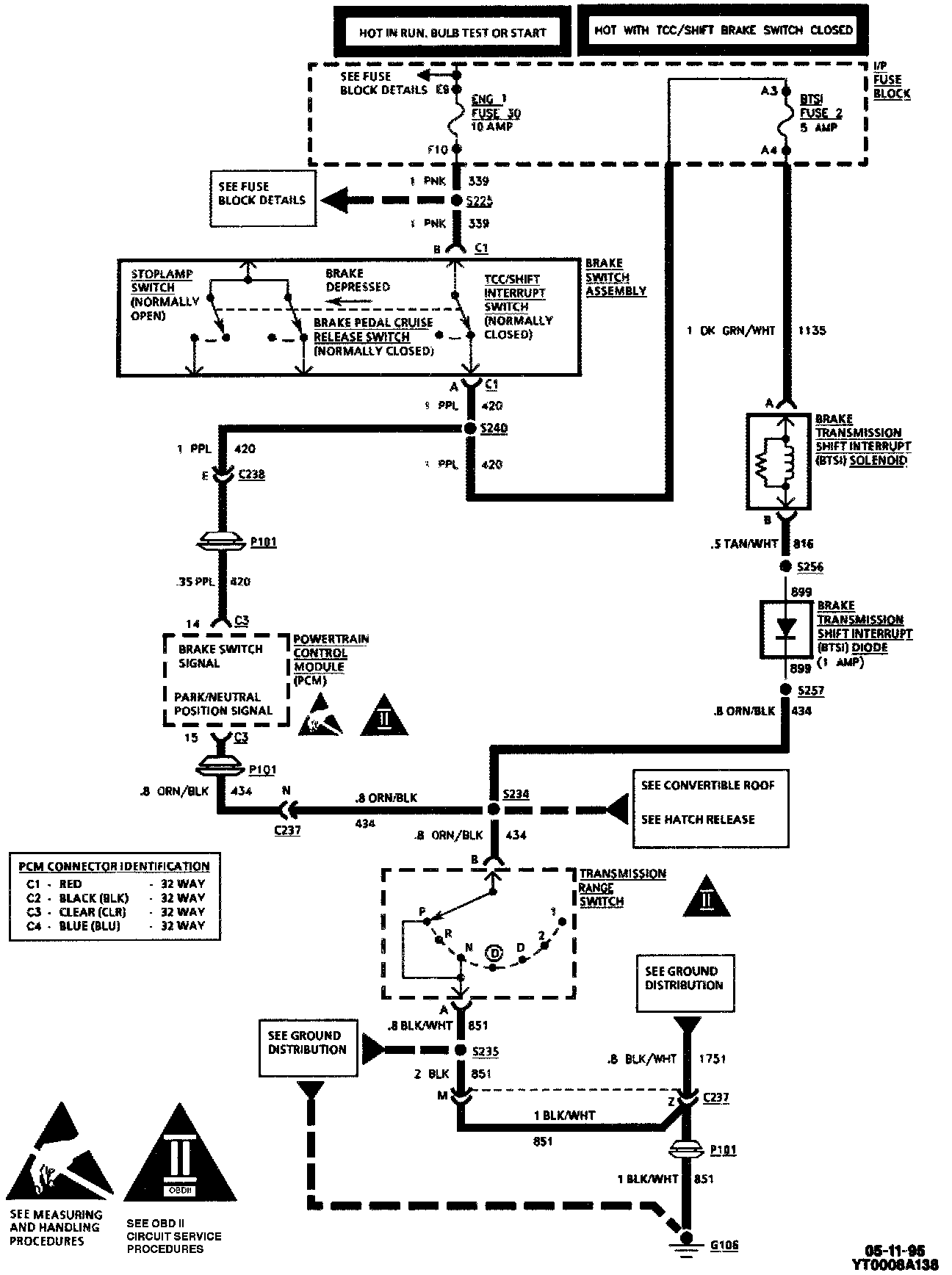

Brake Transmission Shift Interrupt: Automatic Transmission:
