Corvette V8-350 5.7L VIN 5 SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Transmission Controls
>>
PCM Power and TCS Active Indicator

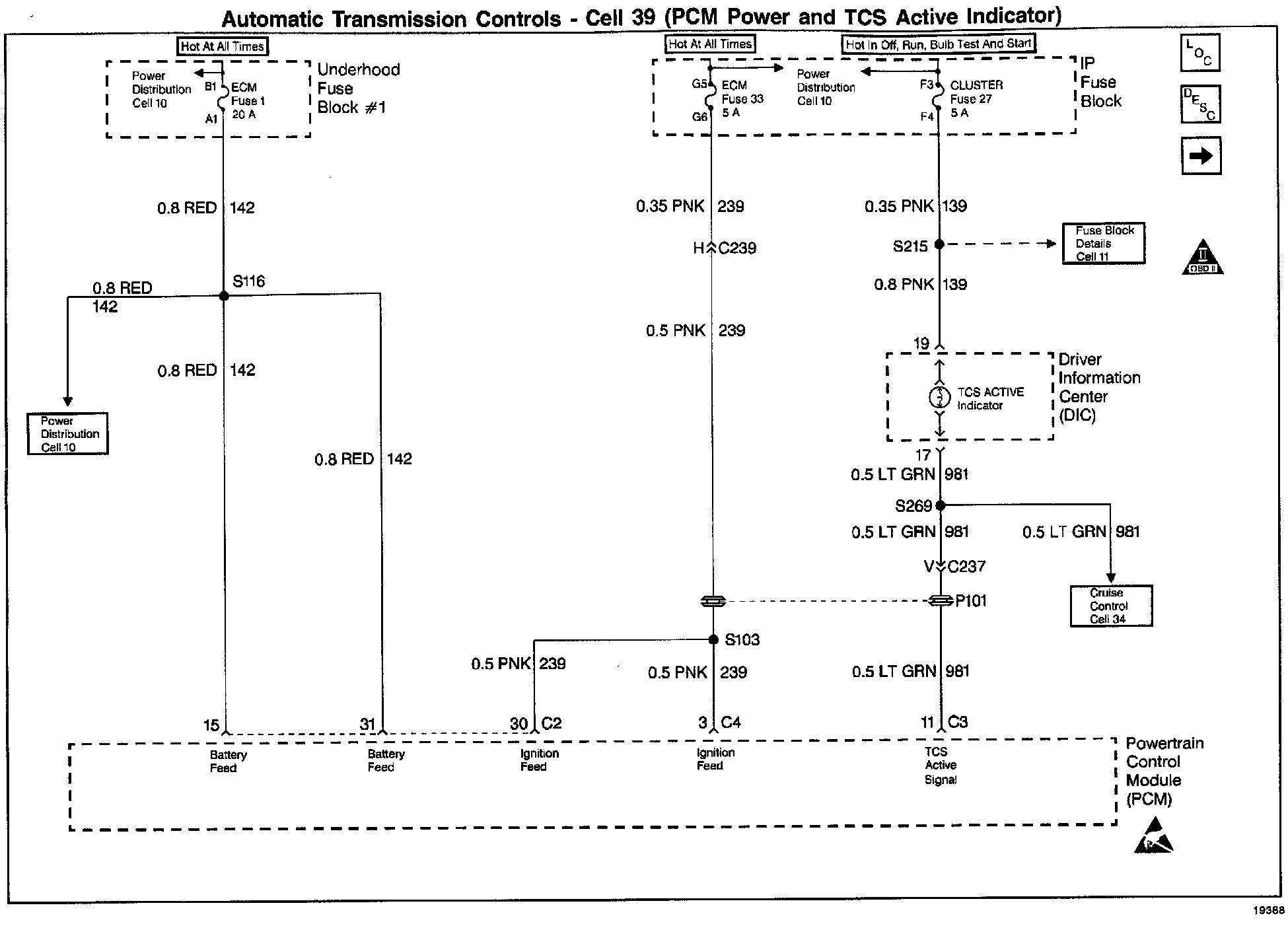

PCM Power and TCS Active Indicator
Wiring Diagram:
