Home
>>
Chevrolet
>>
1996
>>
Corvette V8-350 5.7L VIN 5 SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Data Sensors & Controlled Devices
Data Sensors & Controlled Devices

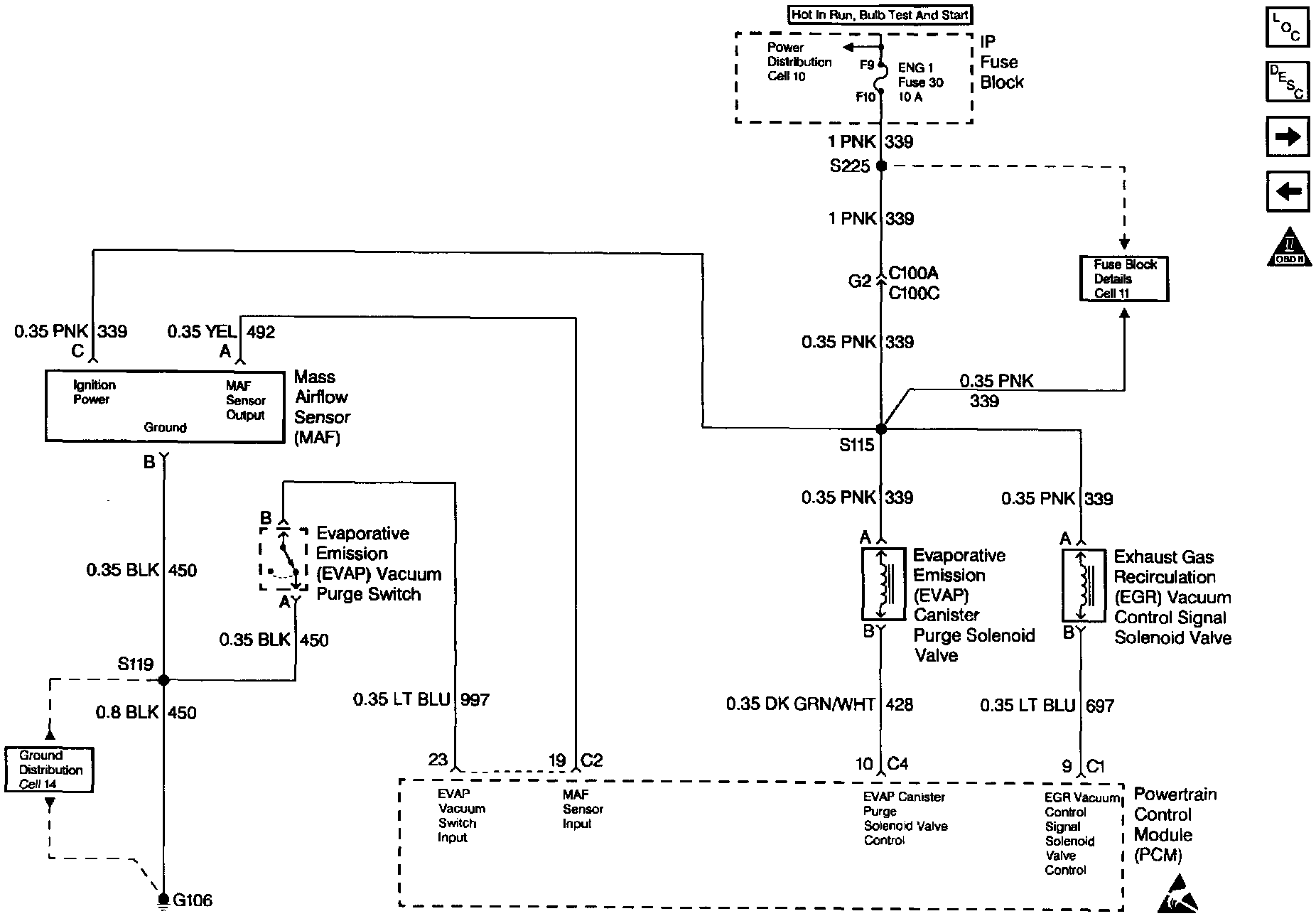

Engine Data Sensors And Controlled Devices Circuit:
