Keyless Entry

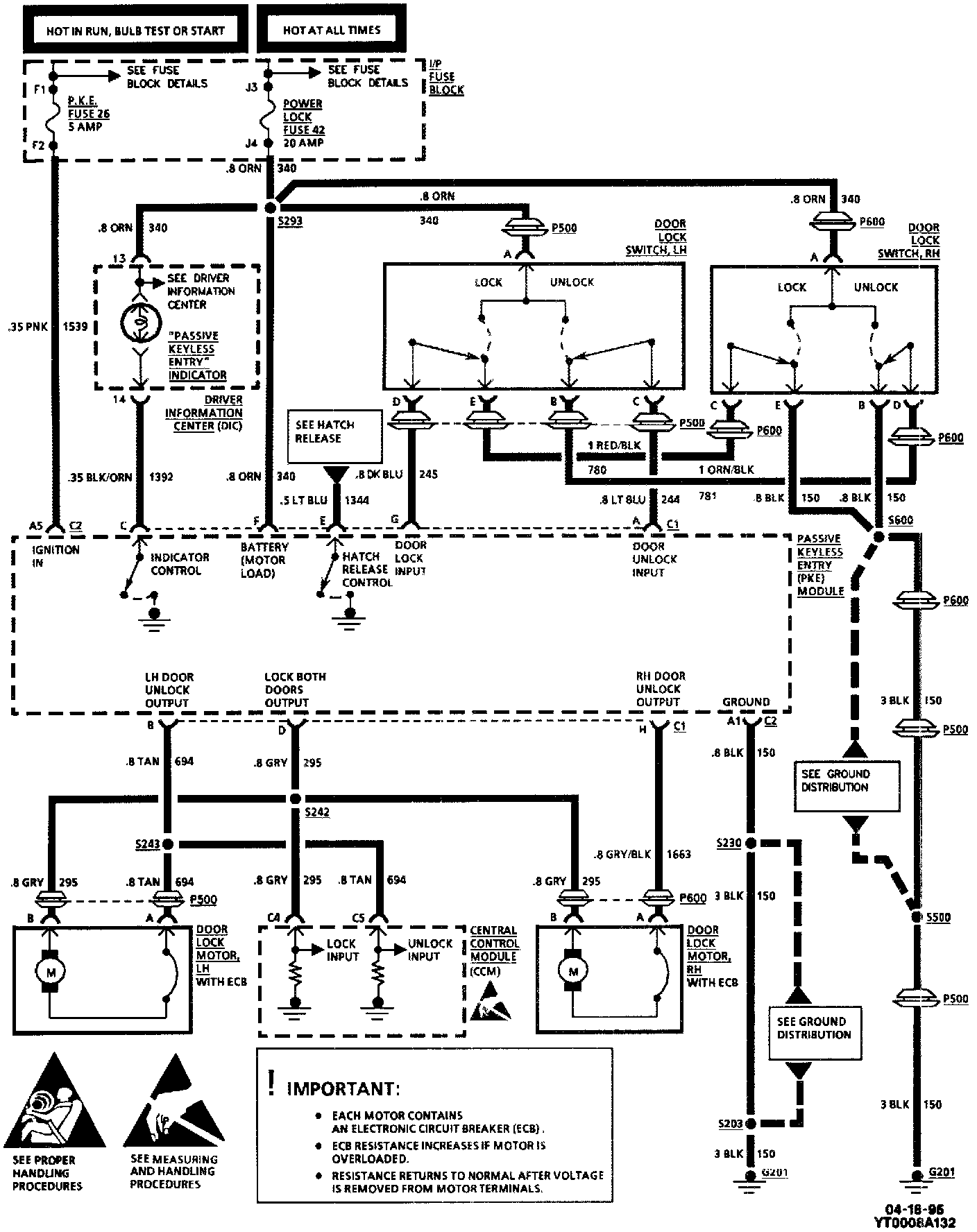

Passive Keyless Entry/Power Door Locks (Part 1 Of 4):

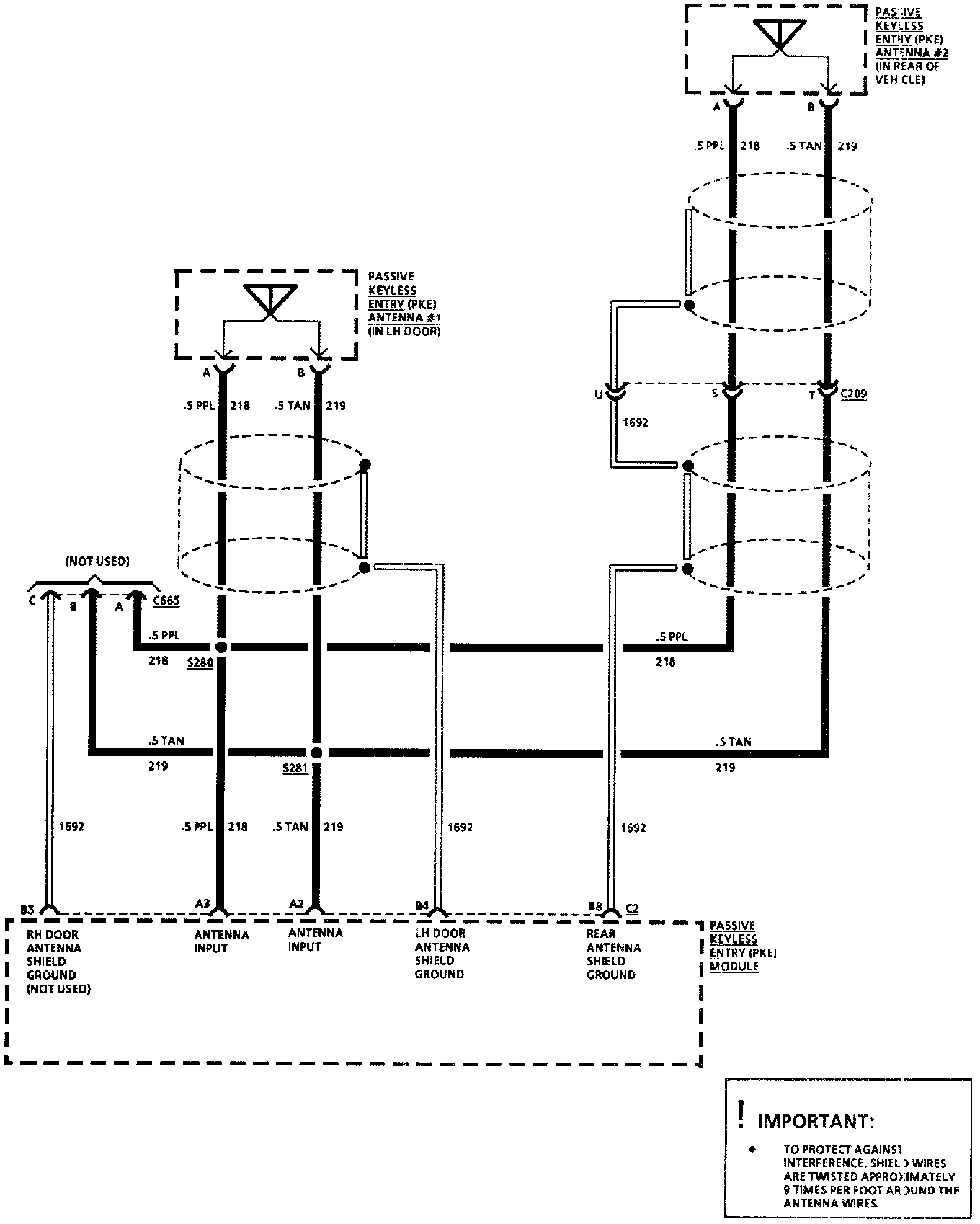

Passive Keyless Entry/Power Door Locks (Part 2 Of 4):

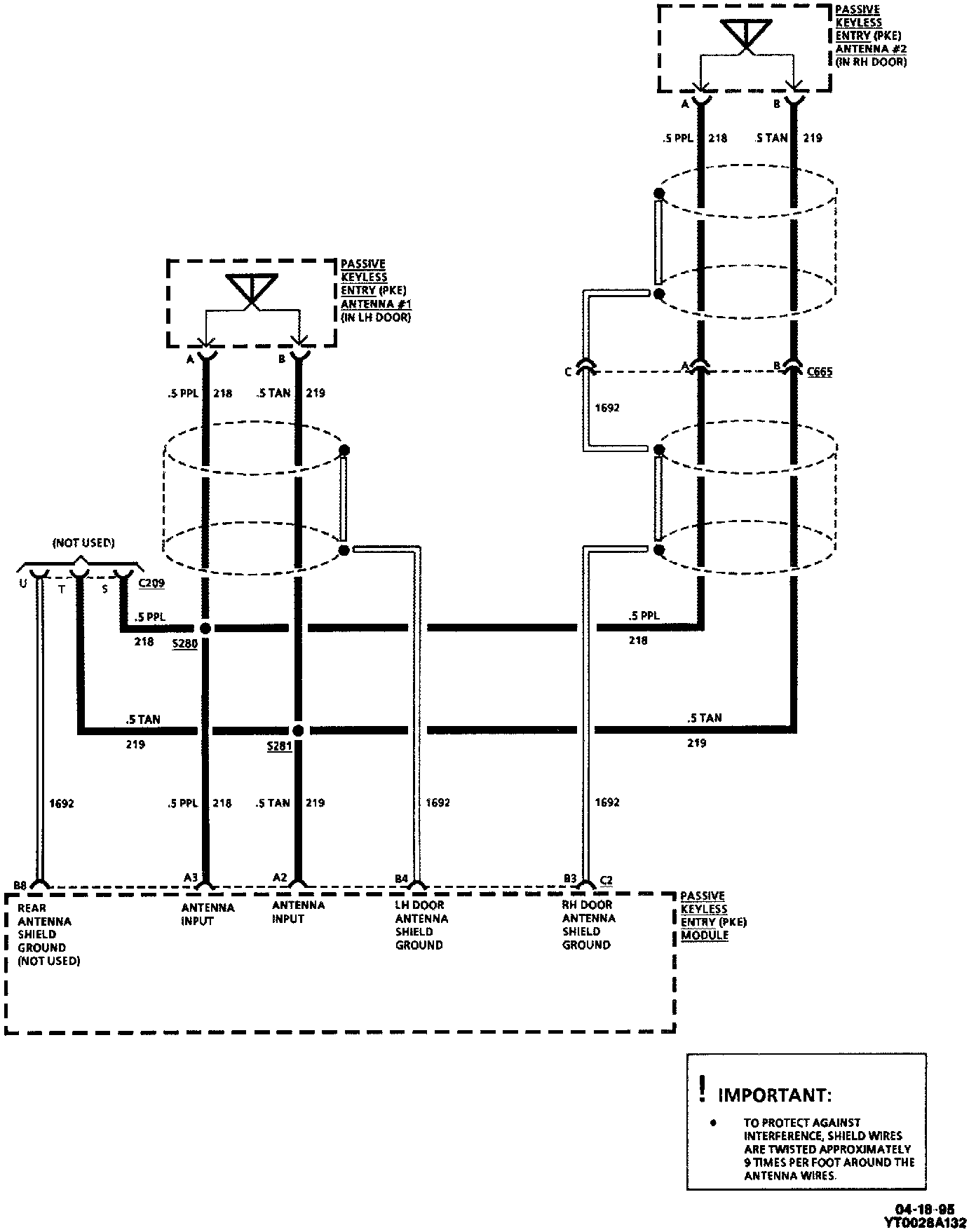

Passive Keyless Entry/Power Door Locks (Part 3 Of 4):

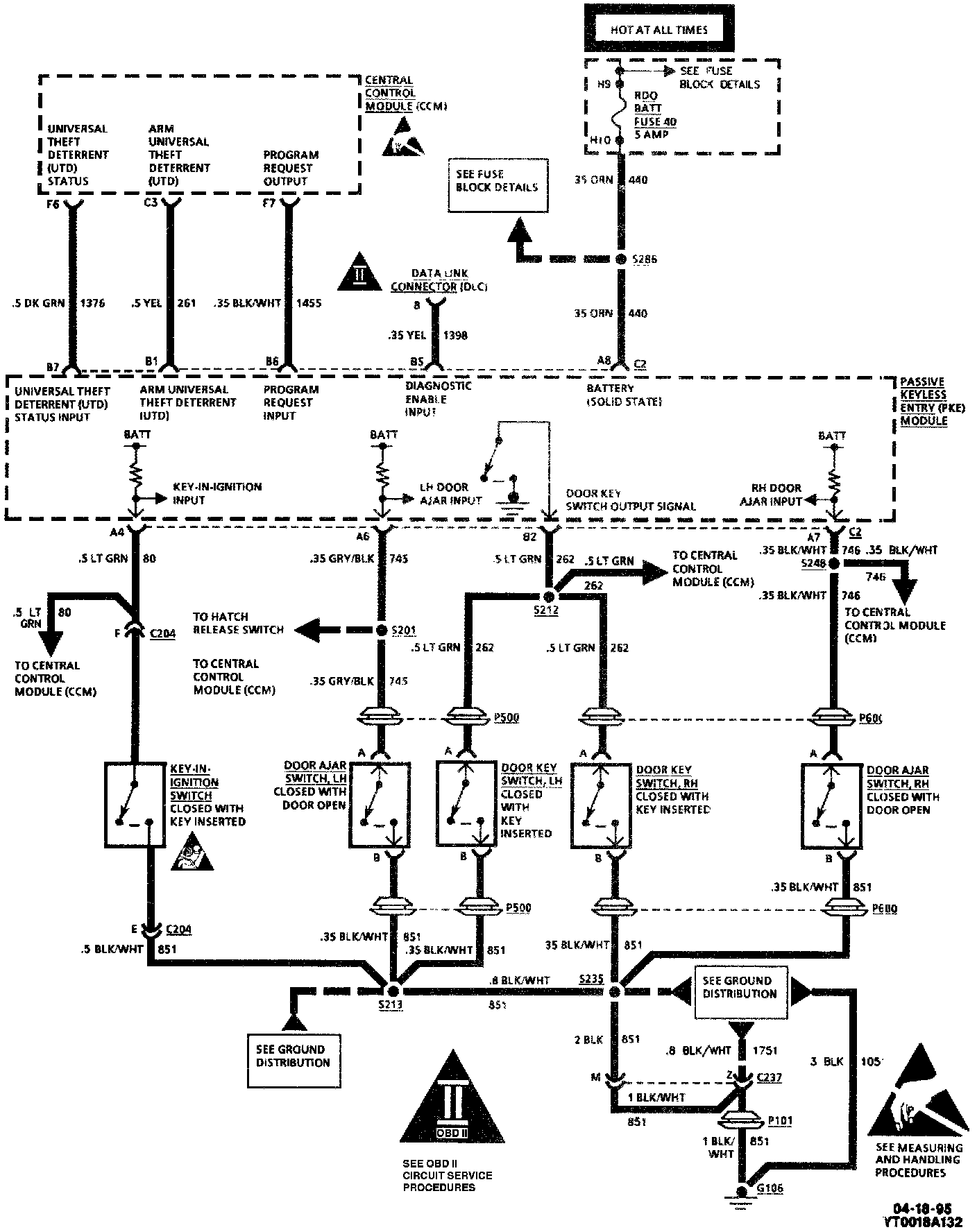

Passive Keyless Entry/Power Door Locks (Part 4 Of 4):
