Radio/Stereo

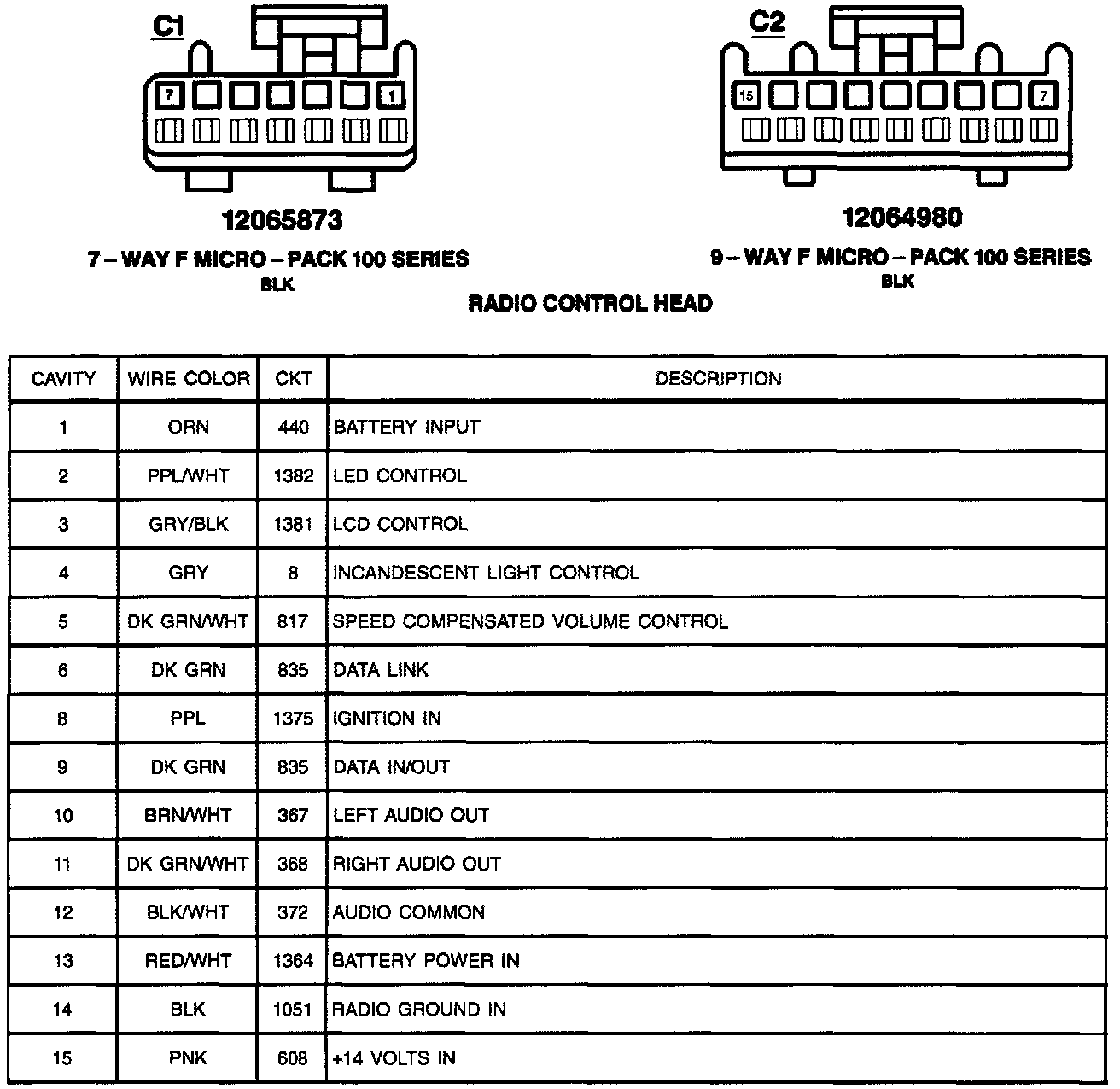

Radio Control Head: C1, C2:

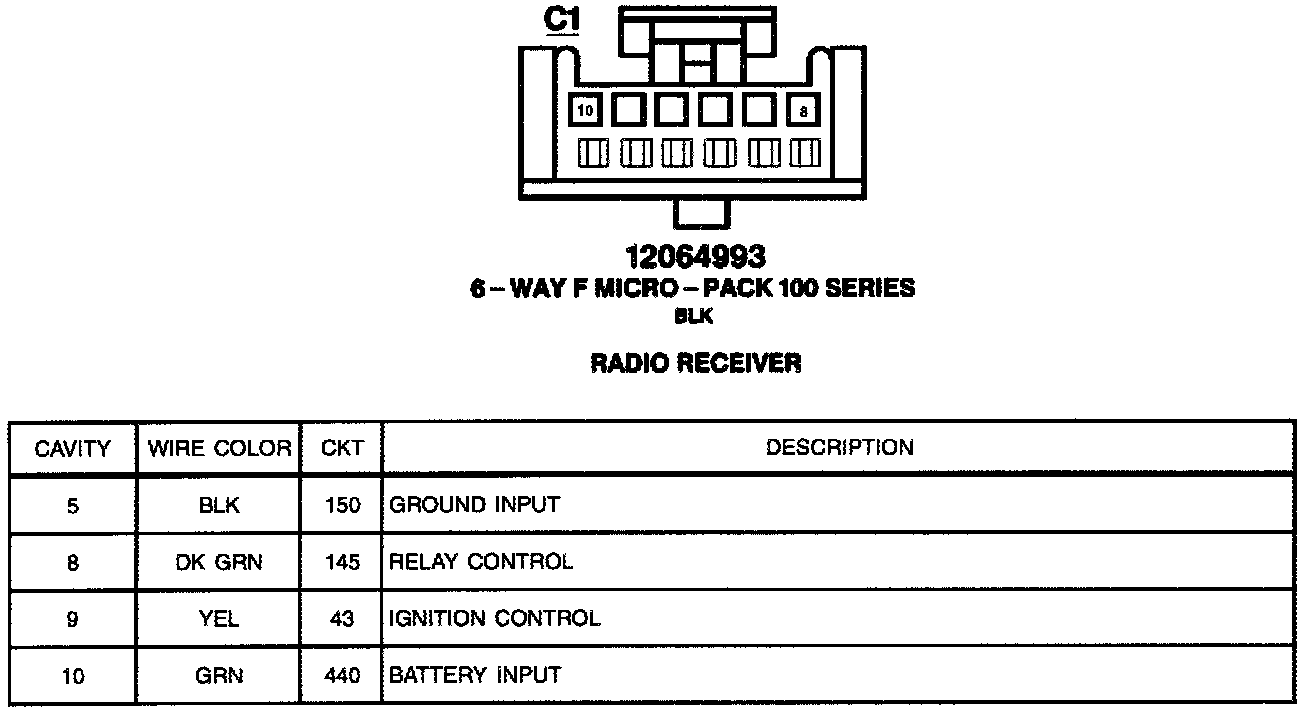

Radio Receiver: C1:

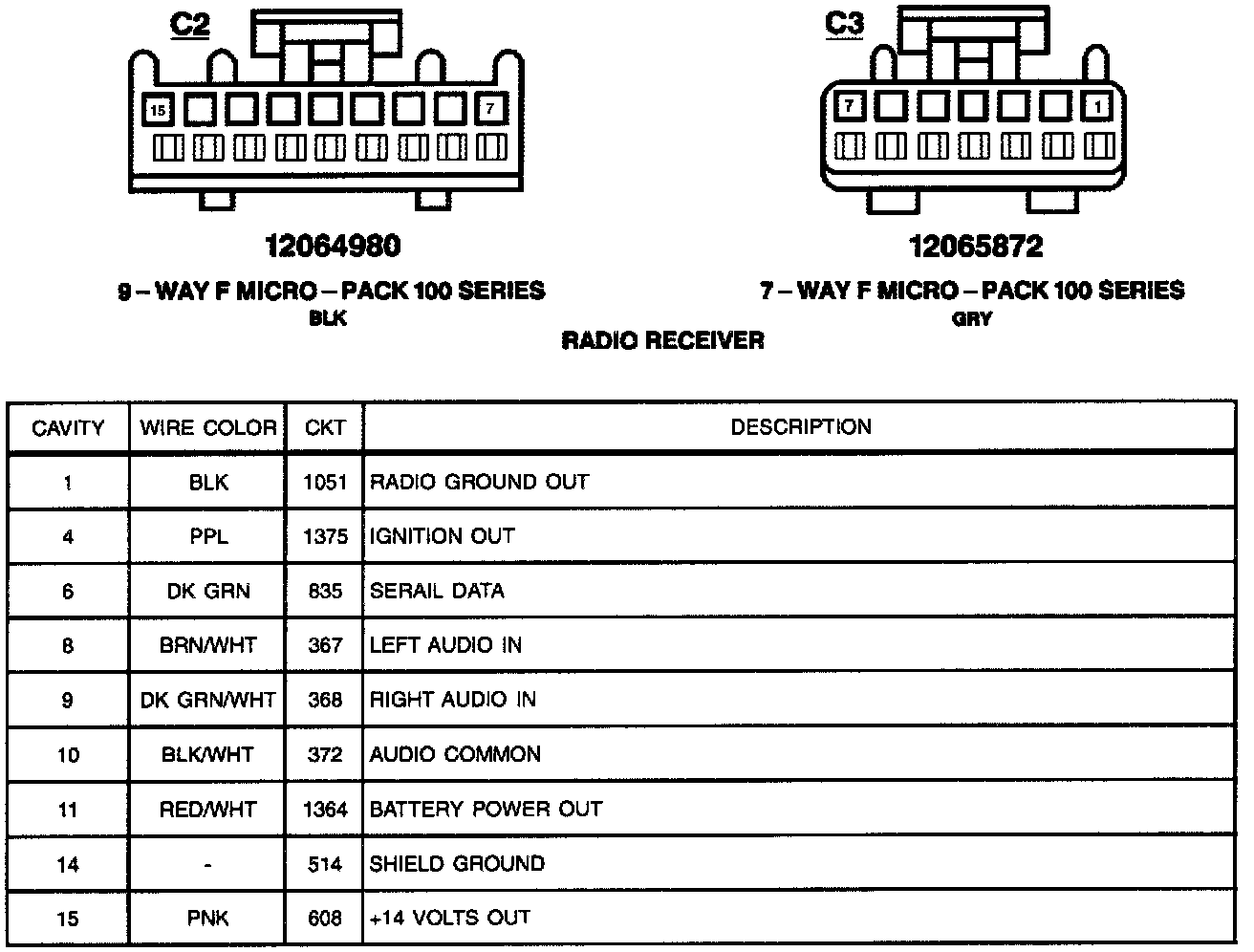

Radio Receiver: C2, C3:

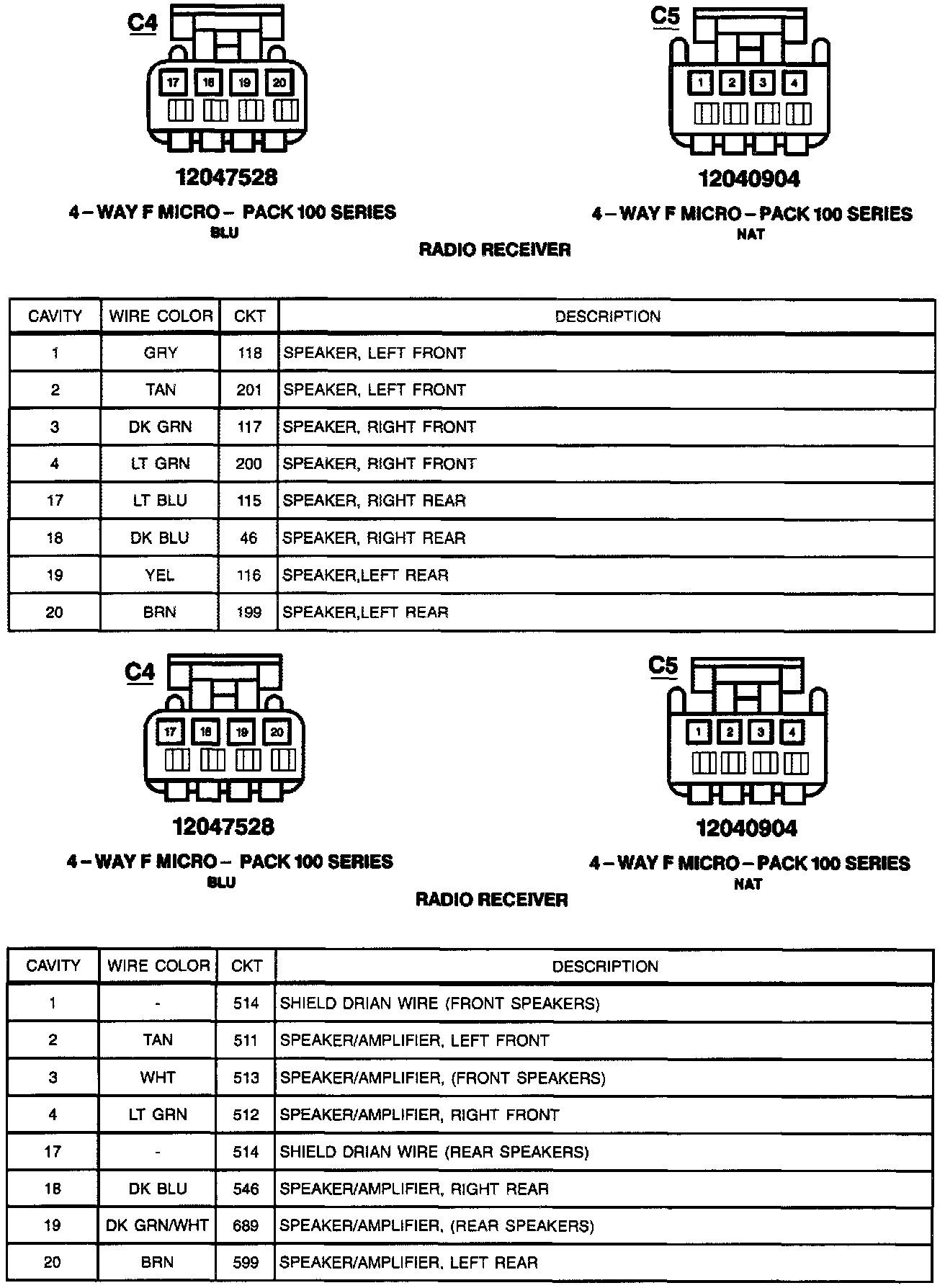

Radio Receiver: C4, C5:

Bose Relay, Defogger Relay, Delayed Accessory Bus (DAB) Relay, Hatch Release Relay & Theft Deterrent Relay:
