Home >> Chevrolet >> 1996 >> Corvette V8-350 5.7L VIN 5 SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine >> I/P Harness to Engine Harness

I/P Harness to Engine Harness

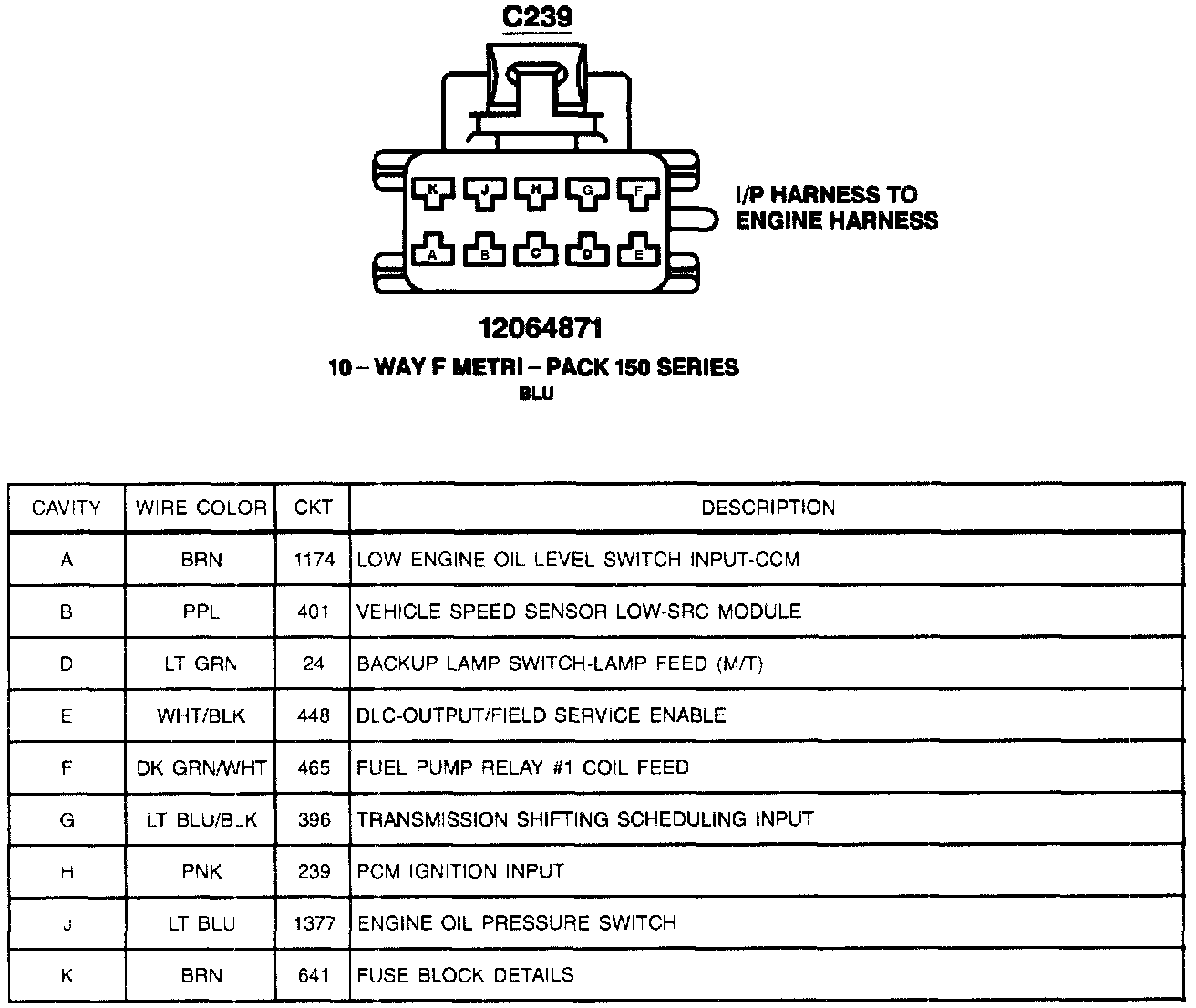

C239: Engine Harness To I/P Harness:
