Home
>>
Chevrolet
>>
1996
>>
Corvette V8-350 5.7L VIN 5 SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>

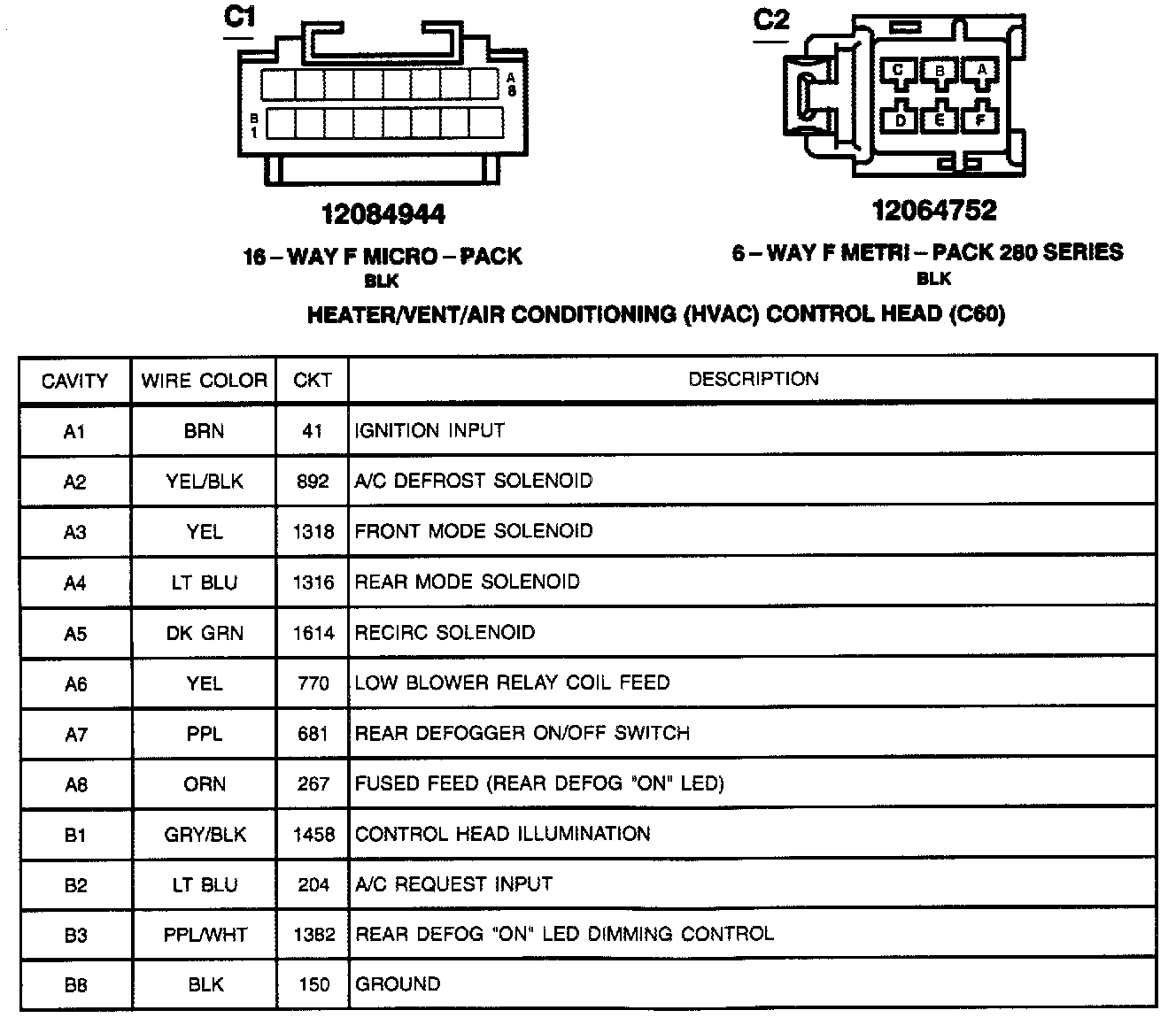

Heater/Vent/Air Conditioning (HVAC) Control Head C1, C2
Heater/Vent/Air Conditioning (HVAC) Control Head C1, C2
HVAC Control Head: Manual:
