Home >> Chevrolet >> 1996 >> Corvette V8-350 5.7L VIN 5 SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body and Frame >> Seats >> Power Seat Switch >> Seat Select Switch C1, C2

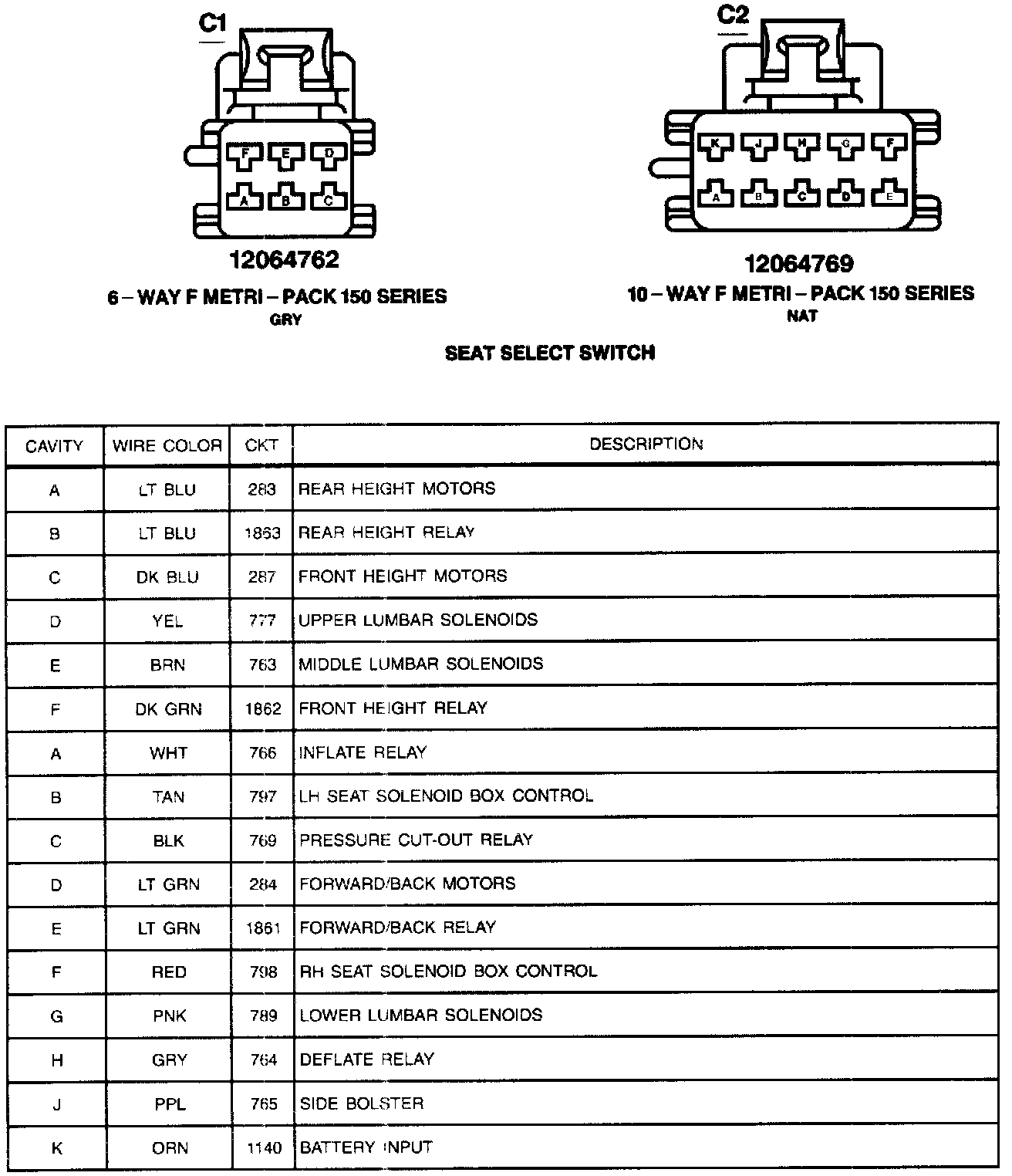

Seat Select Switch C1, C2

Seat Select Switch: C1, C2:
