Chart J ASR Off Indicator Inoperative

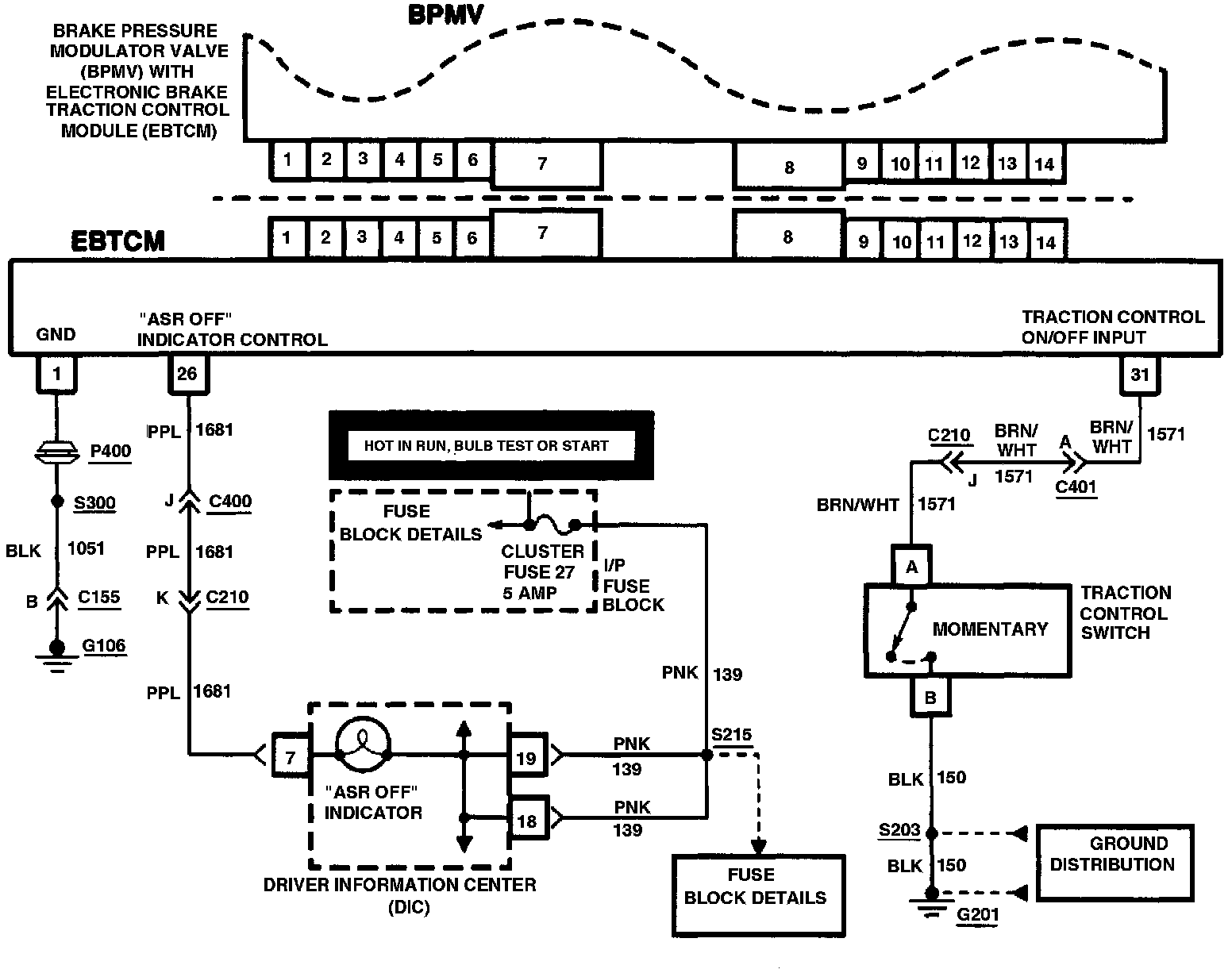

Fig. 26 Chart J: ASR Off Indicator Inoperative.:

Chart J "ASR OFF" Indicator Inoperative:

CHART TEST DESCRIPTION
Number(s) below refer to circled number(s) on the diagnostic chart.
1. Confirms that a malfunction condition exists.
2. Determines whether the malfunction is due to an EBTCM circuit malfunction or an open in the DIC printed circuit.
3. Checks the integrity of the indicator bulb.
4. Checks for an indicator low side circuit open.
5. Checks for an indicator low side circuit short to voltage.
