Chart D Service ASR Indicator Inoperative

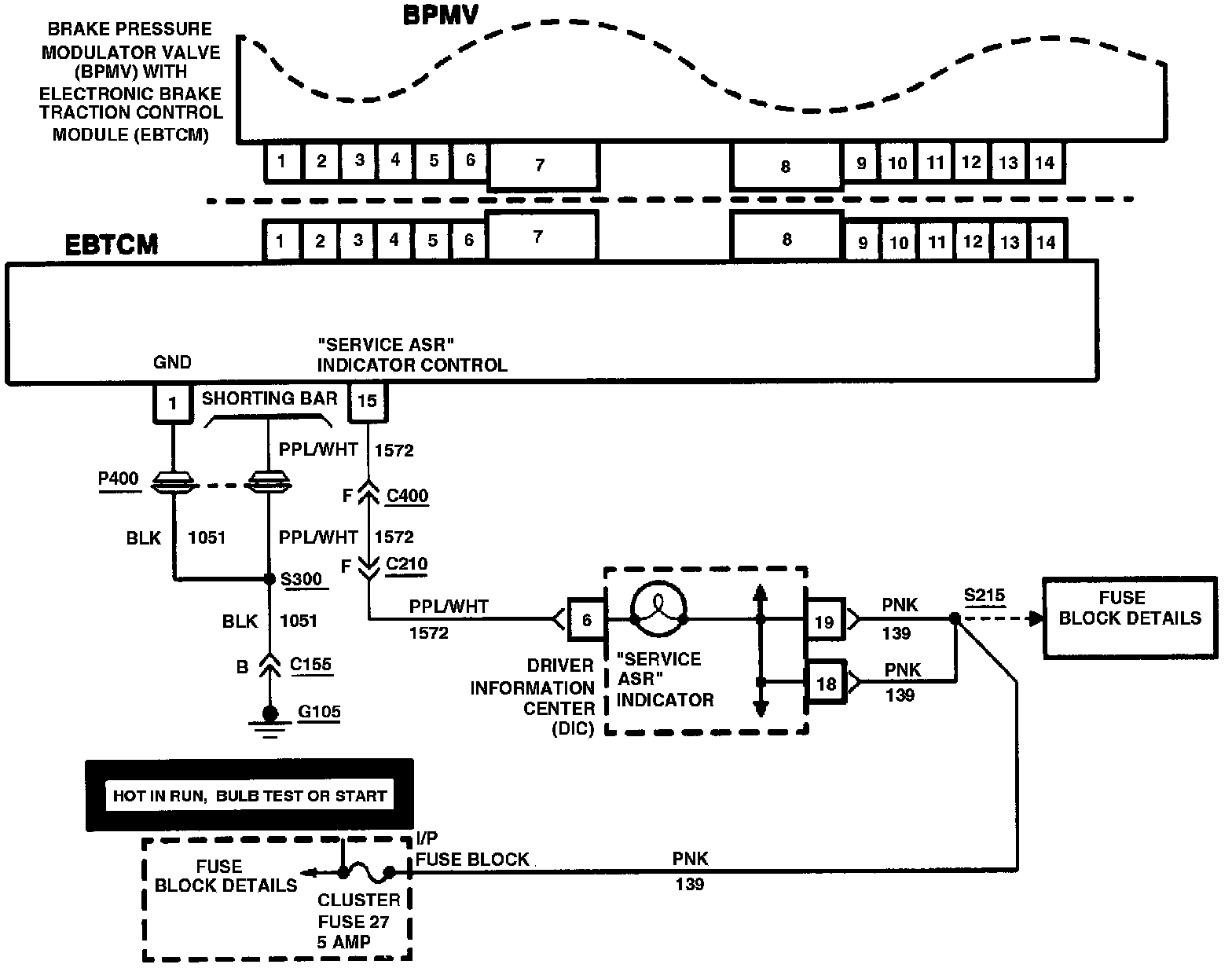

Fig. 14 Chart D: Service ASR Indicator Inoperative.:

Chart D "SERVICE ASR" Indicator Inoperative:

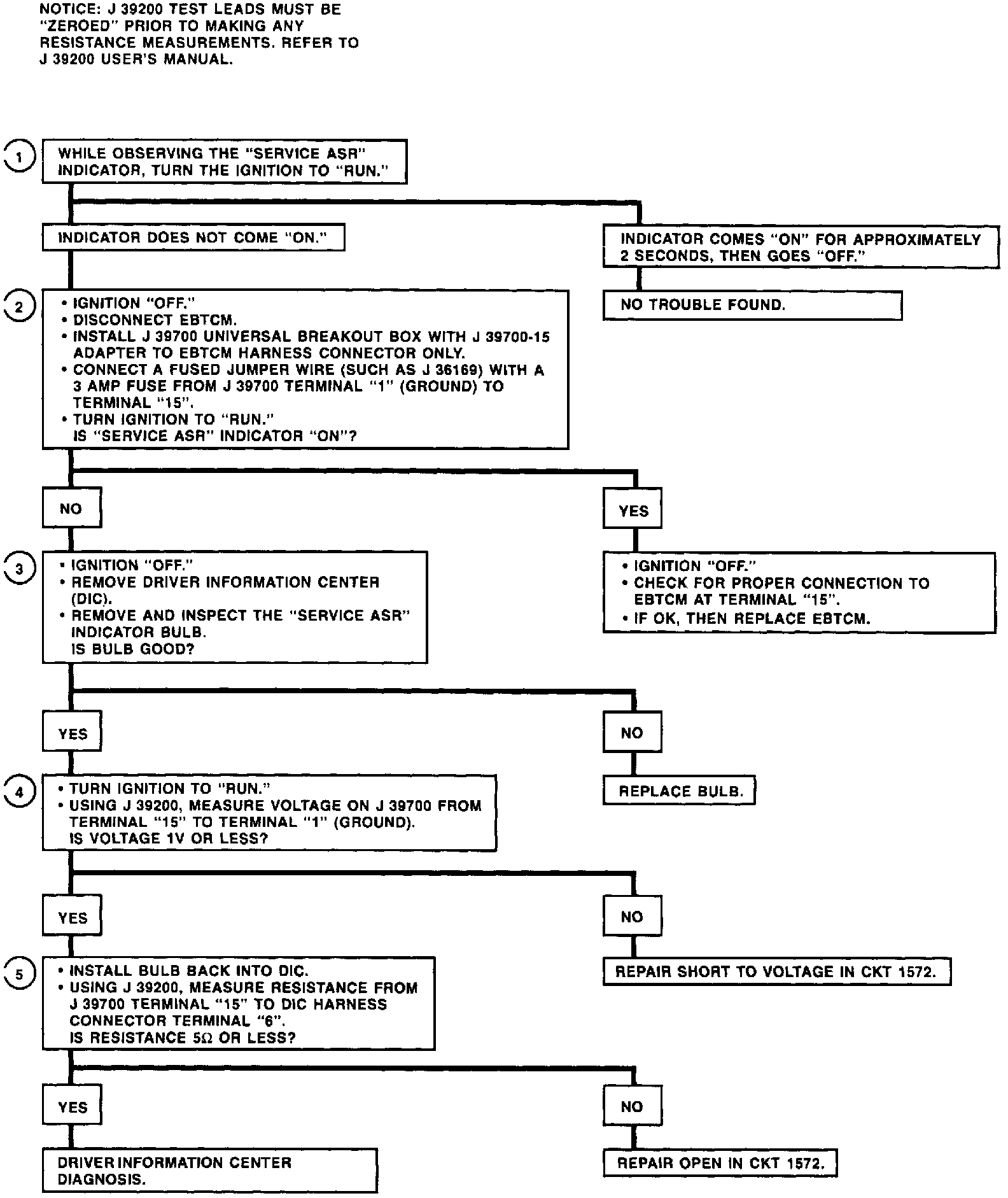

CHART TEST DESCRIPTION
Number(s) below refer to circled number(s) on the diagnostic chart.
1. Confirms that a malfunction condition exists.
2. Checks to see if the indicator can be turned "ON" manually.
3. Checks the integrity of the indicator bulb.
4. Checks for an indicator low side circuit short to voltage.
5. Checks for an indicator low side circuit open.
