Chart B Service ABS Indic Inop/Flickering W/IGN Switch on

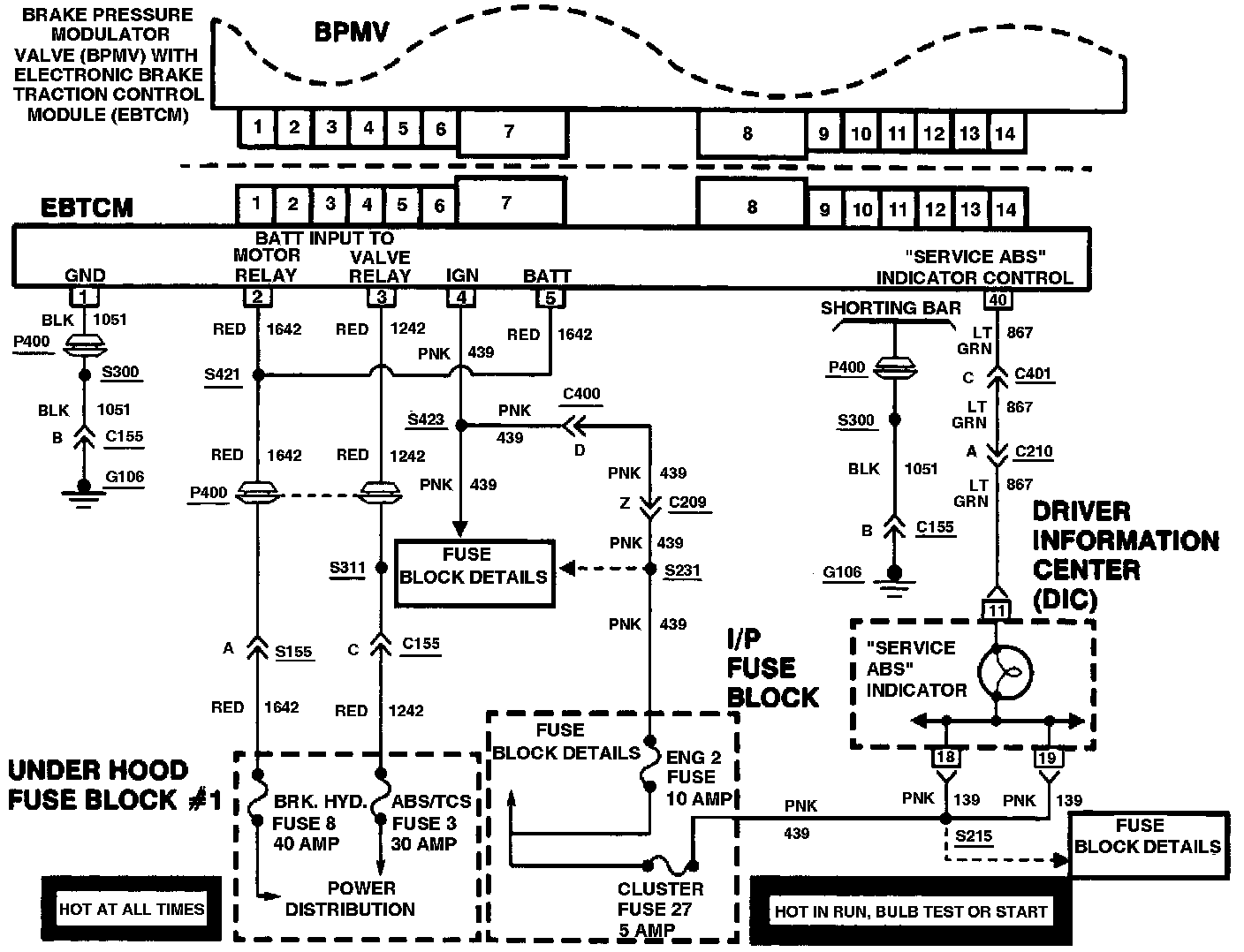

Fig. 10 Chart B: Service ABS Indicator Inoperative Or Flickering W/Ignition Switch In On Position.:

Chart B "SERVICE ABS" Indicator Inoperative Or Flickers Briefly At Ignition "ON":

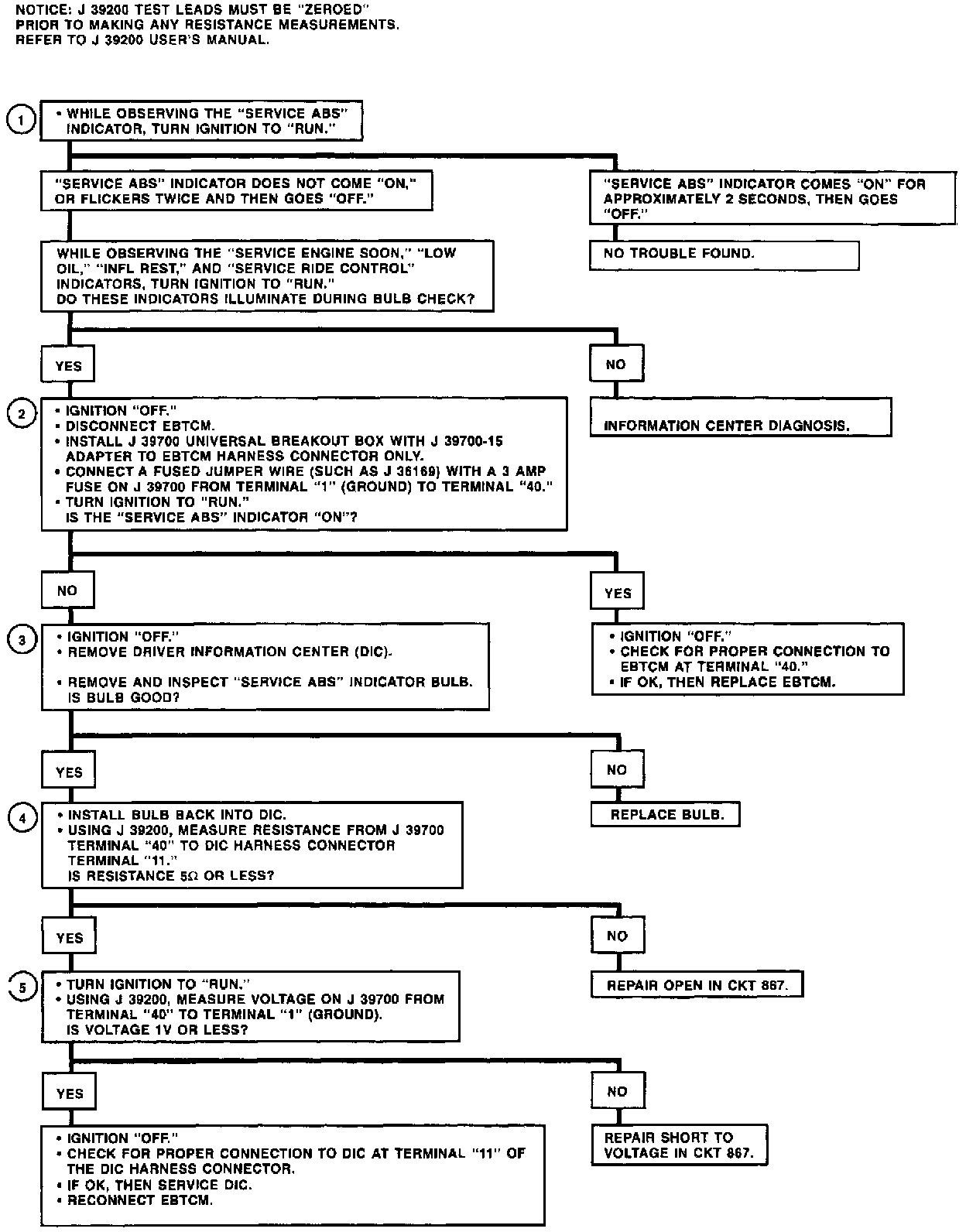

CHART TEST DESCRIPTION
Number(s) below refer to circled number(s) on the diagnostic chart.
1. Confirms that a malfunction condition exists.
2. Check to see if the indicator can be turned "ON" manually.
3. Checks the integrity of the indicator bulb.
4. Checks for an indicator low side circuit open.
5. Checks for an indicator low side circuit short to voltage.
