Corvette V8-350 5.7L VIN 5 SFI
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Chart 12
Chart 12

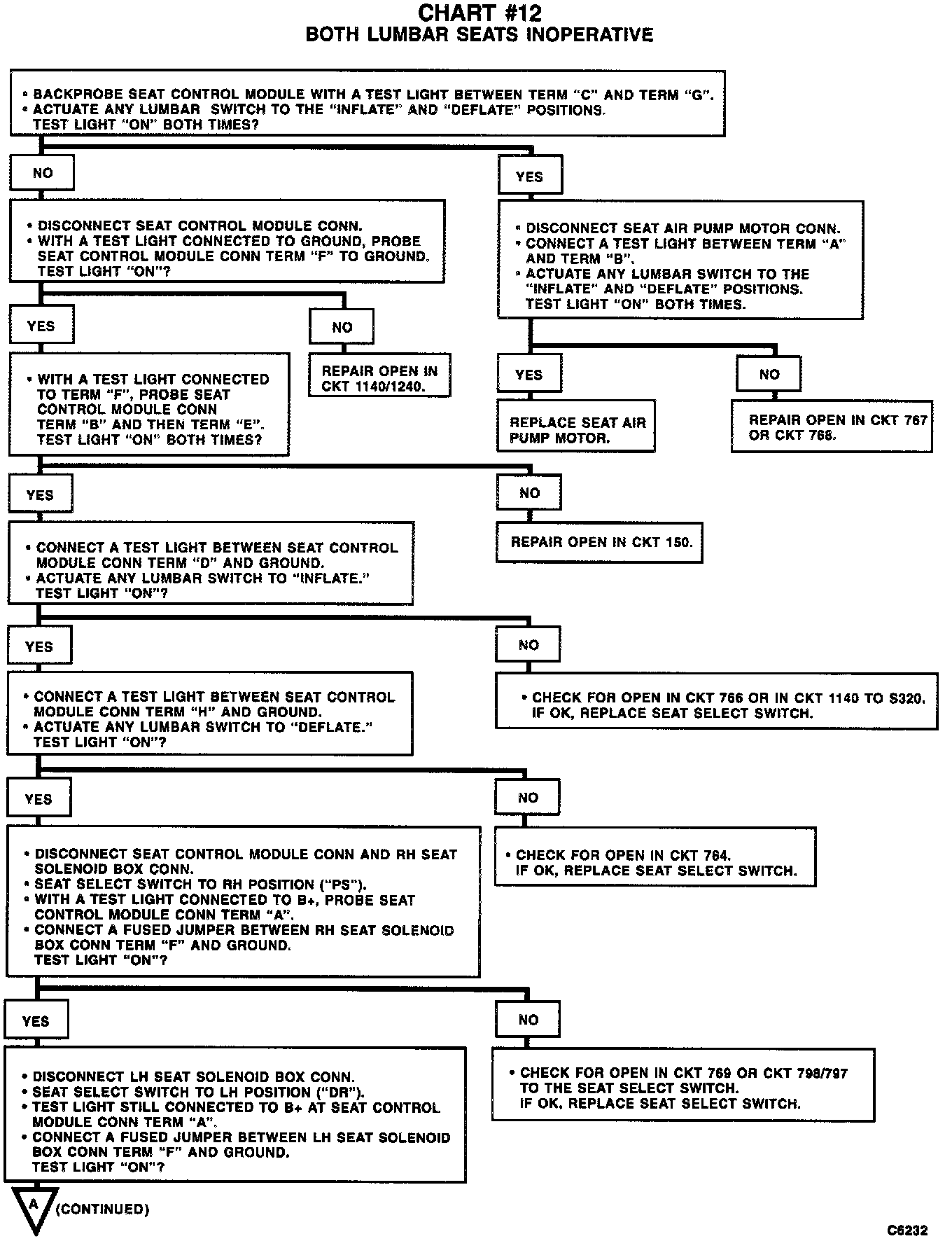

Chart #12 Both Lumbar Seats Inoperative (Part 1 Of 2):

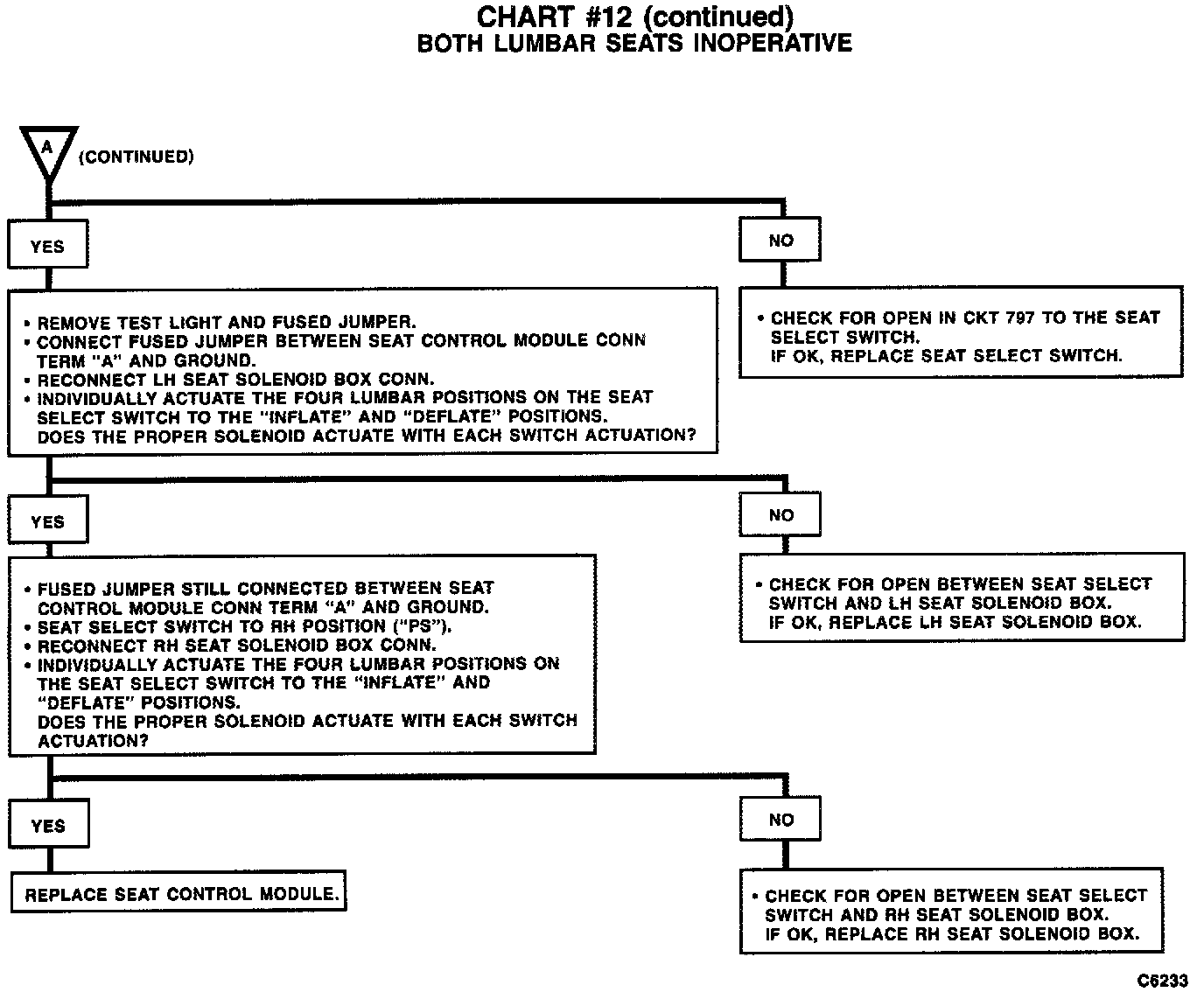

Chart #12 Both Lumbar Seats Inoperative (Part 2 Of 2):
