Chevrolet
>>
1996
>>
Corvette V8-350 5.7L VIN 5 SFI
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Connector Views
Connector Views

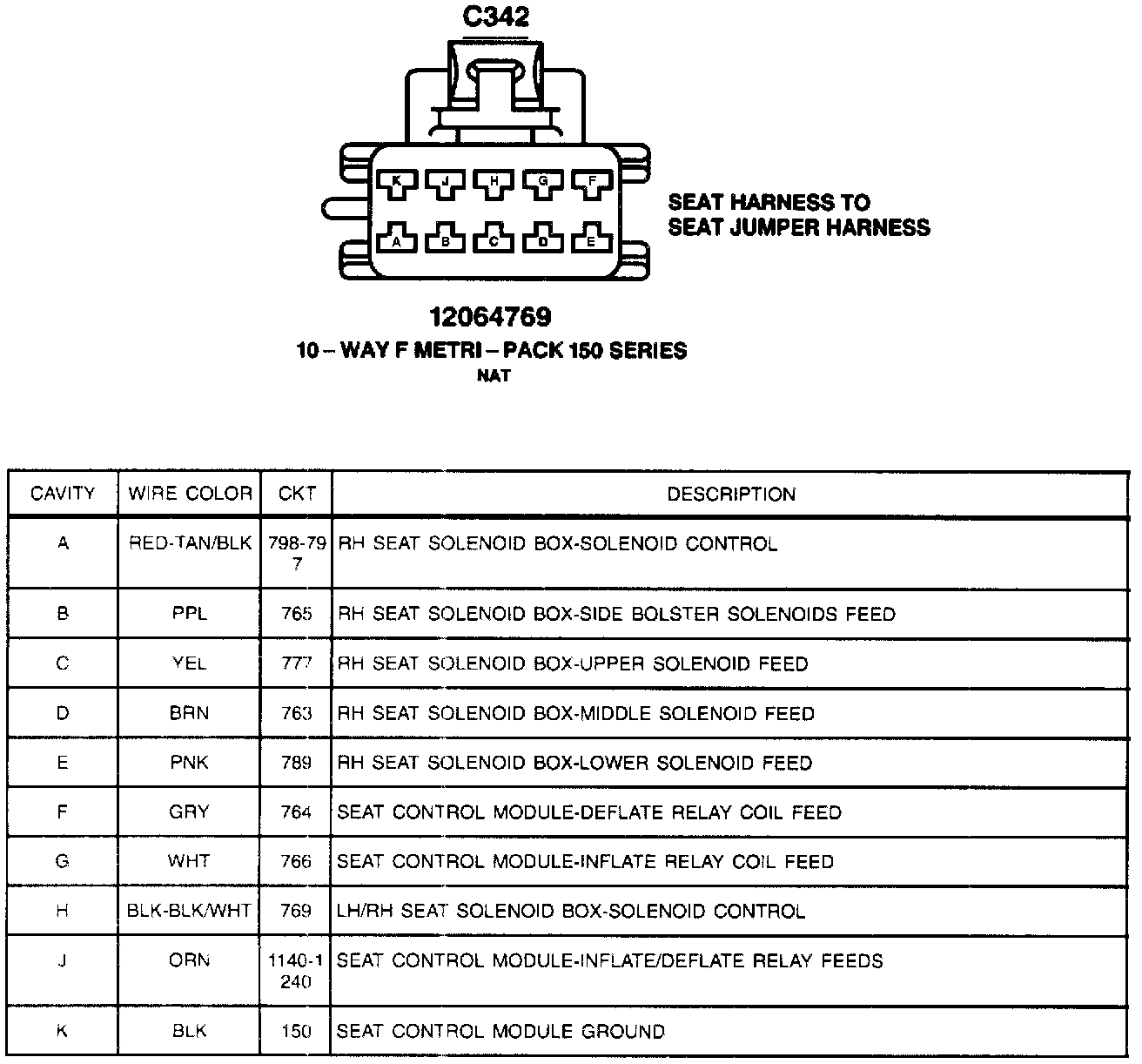

C342: Seat Harness To Seat Jumper Harness:
