Transmitter Has No Hatch Release Function

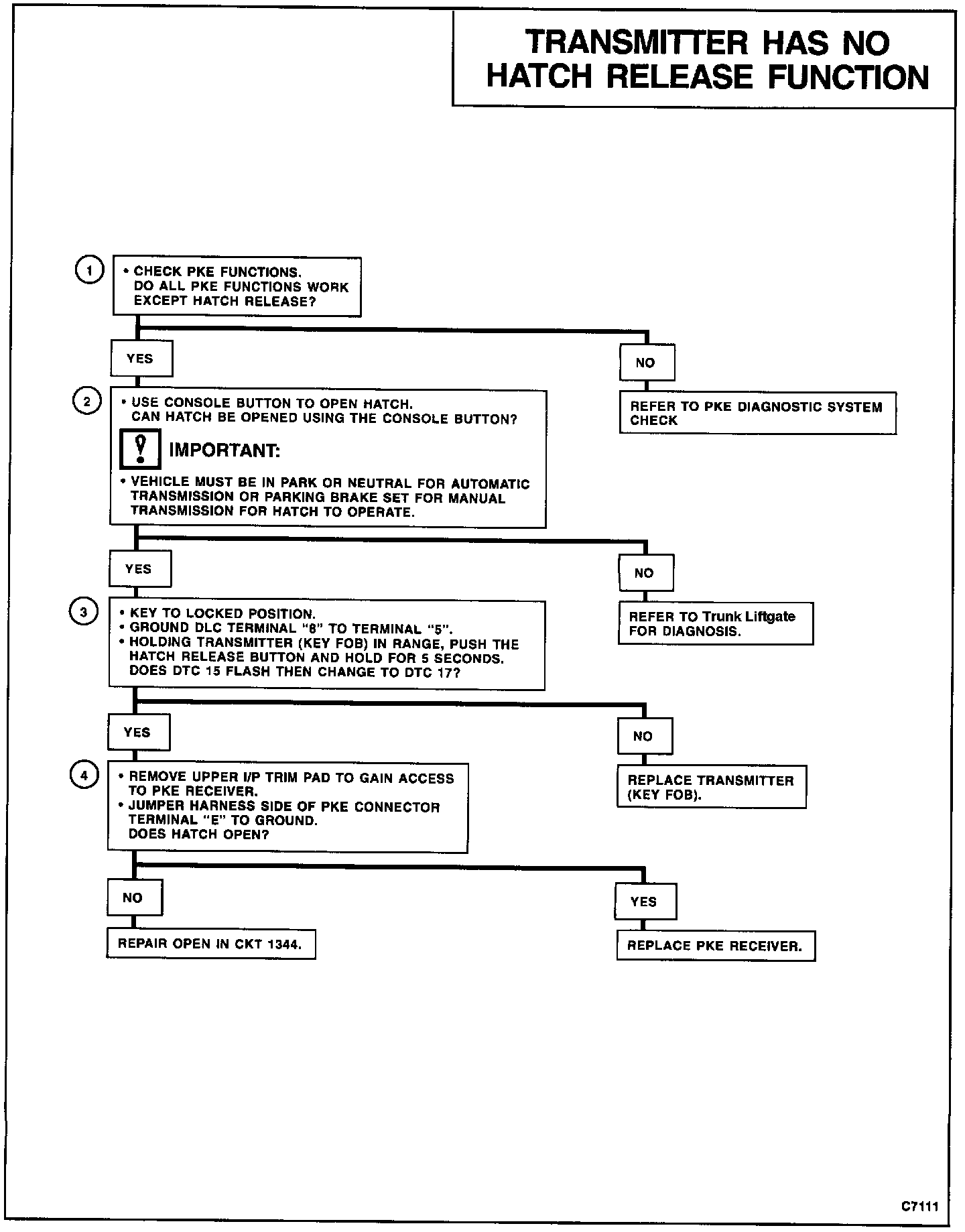

Diagnostic Chart:

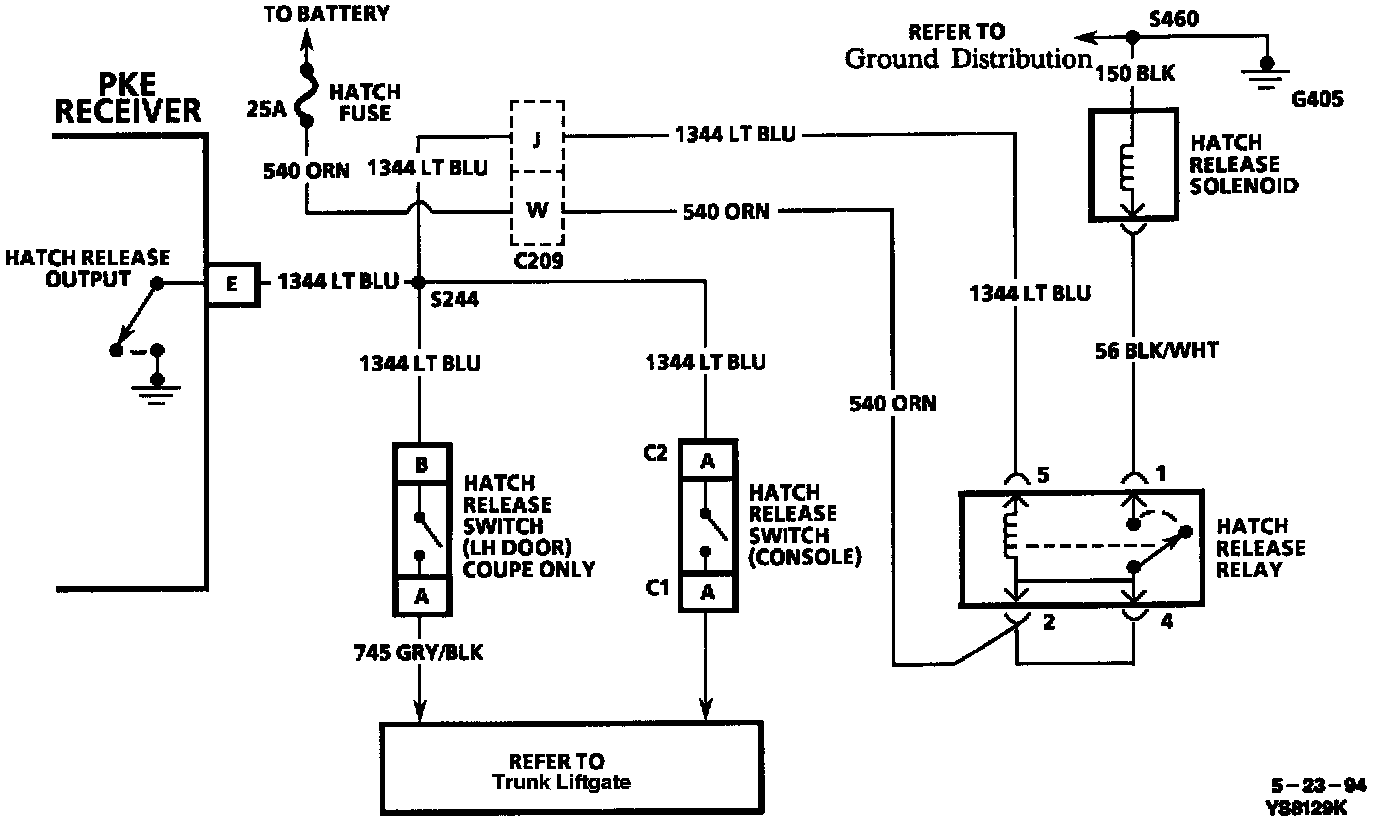

Wiring Diagram:

CIRCUIT DESCRIPTION
When a valid PKE transmitter sends a hatch release signal. the receiver grounds CKT 1344 at terminal "E" which supplies ground to the hatch release relay coil. This energizes the relay which allows energizing of the hatch release solenoid.

CHART TEST DESCRIPTION
Number(s) below refer to circled number(s) on the diagnostic chart.
1. Determines if all other PKE functions are working.
2. Determines if the base hatch release system is functioning.
3. Determines if the receiver recognizes the "hatch release" signal from the PKE transmitter.
4. Determines if the hatch release solenoid operates by grounding CKT 1344. If the hatch solenoid operates, the PKE receiver is suspect.
