Wiring Diagram

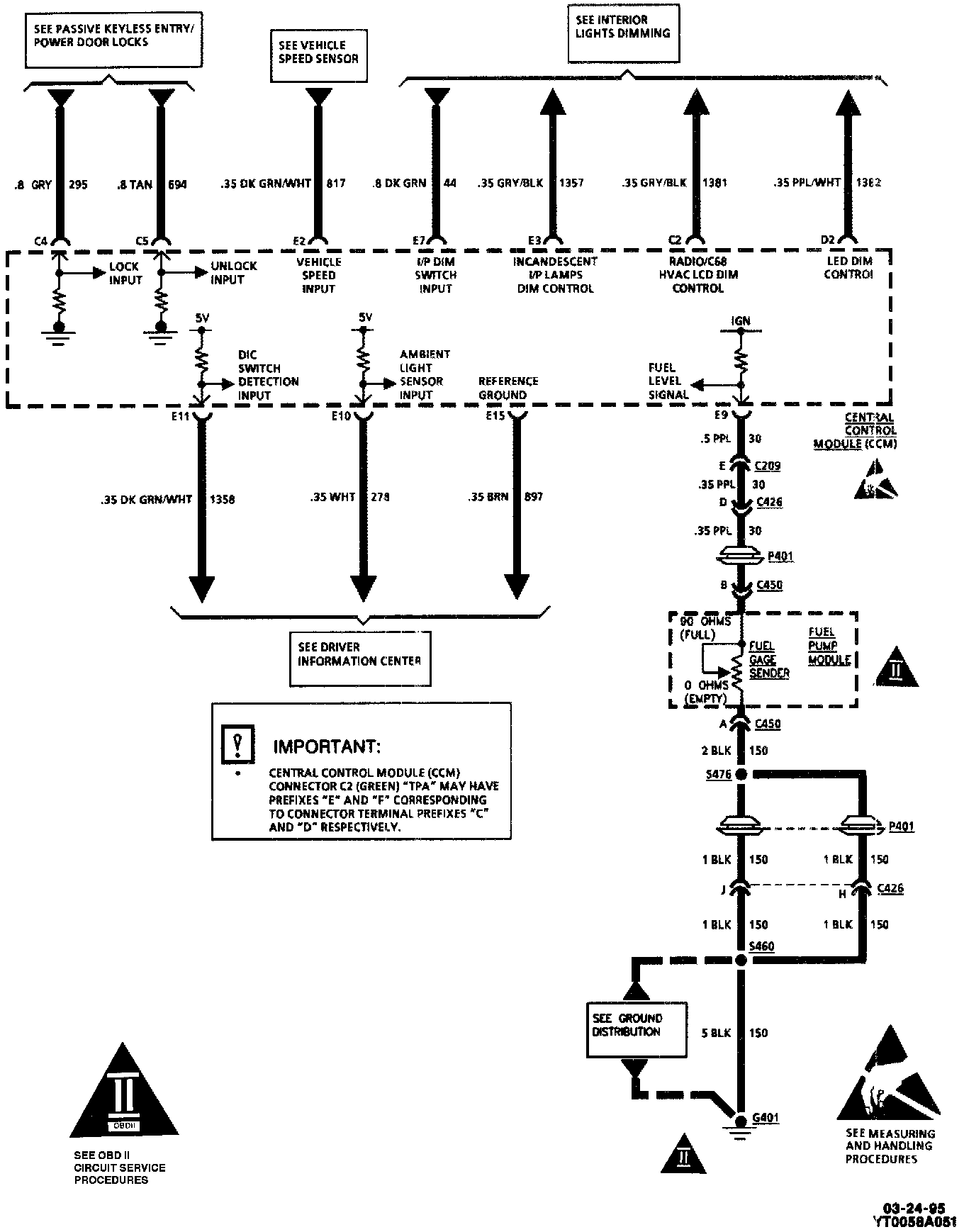

Central Control Module (CCM) (Part 1 Of 6):

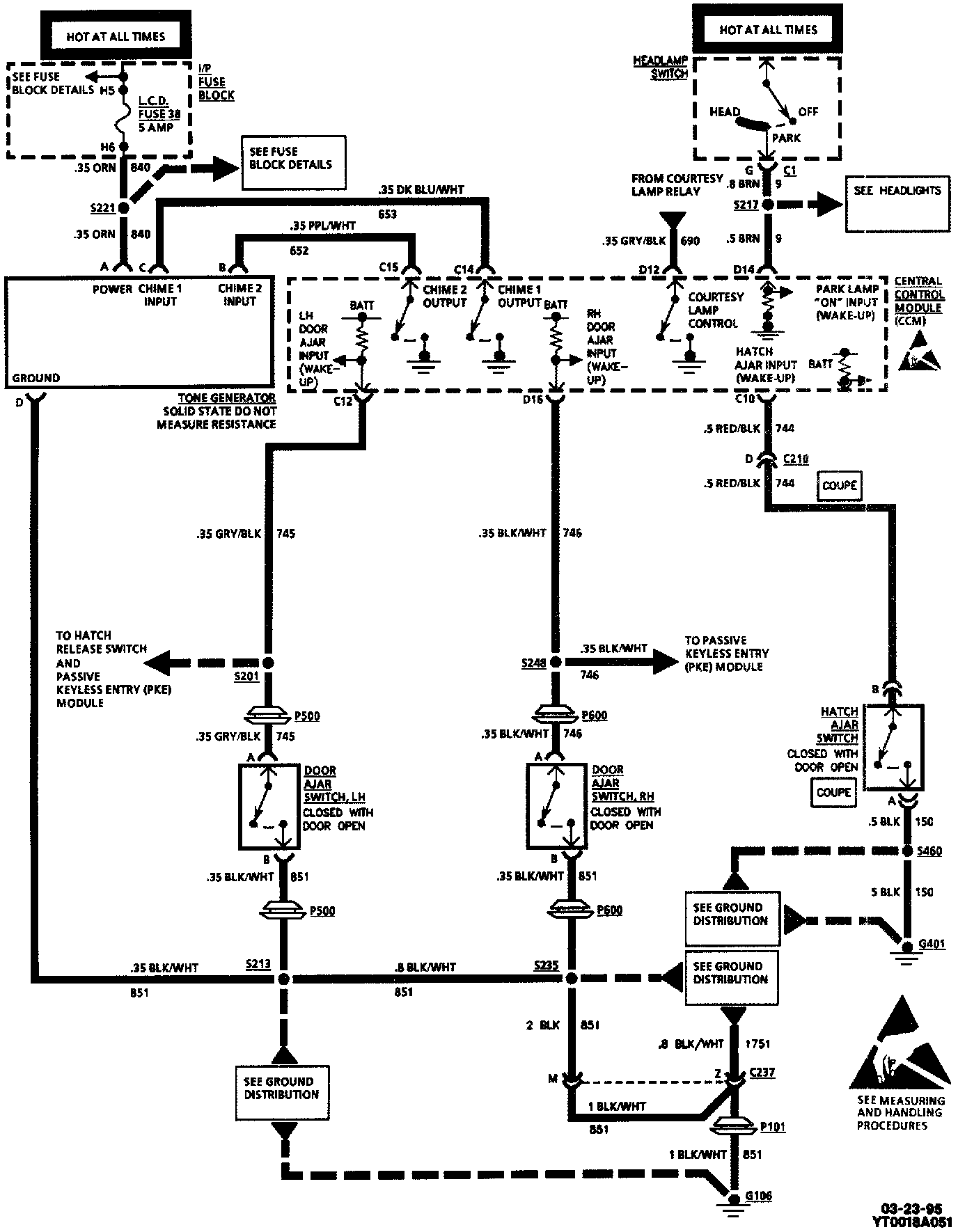

Central Control Module (CCM) (Part 2 Of 6):

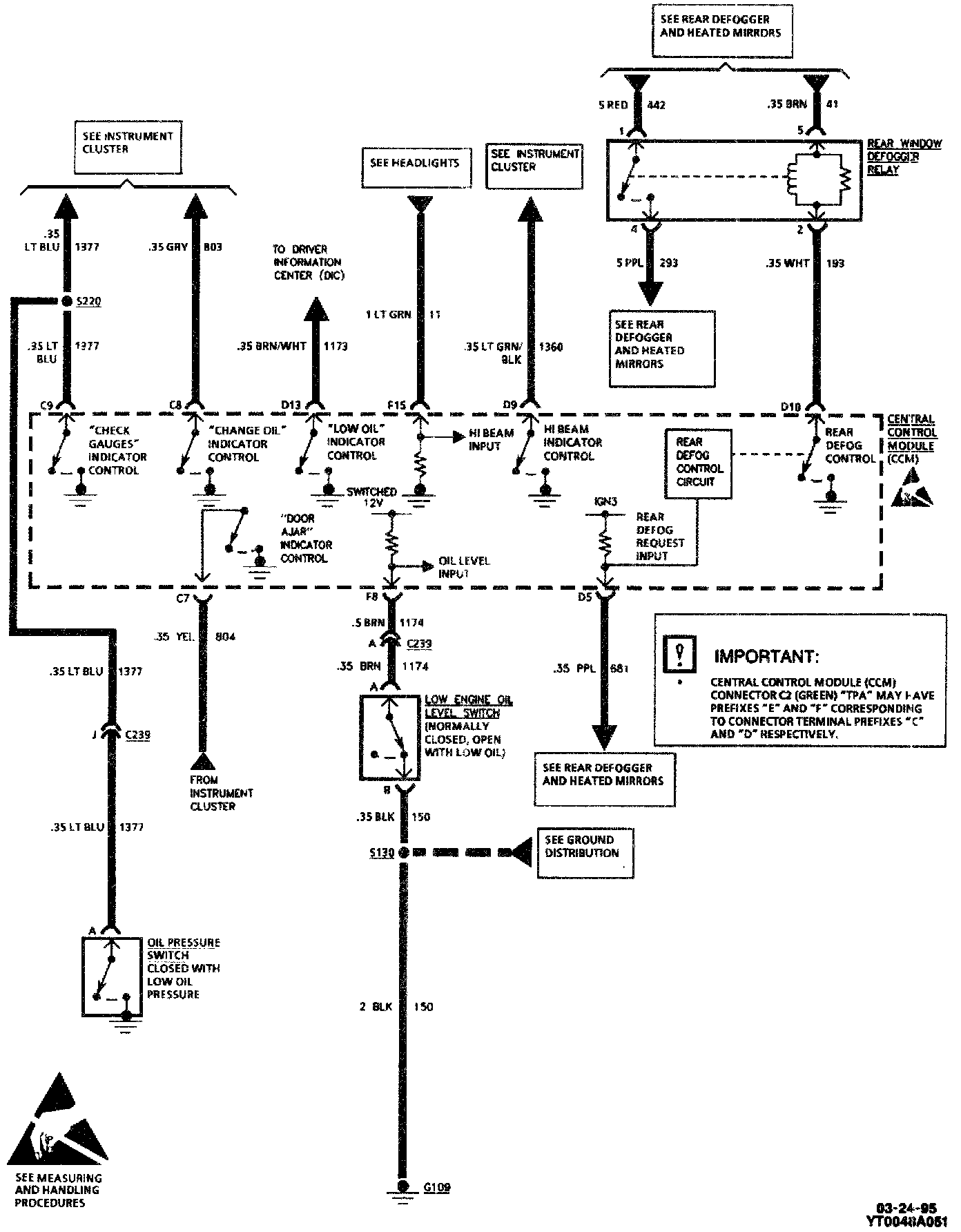

Central Control Module (CCM) (Part 3 Of 6):

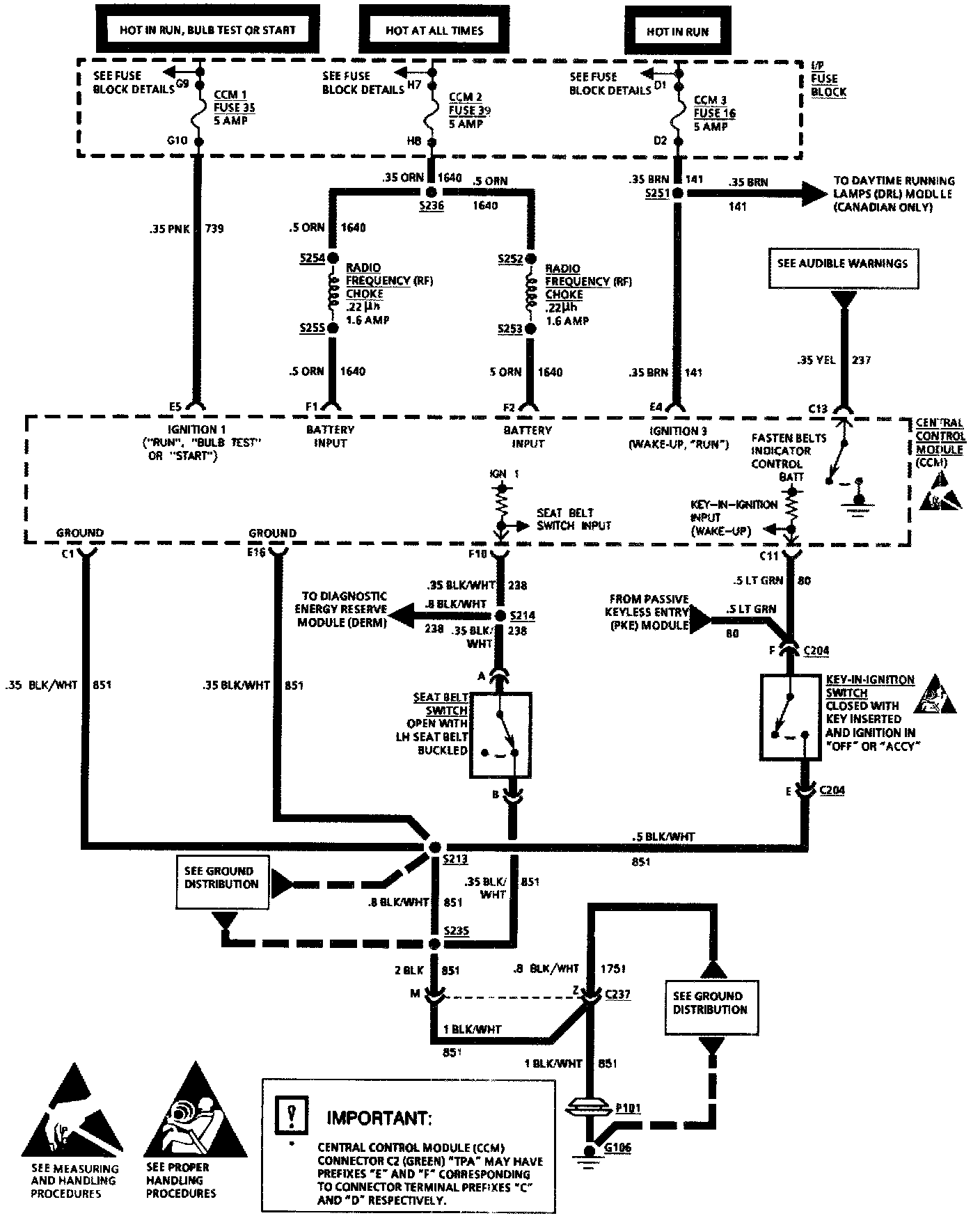

Central Control Module (CCM) (Part 4 Of 6):

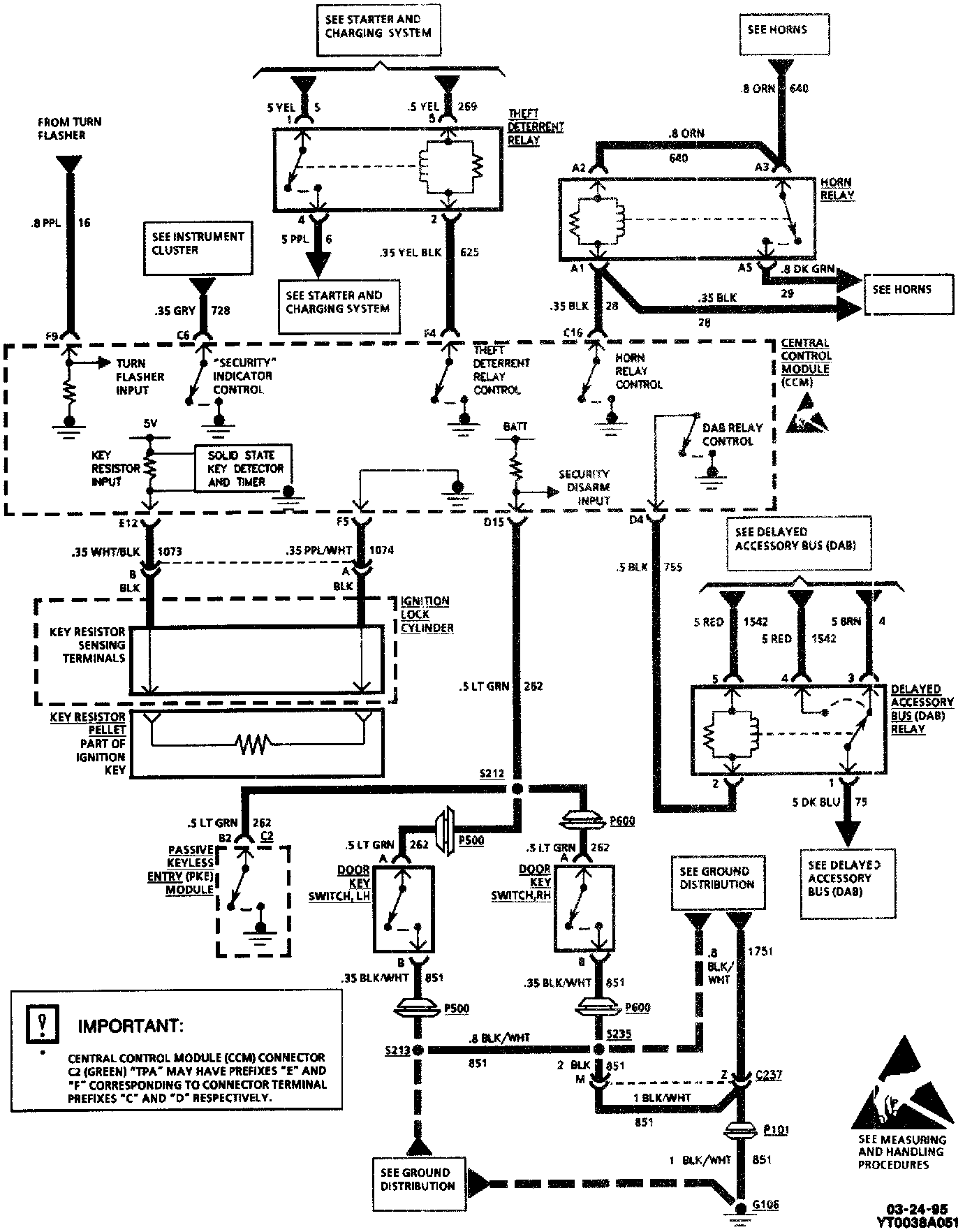

Central Control Module (CCM) (Part 5 Of 6):

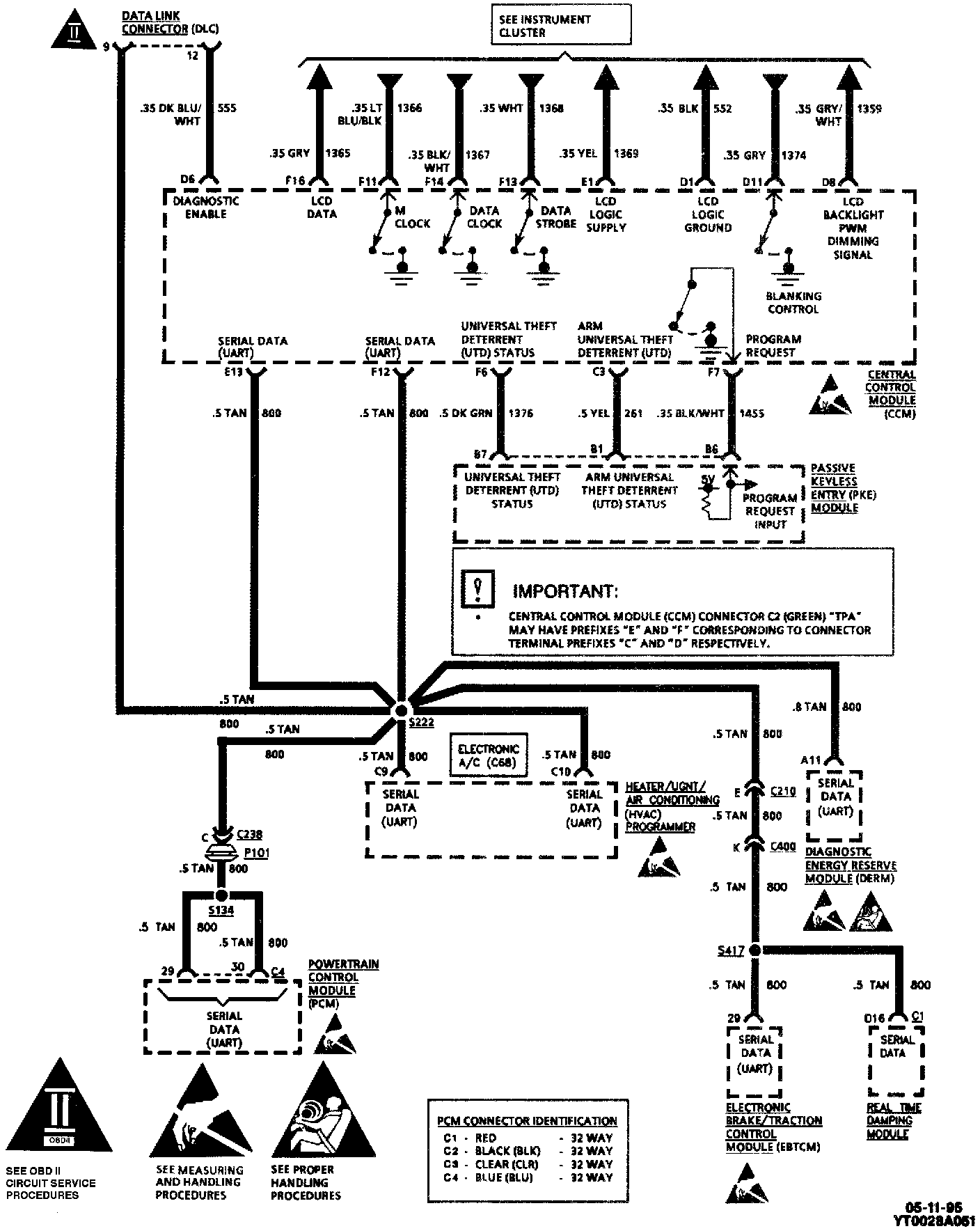

Central Control Module (CCM) (Part 6 Of 6):
