Shift Cable: Service and Repair

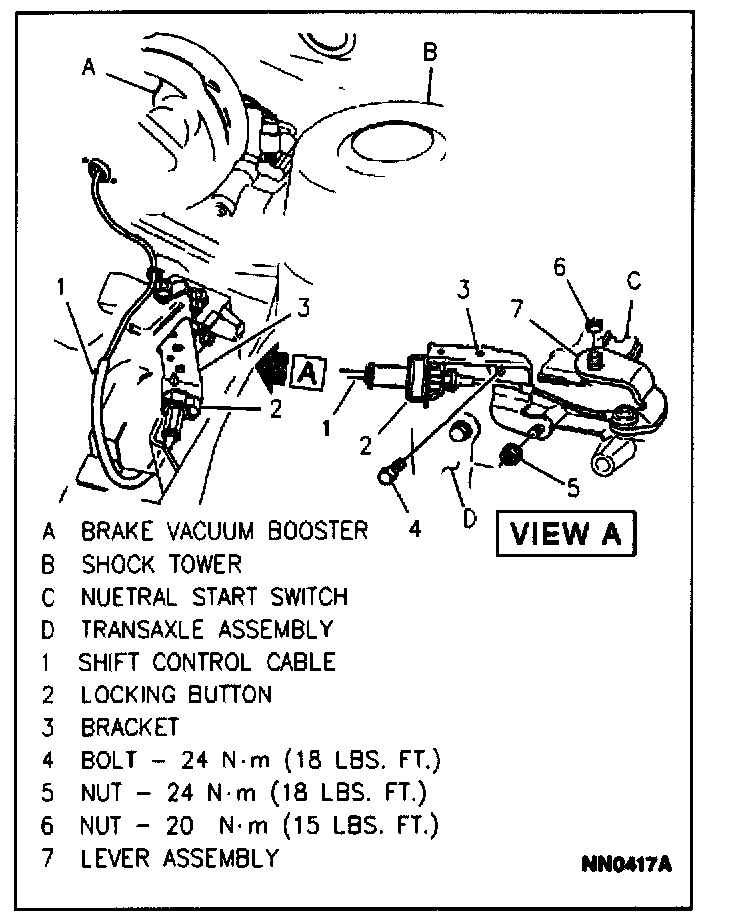

SHIFT CONTROL CABLE






Remove

1. Negative battery cable.
2. Cable at transaxle selector lever.
3. Cable at transaxle cable bracket.
4. Center console.
5. Cable at shift control assembly.
6. Cable grommet at cowl.
7. Cable from Vehicle.

Install

1. Cable through cowl and carpet.
2. Cable grommet and bolts in cowl.

Tighten

Grommet bolts to 1.9 Nm (17 lb in).

3. Cable at shift control assembly.
4. Center console.
5. Cable at transaxle cable brackets.
6. Cable at transaxle selector lever.
7. Negative battery cable.
8. Adjust cable.

Adjust
1. Place shift lever in "Neutral".

Note: Neutral can be found by rotating the selector shaft clockwise from Park through Reverse to Neutral.

2. Place shift control assembly in "Neutral".
3. Push tab on cable adjuster to adjust cable in cable mounting bracket.
