Alternator: Service and Repair

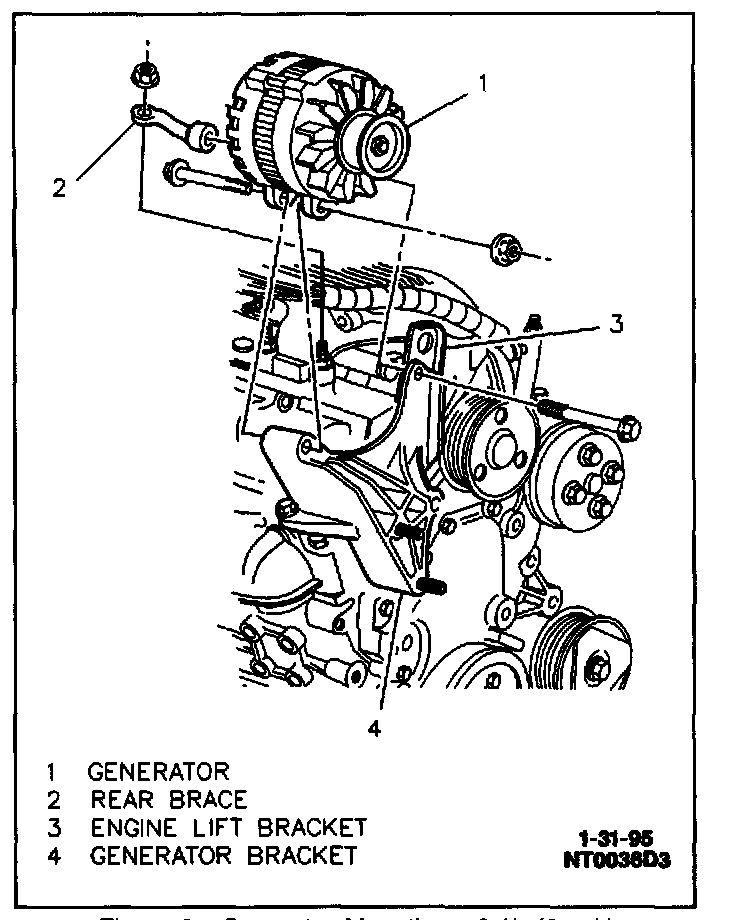

GENERATOR REPLACEMENT














Remove


1. Negative battery cable.
2. Serpentine drive belt.
3. Electrical connections and power steering line clip.
4. Rear generator brace.
5. Generator air intake connector.
6. Generator bolts.
7. Generator.

Install

1. Generator.
2. Generator bolts.
3. Generator air intake connector.
4. Rear generator brace
5. Electrical connections and power steering line clip
6. Serpentine drive belt. Refer to SECTION 6A5.
7. Negative battery cable.
