Chevrolet
>>
1996
>>
Corsica V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
A/C Refrig Press, TP, MAP, ECT, IAT
A/C Refrig Press, TP, MAP, ECT, IAT

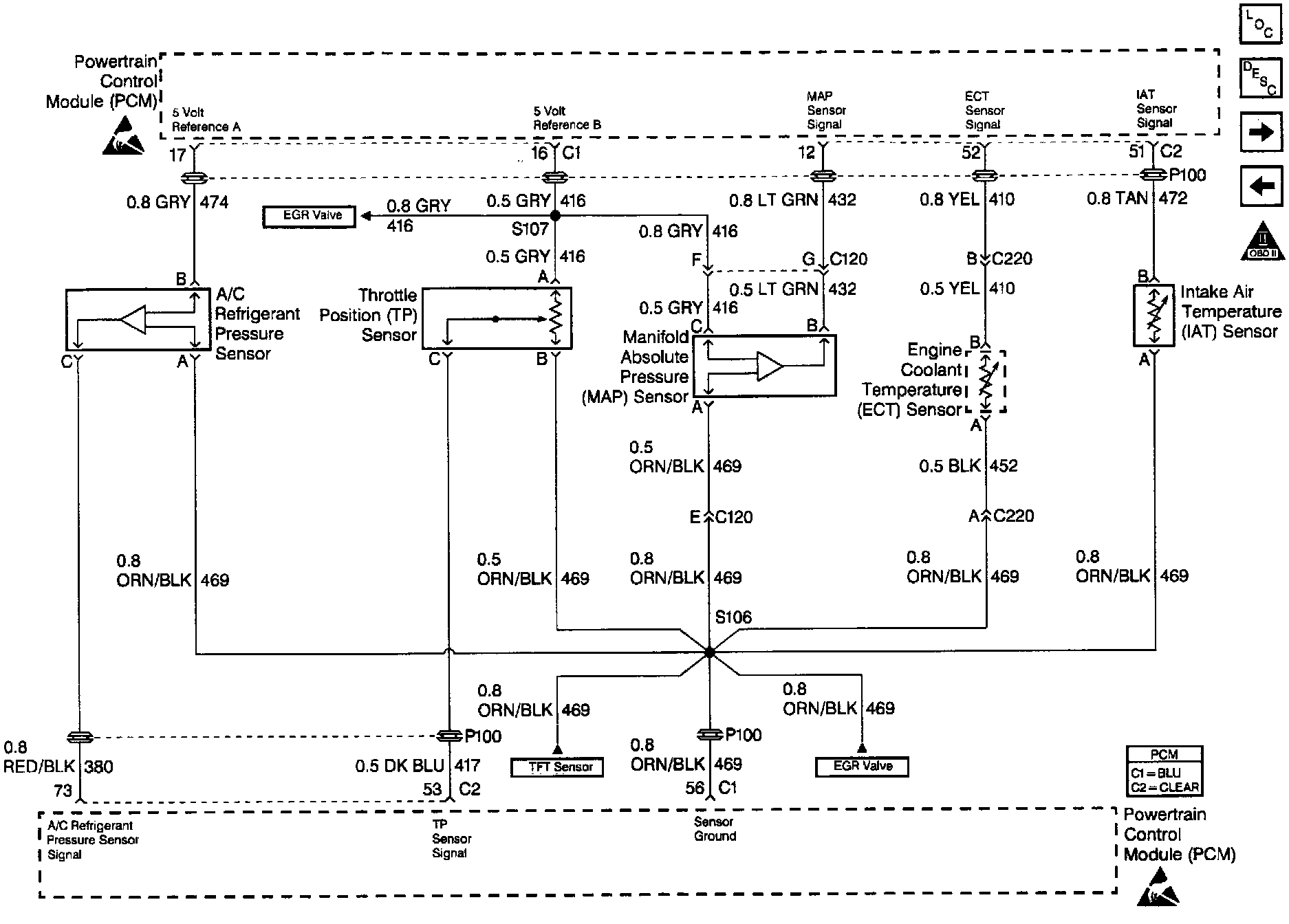

Engine Controls (A/C Refrigerant Pressure, TP, MAP, ECT, And IAT Sensors):
