Cylinder Head Bolt Torque and Sequence

Cylinder Head Bolts

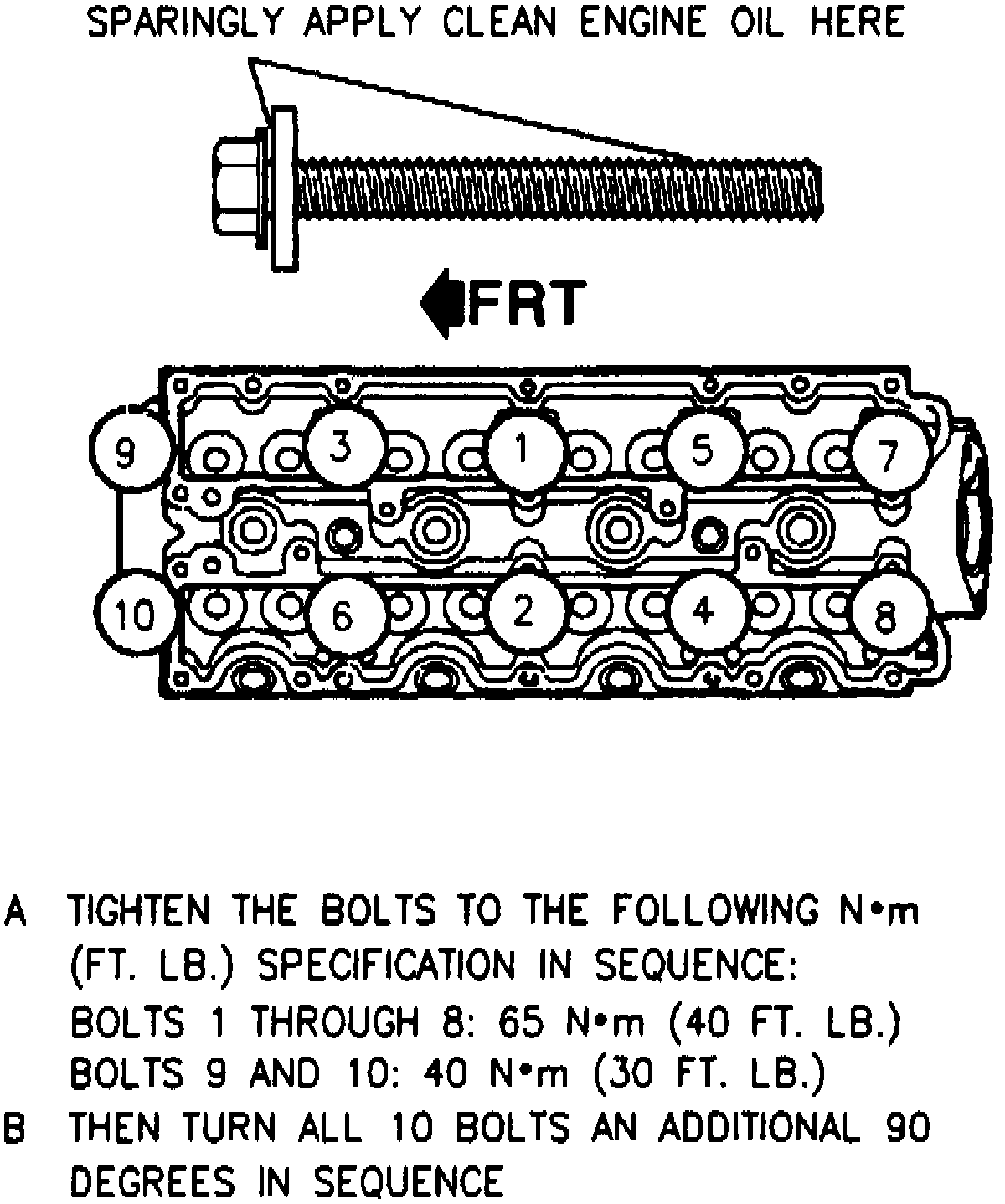

Fig. 12 Cylinder Head Bolt Tightening Sequence:

In the sequence shown (refer to figure 12):

^ Torque bolts 1 through 8 to 65 N.m (40 ft. lbs.)
^ Torque bolts 9 and 10 to 40 N.m (30 ft. lbs.)
^ Tighten all bolts an additional 90° (1/4 turn)
