Accelerator Cable Bracket

REMOVAL PROCEDURE
1. Remove the cross slug (3) from throttle body slot.
2. Depress tangs and remove cable (1).

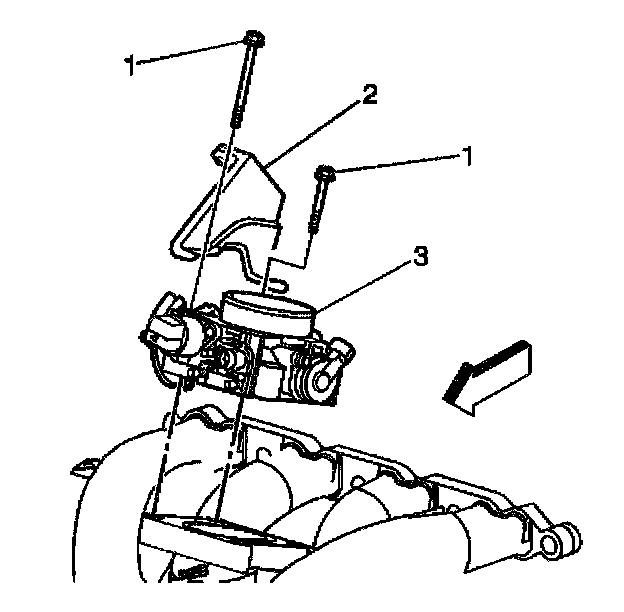

3. Remove the bolts (1) to throttle body (3).
4. Remove the bracket (2).

INSTALLATION PROCEDURE
1. Install the bracket (2) to throttle body (3).
2. Install the bolts (1).

Tighten
bolts to 6.5 Nm (58 lb. in.).

3. Install the cable (1) to bracket, making certain tangs fully expand in bracket.
4. Install the cross slug (3) into throttle body slot.

CAUTION: Flexible components (hoses, wires, conduits, etc.) must not be routed within 50 mm (2.0 in.) of moving parts of accelerator linkage outboard of support unless routing is positively controlled.

5. Check for correct opening and closing positions by operating accelerator pedal. Make sure that the throttle valve reaches wide-open throttle position. If it does not, inspect for damaged or bent brackets, lever, or other components; or, for poor carpet fit under the accelerator pedal.
