VALVE BODY COVER

TOOL REQUIRED
^ J 28467-A Engine Support Fixture

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Transaxle bracket, refer to "Transaxle Support Assembly."

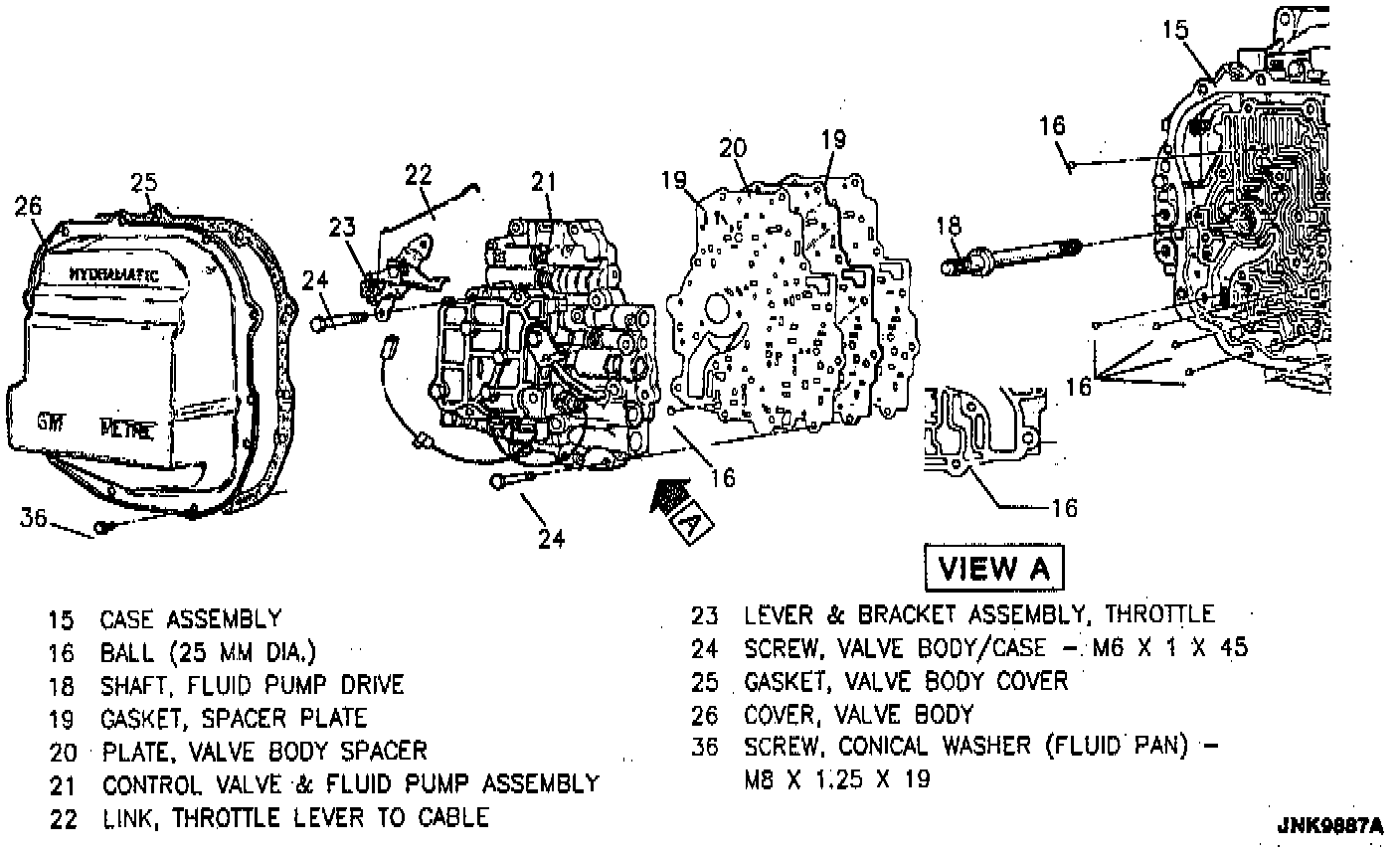

3. Valve body cover and gasket.




INSPECT

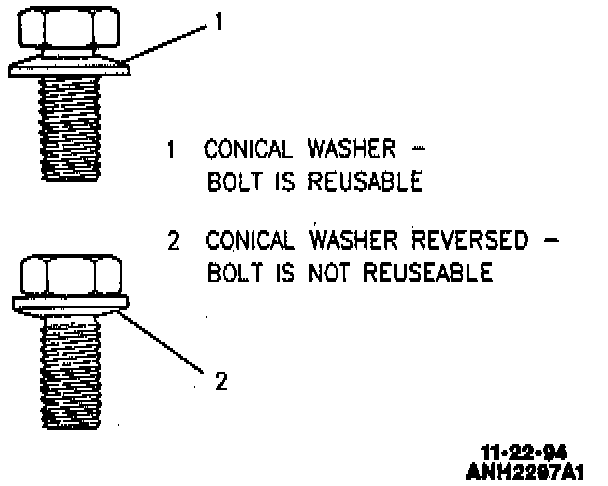

^ Determine if the washer is inverted on bolts, refer to the image.

IMPORTANT
^ Use adhesive/sealant compound GM P/N 12345282 or equivalent to reduce the potential for oil leaks on bolts, refer to the image.

INSTALL OR CONNECT




1. Valve body cover and gasket.

TIGHTEN
^ Bolts to 14 Nm (124 lb. in.).

2. Transaxle mount bracket, refer to "Transaxle Support Assembly."
3. Negative battery cable.
