Servo Assembly

Fig. 15 Low/Reverse Servo:

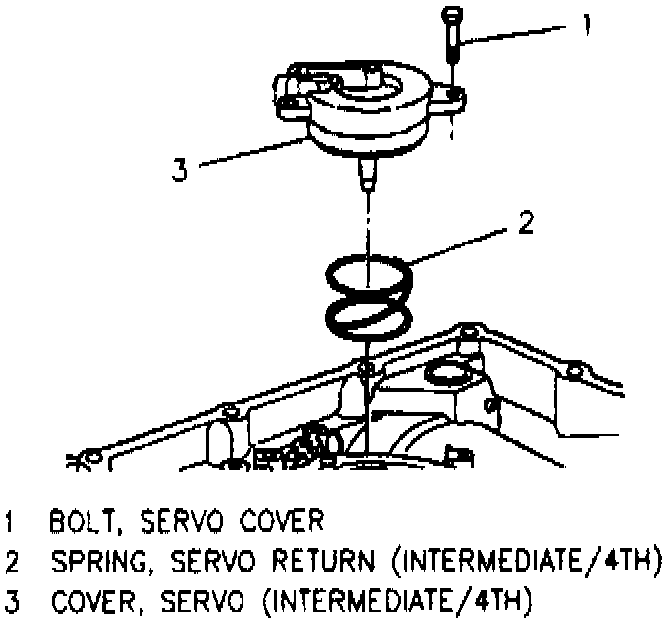

Fig. 16 Intermediate/4th Servo:

1. Disconnect battery ground cable.
2. Raise and support vehicle.
3. Remove lower pan. Refer to Transmission and Drivetrain / Automatic Transmission/Transaxle / Service and Repair / Oil Feed Pipes & Gaskets. Procedures
4. Remove servo cover bolts and cover, Fig. 15 and 16 .
5. Remove snap ring, piston assembly, sealing ring and servo spring.
6. Reverse procedure to install.
