Home >> Chevrolet >> 1996 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Circuit Breakers

Circuit Breakers

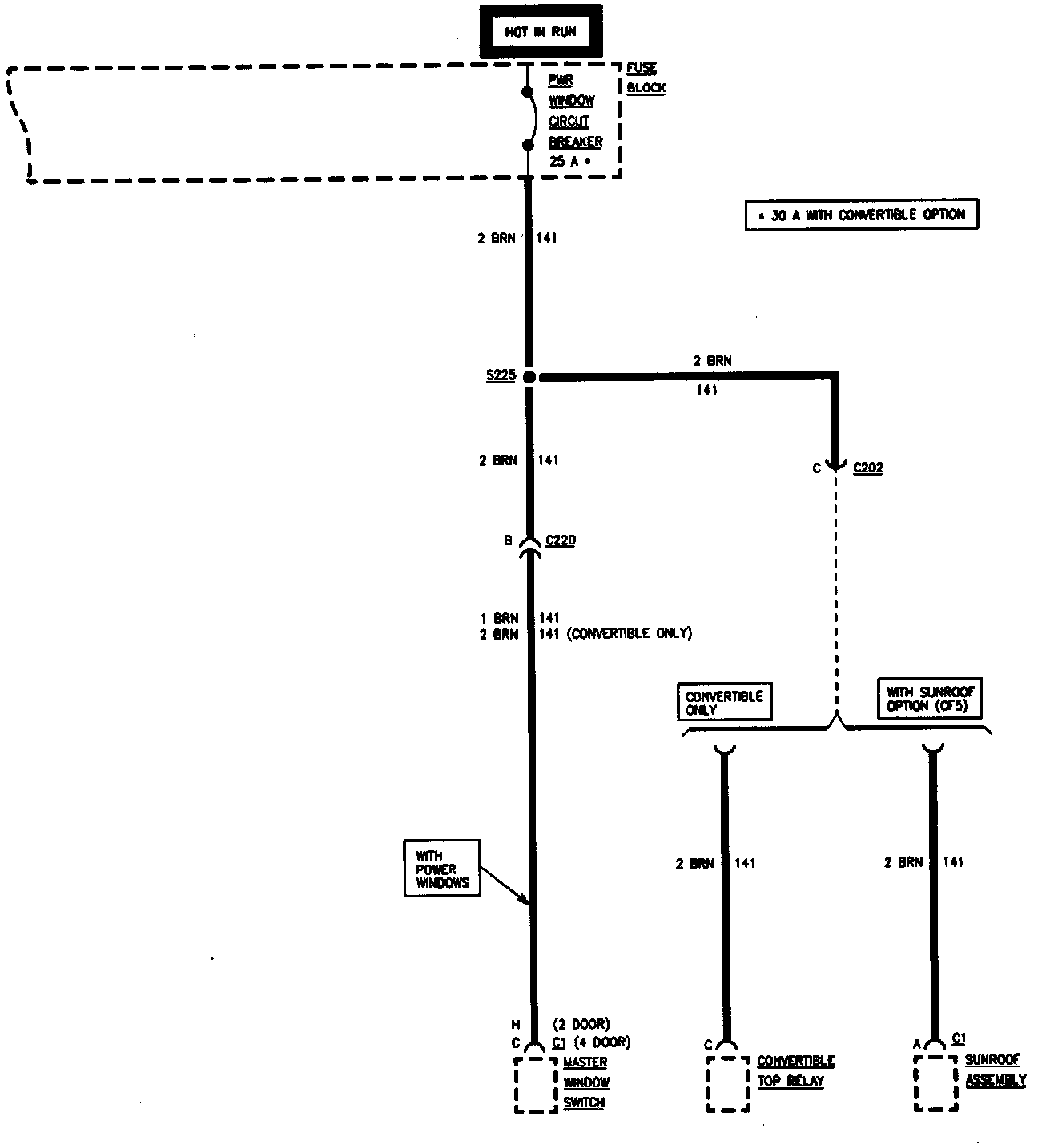

PWR WINDOW CIRCUIT BREAKER:
