Home >> Chevrolet >> 1996 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> 4T40-E Automatic Transaxle >> Brake Switch, Solenoids, and VSS: VIN T

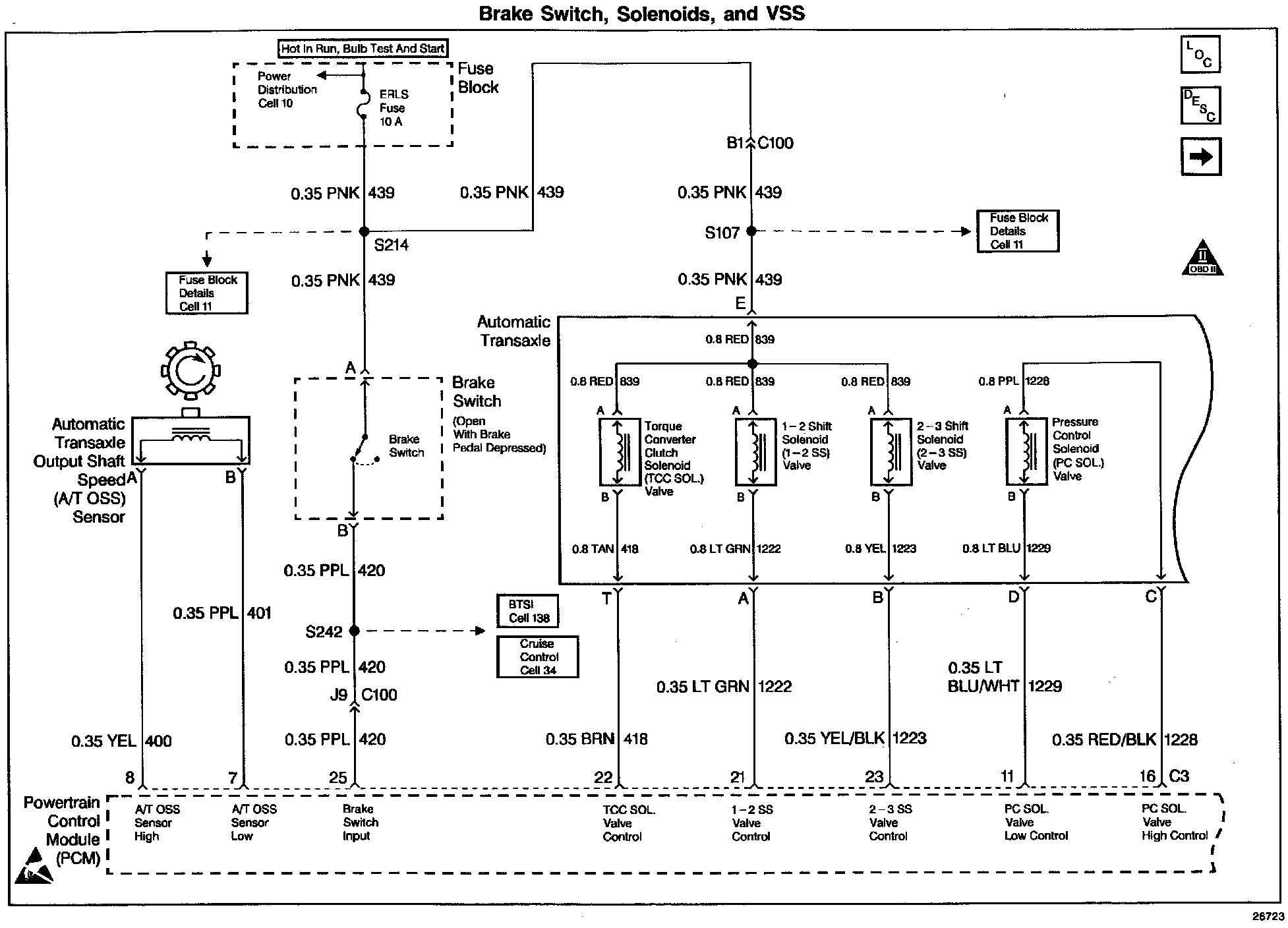

Brake Switch, Solenoids, and VSS: VIN T

With 4 Speed Automatic:
