Home
>>
Chevrolet
>>
1996
>>
Cavalier L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Controls
>>
Brake Switch, TCC Solenoid, and VSS

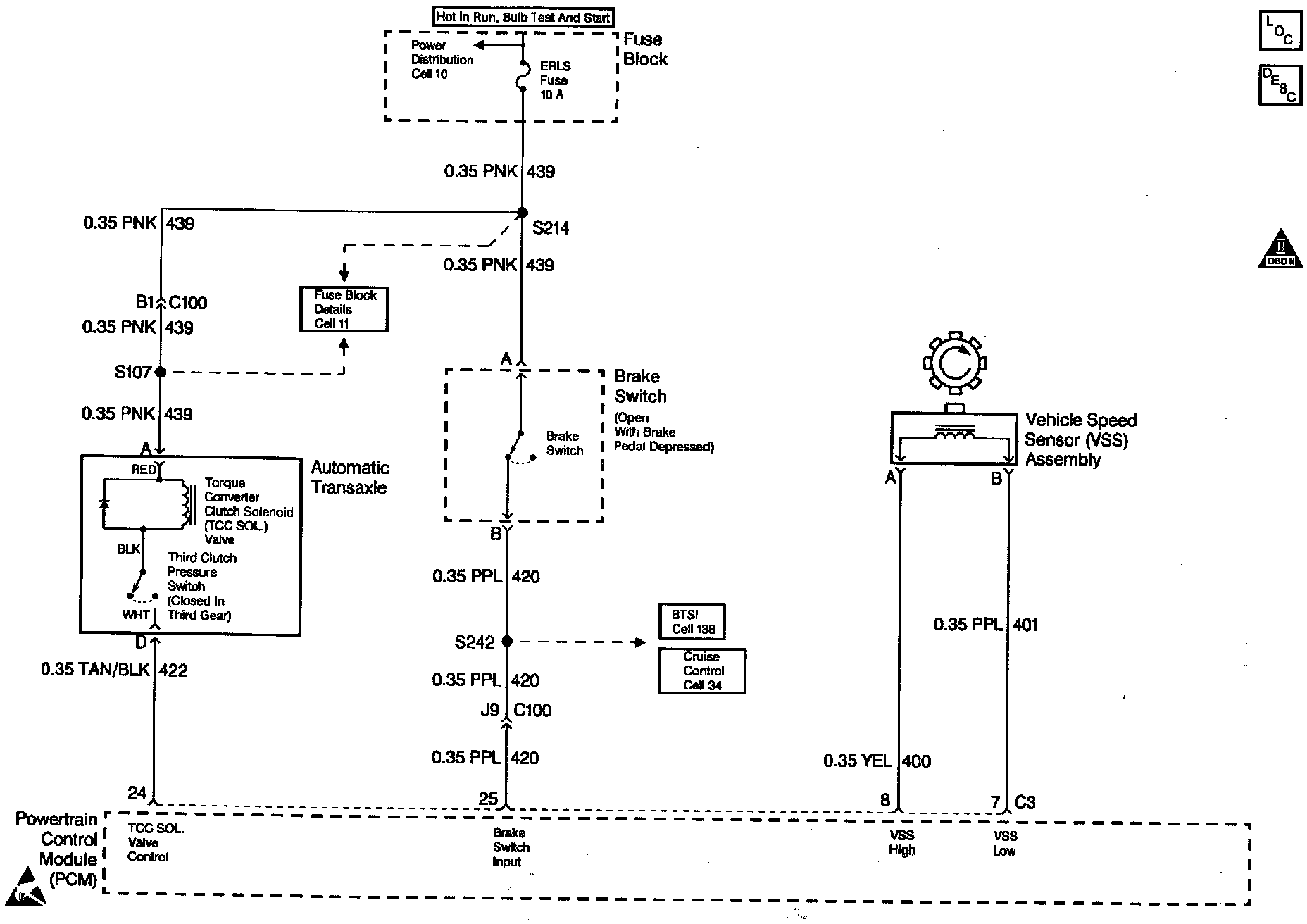

Brake Switch, TCC Solenoid, and VSS
With 3 Speed Automatic:
