Home >> Chevrolet >> 1996 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oil Pressure Sensor >> Locations

Oil Pressure Sensor: Locations

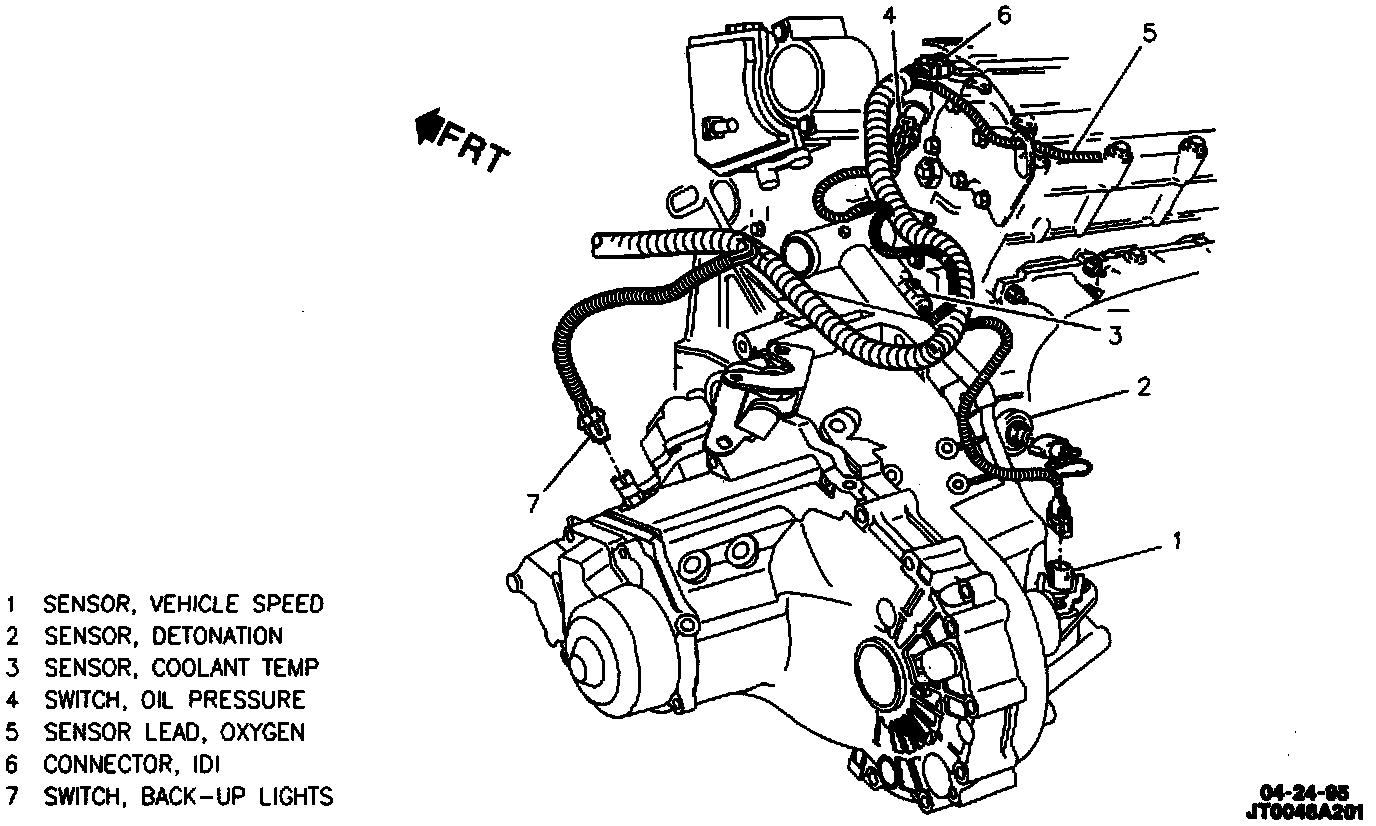

Left Rear Of Transaxle:

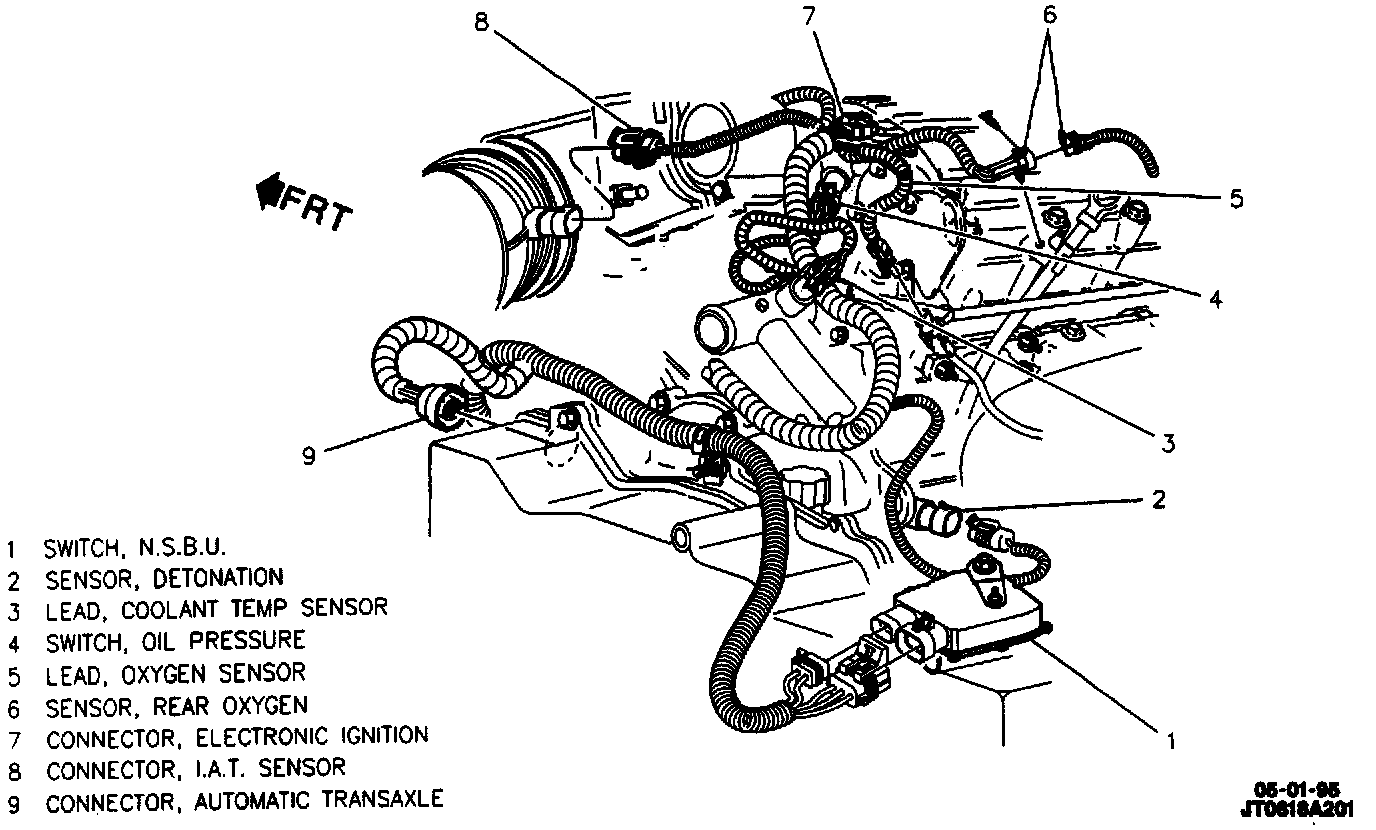

Rear Of Engine:



Rear Of Engine Compartment:



Left Side Of Engine Compartment:
