Hydraulic Modulator Solenoid Assembly

ABS HYDRAULIC MODULATOR SOLENOID

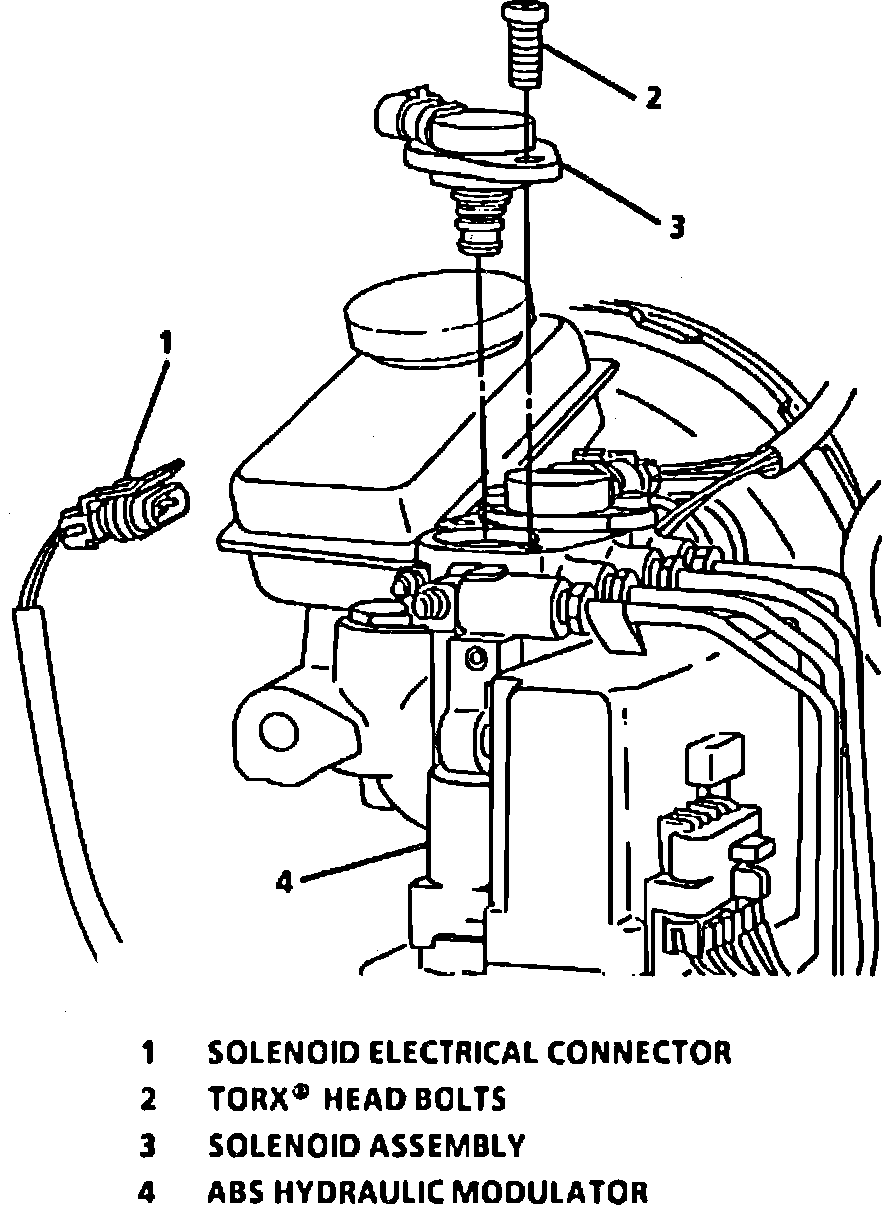

Hydraulic Modulator Solenoid Assembly:

1. Remove solenoid electrical connector.
2. Remove Torx� head bolts.
3. Remove solenoid.

Important

^ Be sure the seal is still attached to the solenoid when it is removed. If not, check solenoid bore in modulator.
^ Do not attempt to disassemble solenoid, it is serviceable only as an assembly. Lubricate seal on new solenoid with clean brake fluid.
^ Verify that the solenoid lip seal is properly positioned before solenoid is installed in Hydraulic Modulator.
^ Position solenoid so that its electrical connector will face the same direction as the solenoid that was removed.
^ By hand, press down firmly solenoid until its flange seats on the hydraulic modulator.

4. Reinstall Torx head bolts.


Tighten

^ Bolts to 4.5 N.m. (40 lb. in.).


5. Reinstall solenoid electrical connector to solenoid.

Important

^ Make sure the solenoid connectors are installed on correct solenoids.
^ It is necessary to bleed hydraulic modulator master cylinder assembly. Refer to Brake System Bleeding. With ABS System
