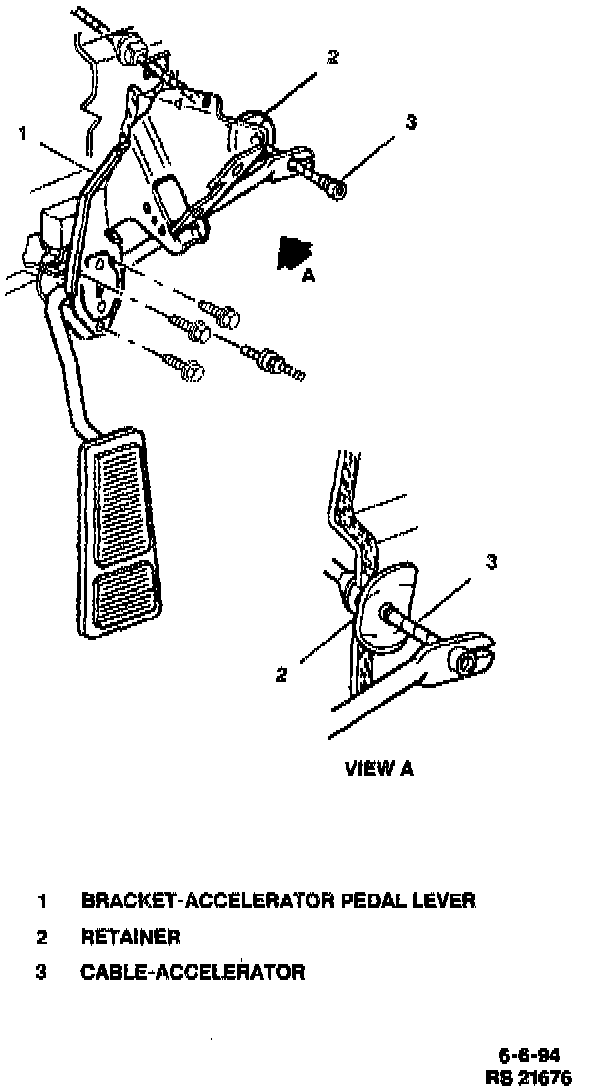

Accelerator Pedal: Service and Repair

Accelerator Pedal:

REMOVE OR DISCONNECT
1. Accelerator pedal push on nut.
2. Accelerator pedal from accelerator pedal lever.

INSTALL OR CONNECT
1. accelerator pedal and spring to accelerator pedal lever.
2. New push on nut to accelerator pedal lever.

INSPECT
^ Check for complete throttle opening and closing positions by operating accelerator pedal. Also check for poor carpet fit under the accelerator pedal. Throttle should operate freely without blind between full closed and wide open throttle.
