Home
>>
Chevrolet
>>
1996
>>
Caprice V8-350 5.7L VIN P SFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Fuse Block Details
Fuse Block Details
Fuse Block Details:

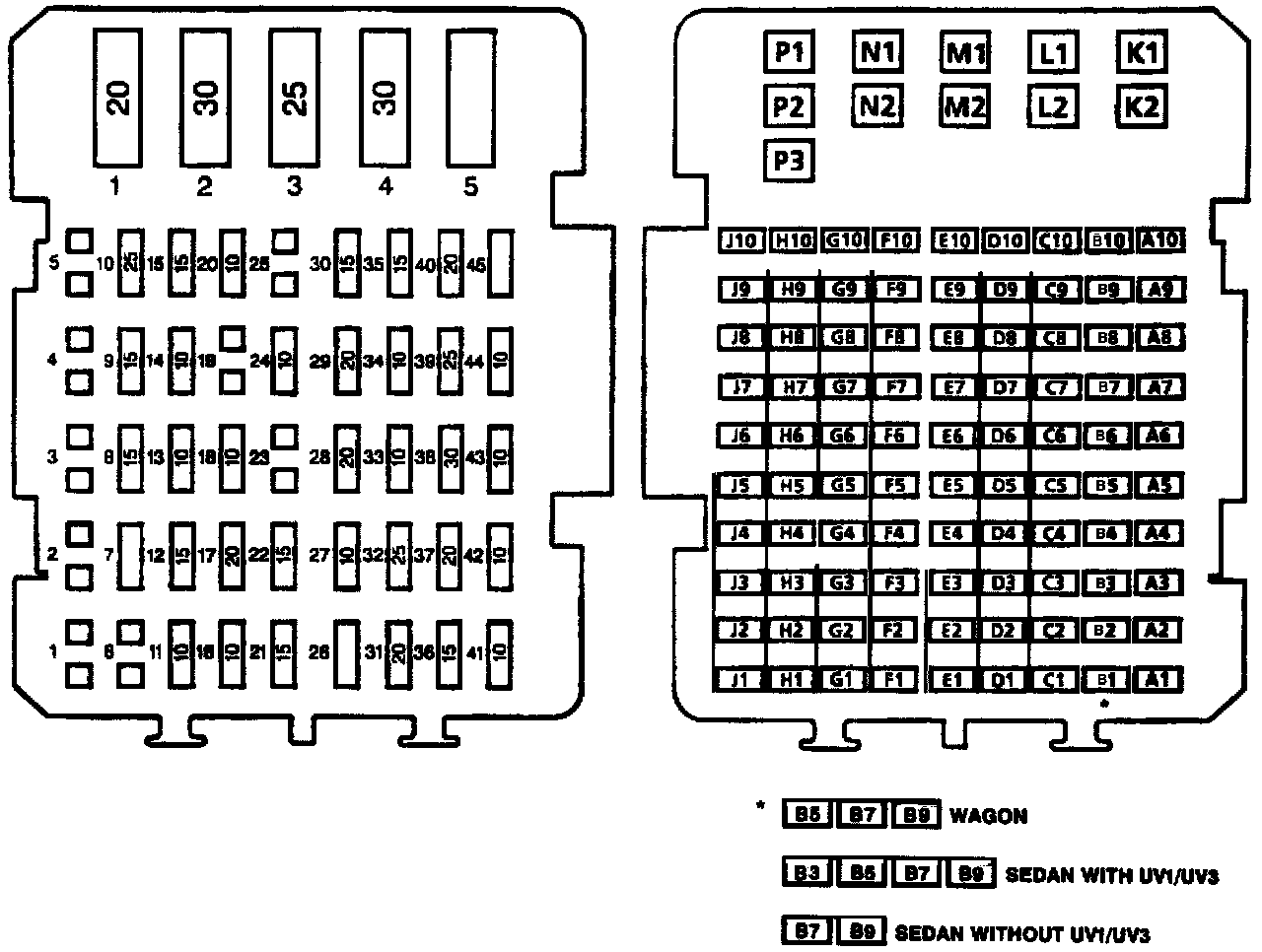

Fuse Block Details (Part 1 Of 2):

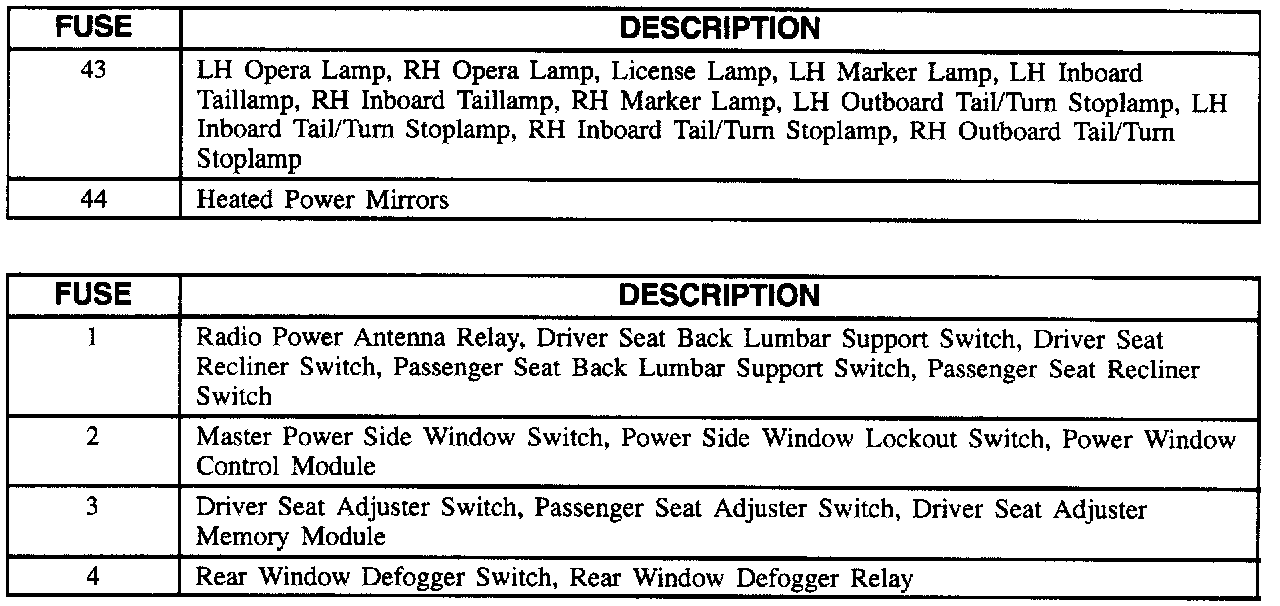

Fuse Block Details (Part 2 Of 2):
