Home >> Chevrolet >> 1996 >> Caprice V8-350 5.7L VIN P SFI >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> INT DIM and FWD LPS Fuses

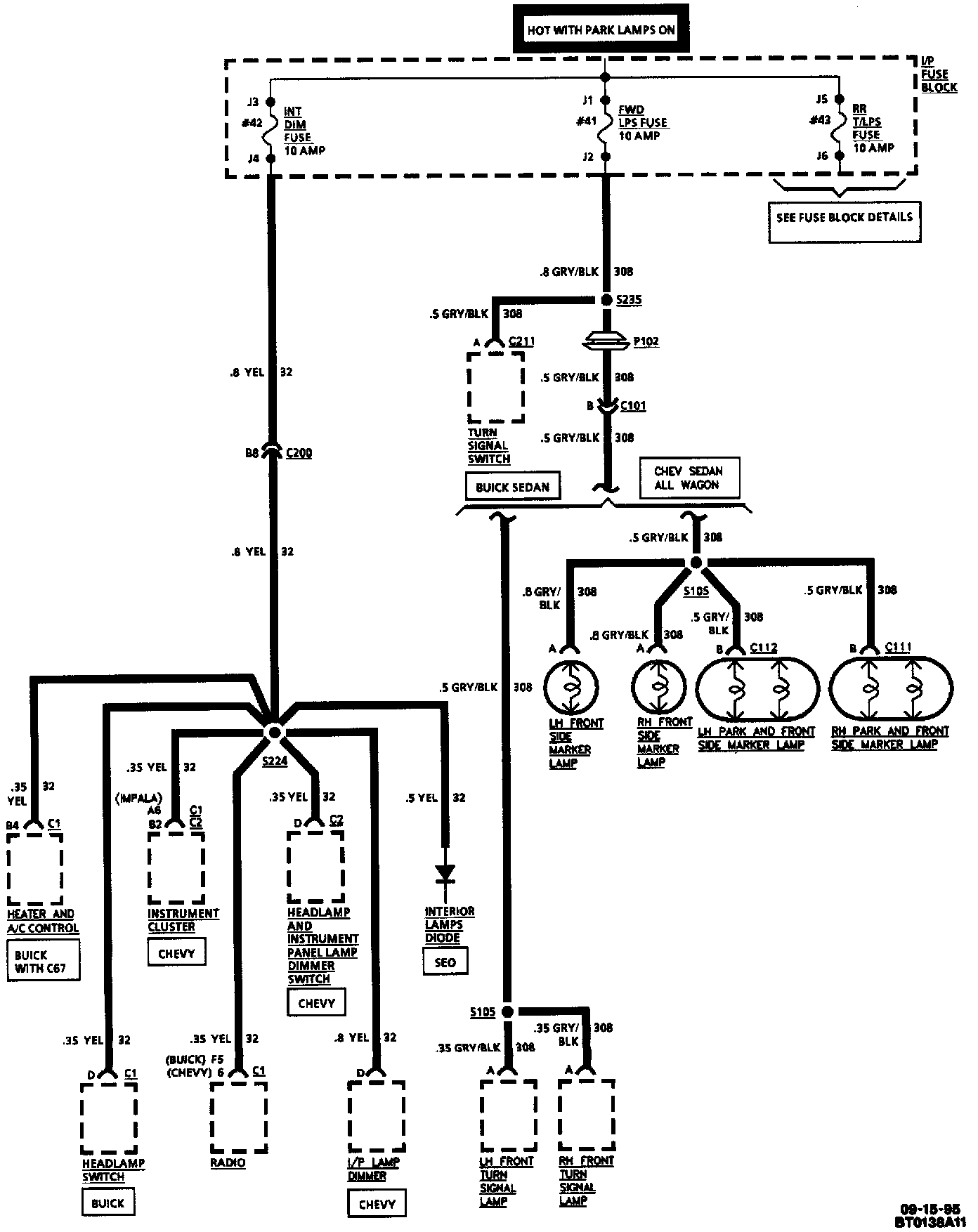

INT DIM and FWD LPS Fuses

INT DIM And FWD LPS Fuses:
