P1641

Diagnostic Chart:

CIRCUIT DESCRIPTION

Ignition voltage is supplied directly to the Cooling Fan relay coil. The PCM controls the relay by grounding the control circuit via an internal switch called a driven The primary function of the driver is to supply the ground for the component being controlled. Each driver has a fault line which is monitored by the PCM. When the PCM is commanding a component ON, the voltage of the control circuit should be low (near 0 volts). When the PCM is commanding the control circuit to a component OFF, the voltage potential of the circuit should be high (near battery voltage). If the fault detection circuit senses a voltage other than what is expected, the fault line status will change causing the DTC to set.

The relay is used to control the high current flow to the cooling fan motors. This allows the PCM driver to only have to handle the relatively low current used by the relay. For the Cooling Fan schematic, refer to Fan Controls-w/o VO8.

CONDITIONS FOR SETTING THE DTC

^ DTCs P0117, P0118, P1539 not set.

^ Engine speed greater than 600 RPM.

^ The PCM detects that the commanded state of the driver and the actual state of the control circuit do not match.

^ Condition must be present for a minimum of 5 seconds.

ACTION TAKEN WHEN THE DTC SETS

^ The PCM will illuminate the Malfunction Indicator Lamp (MIL) when the diagnostic runs and fails.

^ The PCM will record operating conditions at the time the diagnostic fails. This information will be stored in the Freeze Frame and/or Failure Records.

^ The injector will be disabled for the entire ignition cycle.

CONDITIONS FOR CLEARING THE MIL/DTC

^ The PCM will turn the MIL OFF after three consecutive drive trips that the diagnostic runs and does not fail.

^ A last test failed (Current DTC) will clear when the diagnostic runs and does not fail.

^ A History DTC will clear after forty consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.

^ PCM battery voltage is interrupted.

^ Using a Scan tool.

DIAGNOSTIC AIDS

Using Freeze Frame and/or Failure Records data may aid in locating an intermittent condition. If the DTC cannot be duplicated, the information included in the Freeze Frame and/or Failure Records data can be useful in determining how many miles since the DTC set. The Fail Counter and Pass Counter can also be used to determine how many ignition cycles the diagnostic reported a pass and/or a fail. Operate vehicle within the same freeze frame conditions (RPM, load, vehicle speed, temperature etc.) that were noted. This will isolate when the DTC failed. For intermittents, refer to Symptoms. Testing and Inspection

TEST DESCRIPTION

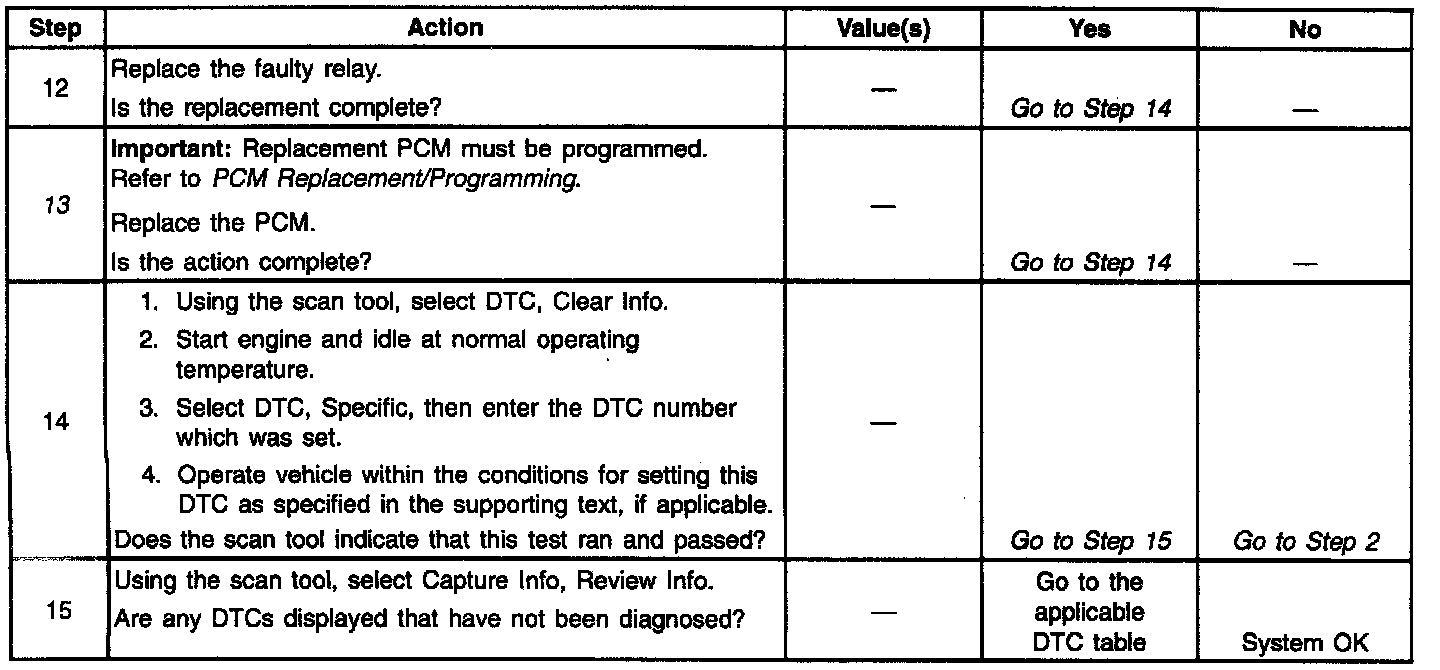

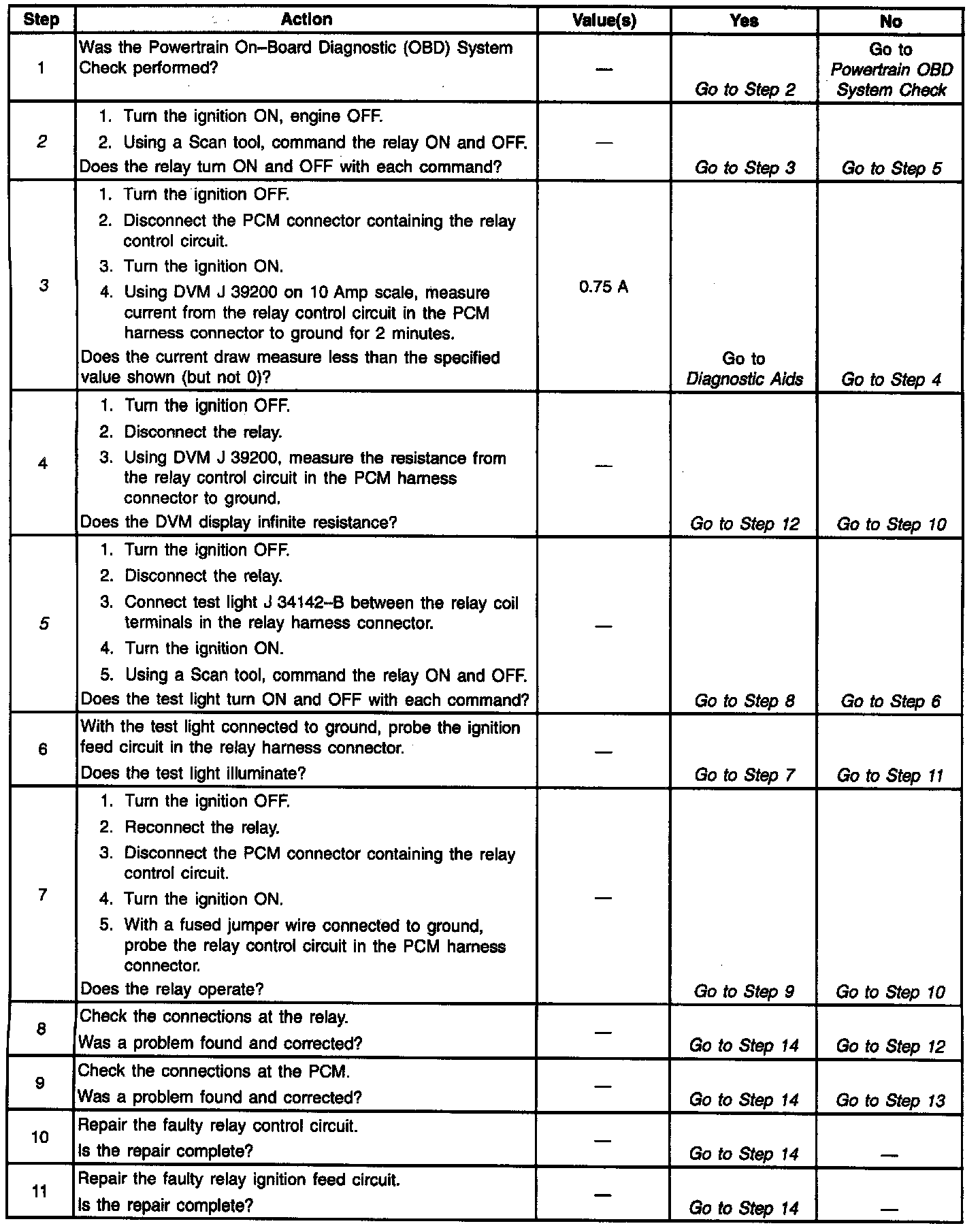

Number(s) below refer to step numbers on the diagnostic table.

2. Listen for an audible click when the relay operates. Be sure that both the ON and the OFF states are commanded. Repeat the commands as necessary.

3. This check can detect a partially shorted coil which would cause excessive current flow. Leaving the circuit energized for 2 minutes allows the coil to warm up. When warm the coil may open (Amps drop to 0), or short (goes above 0.75 Amp).

5. It is important to identify and test the relay coil terminals to avoid improper diagnosis.

13. If no trouble is found in the control circuit or the connection at the PCM, the PCM may be faulty, however, this is an extremely unlikely failure.
