Automatic Transmission

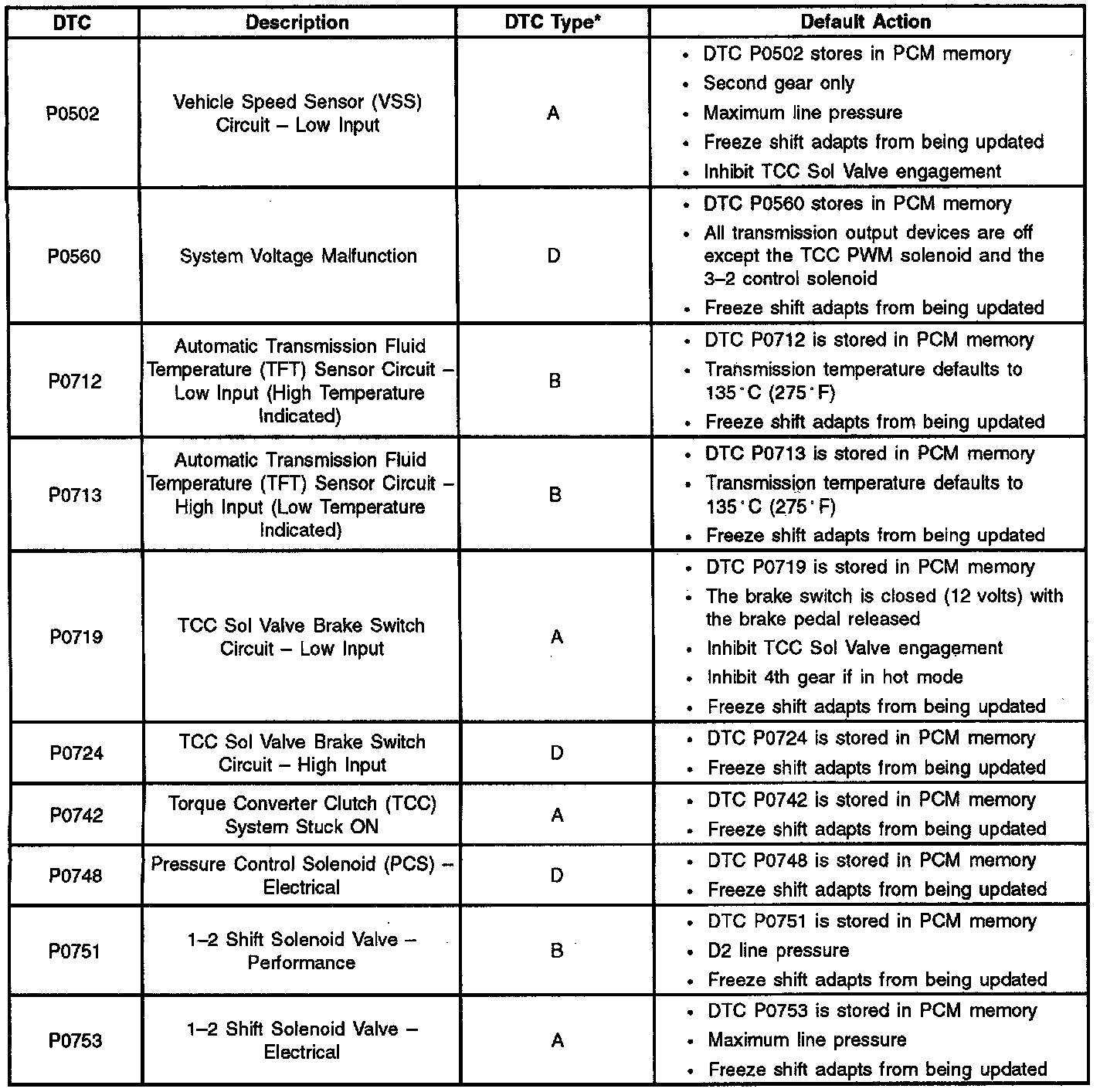

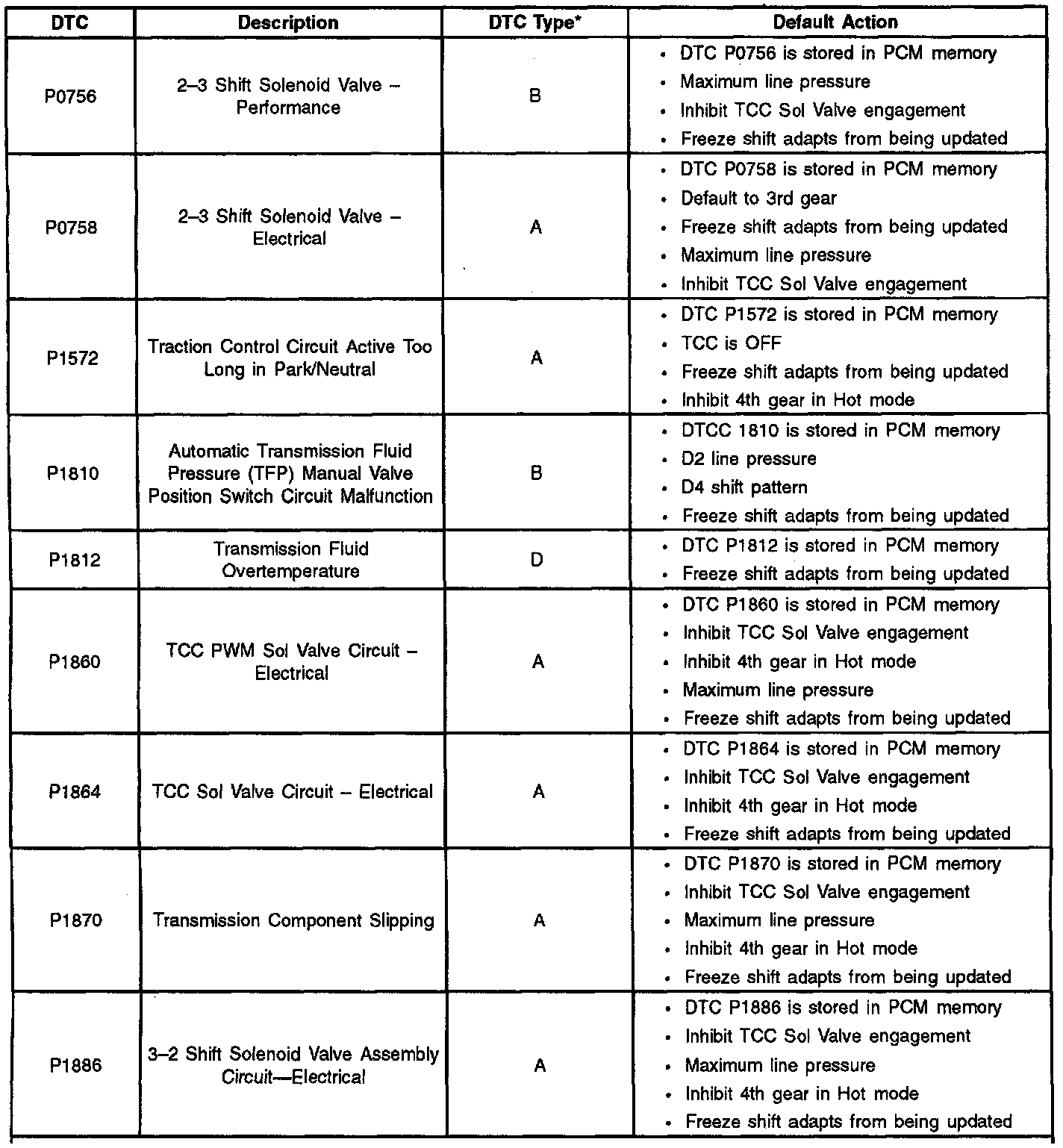

Diagnostic Chart:

DTC TYPES:

A - Emission-related, turns the MIL ON after the first failure.

B - Emission-related, turns the MIL ON after two consecutive trips with failure.

C - Non-emission-related, turns the service lamp ON after the first failure.

D - Non-emission-related, no lamps.
