System Check - Restricted Exhaust

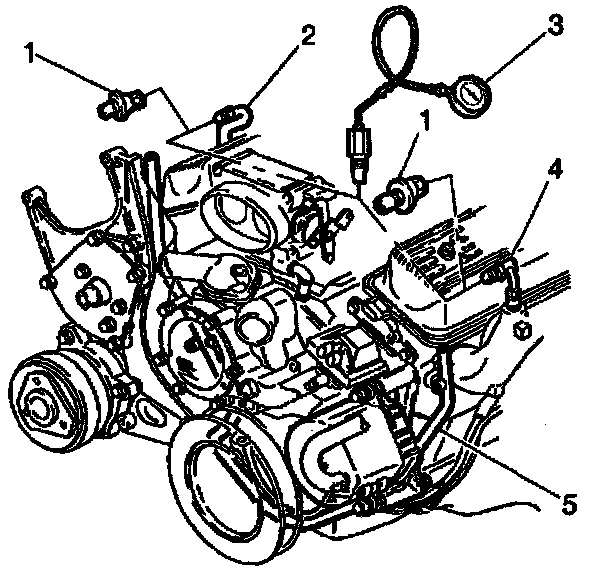

Exhaust System:

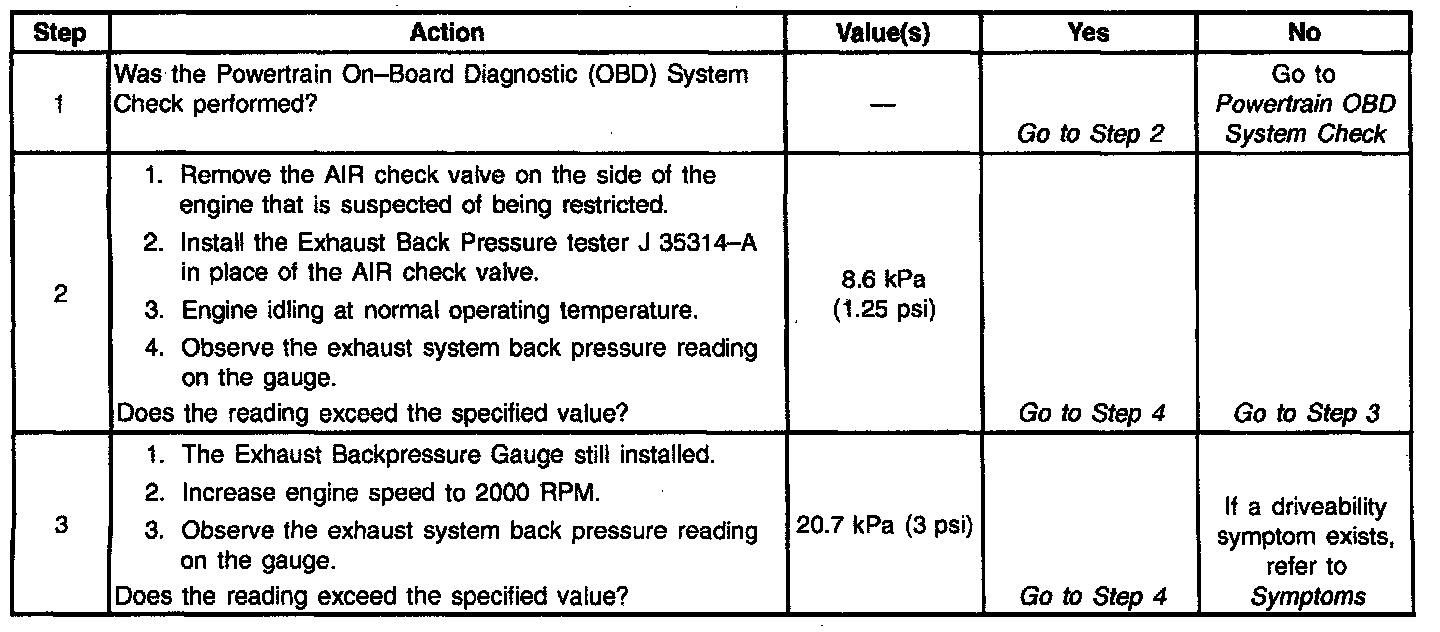

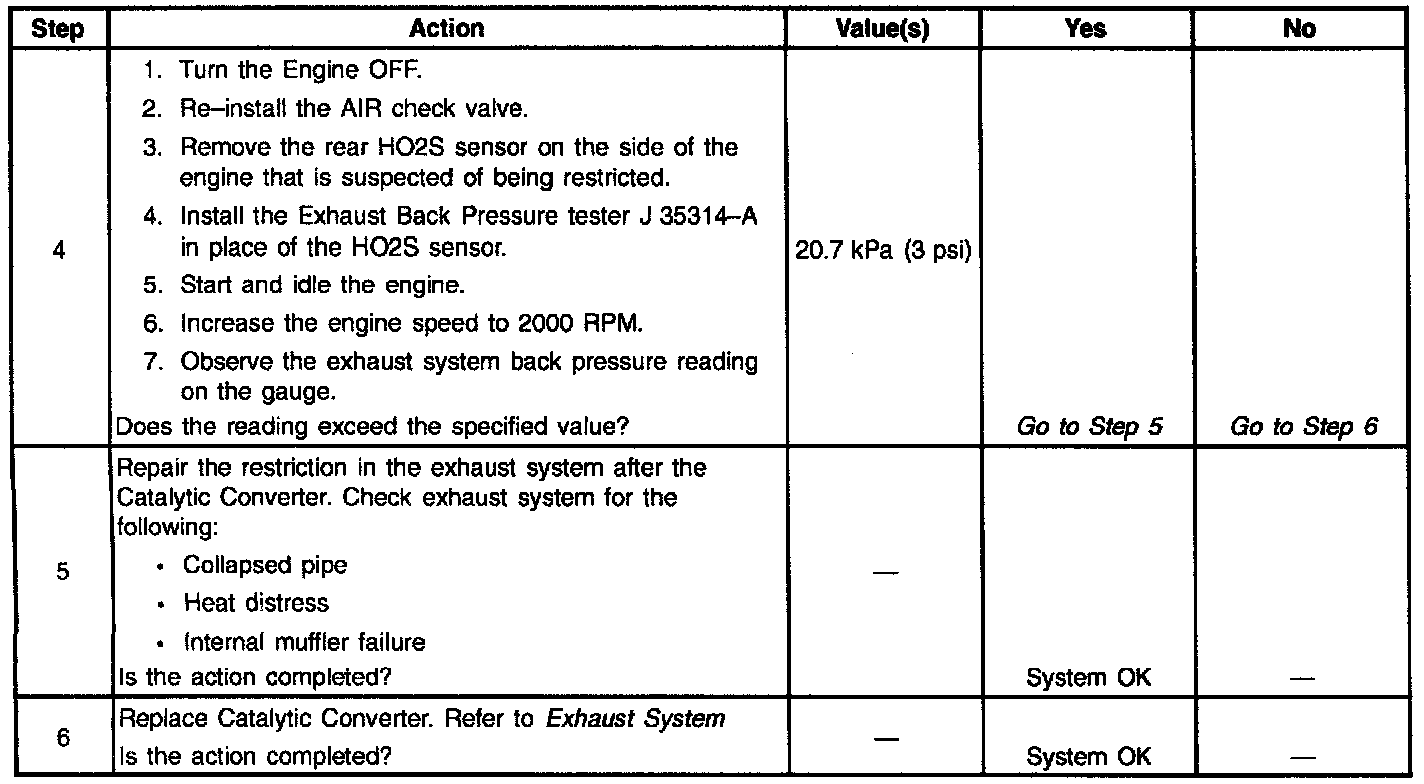

Diagnostic Chart:

Legend

(1) Check Valve

(2) Bank 2 Air Injection Reaction (AIR) Pipe

(3) Exhaust Back Pressure Gauge

(4) Bank 1 AIR Pipe

(5) AIR Cross Under Pipe
