Home
>>
Chevrolet
>>
1996
>>
Caprice V8-265 4.3L VIN W SFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Circuit Breakers
Circuit Breakers

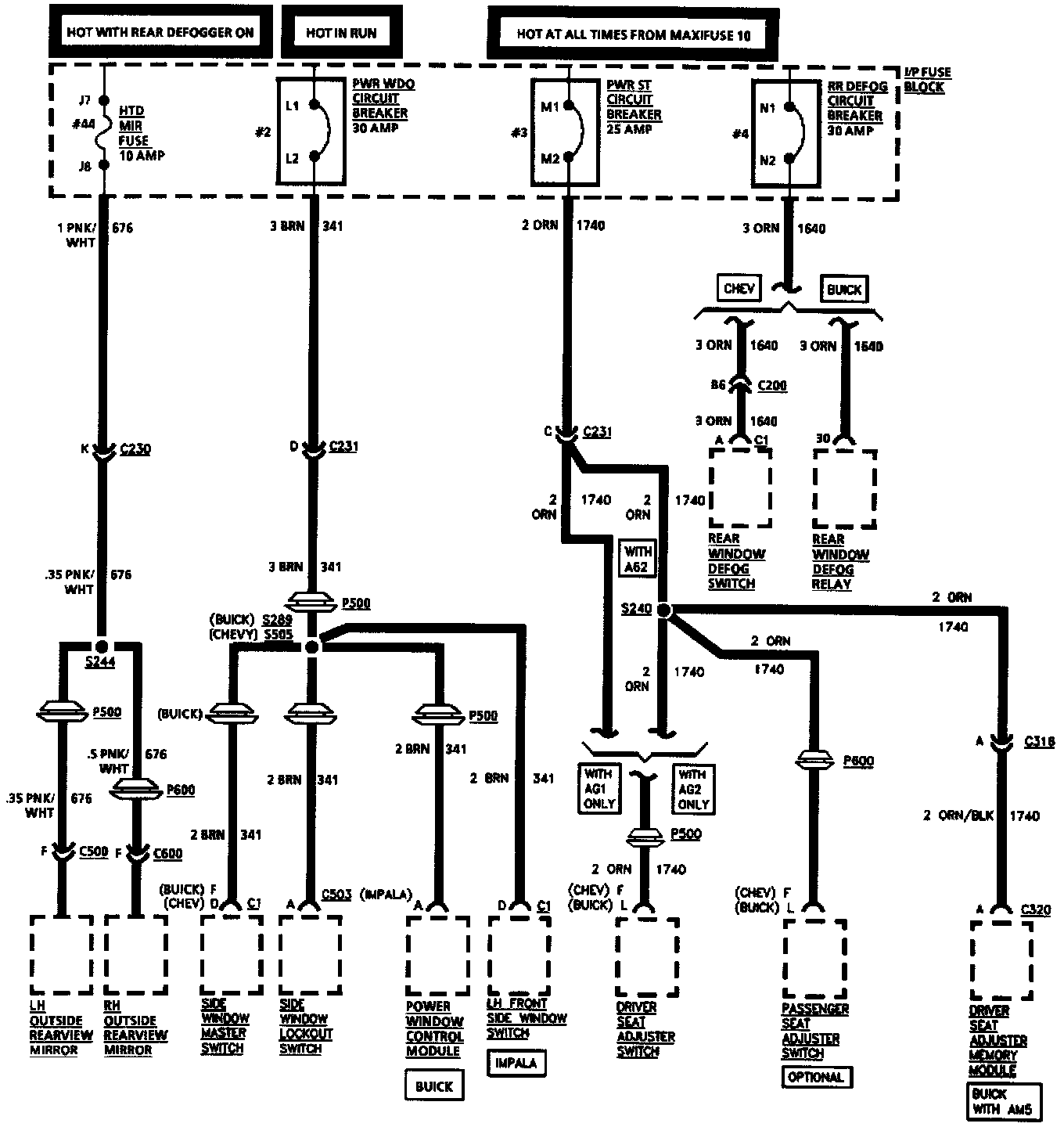

HTD MIR Fuse, PWR WDO, PWR ST And RR DEFOG Circuit Breakers:
