Home
>>
Chevrolet
>>
1996
>>
Caprice V8-265 4.3L VIN W SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Speedometer Head
>>
Testing and Inspection
Speedometer Head: Testing and Inspection

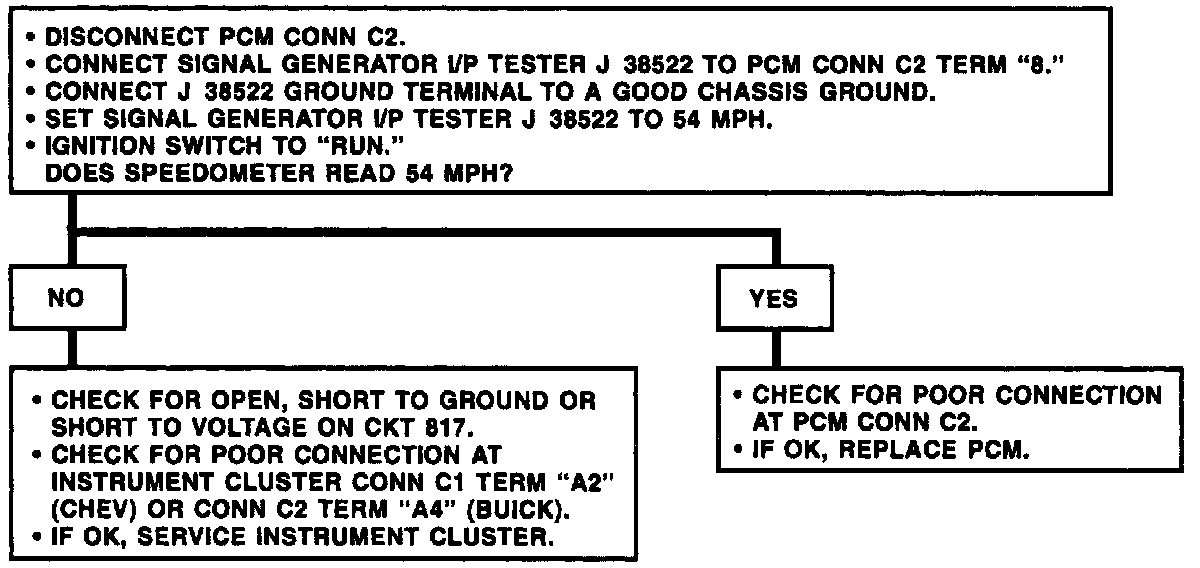

Fig. 102 Chart 11: Speedometer & Cruise Control Inoperative:
