Home >> Chevrolet >> 1996 >> Caprice V8-265 4.3L VIN W SFI >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Temperature Gauge >> Testing and Inspection

Temperature Gauge: Testing and Inspection

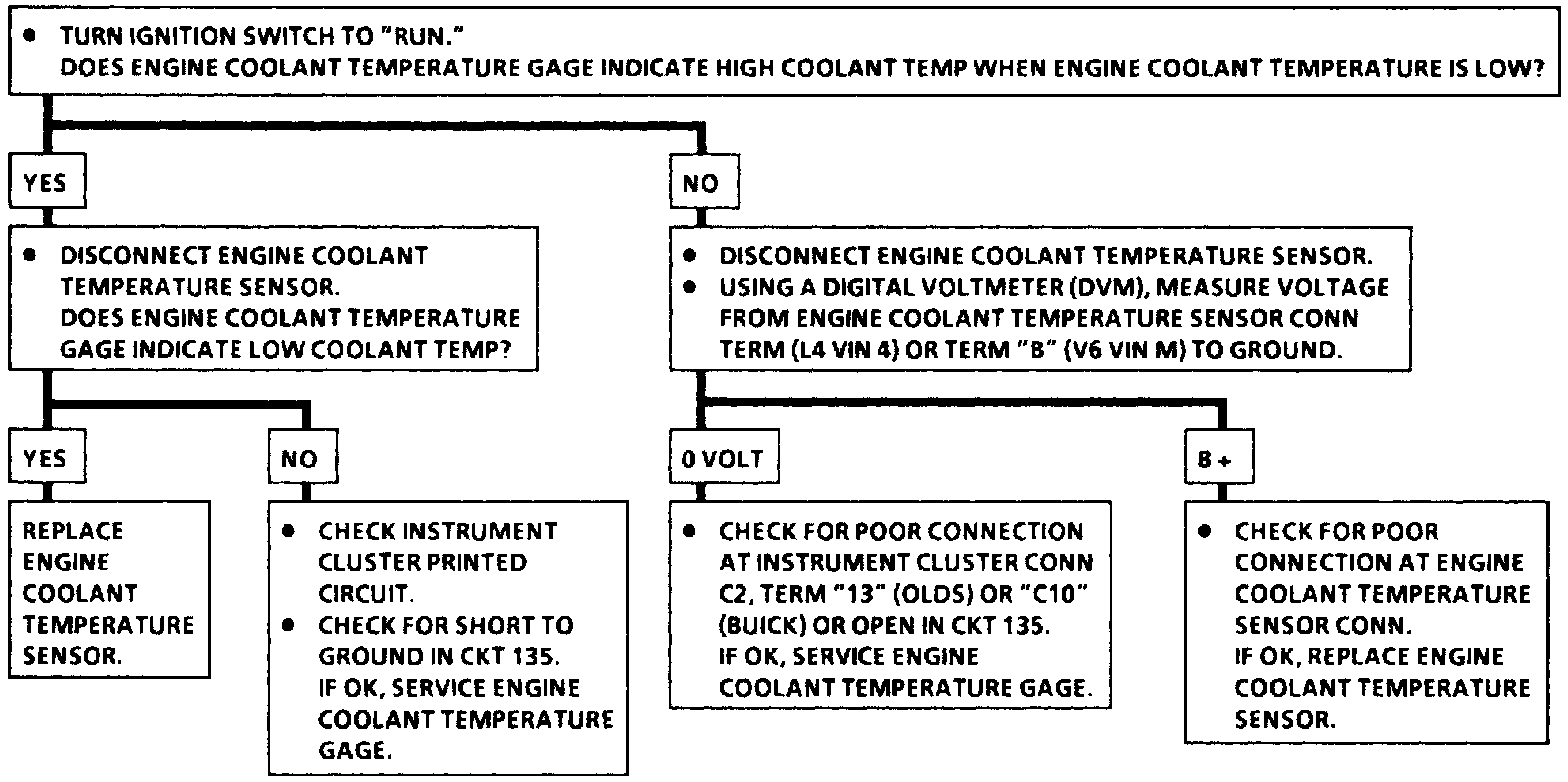

Fig. 104 Chart 2: Engine Coolant Temperature Gauge Inoperative Or Inaccurate:
