Caprice V8-265 4.3L VIN W SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
System Diagram

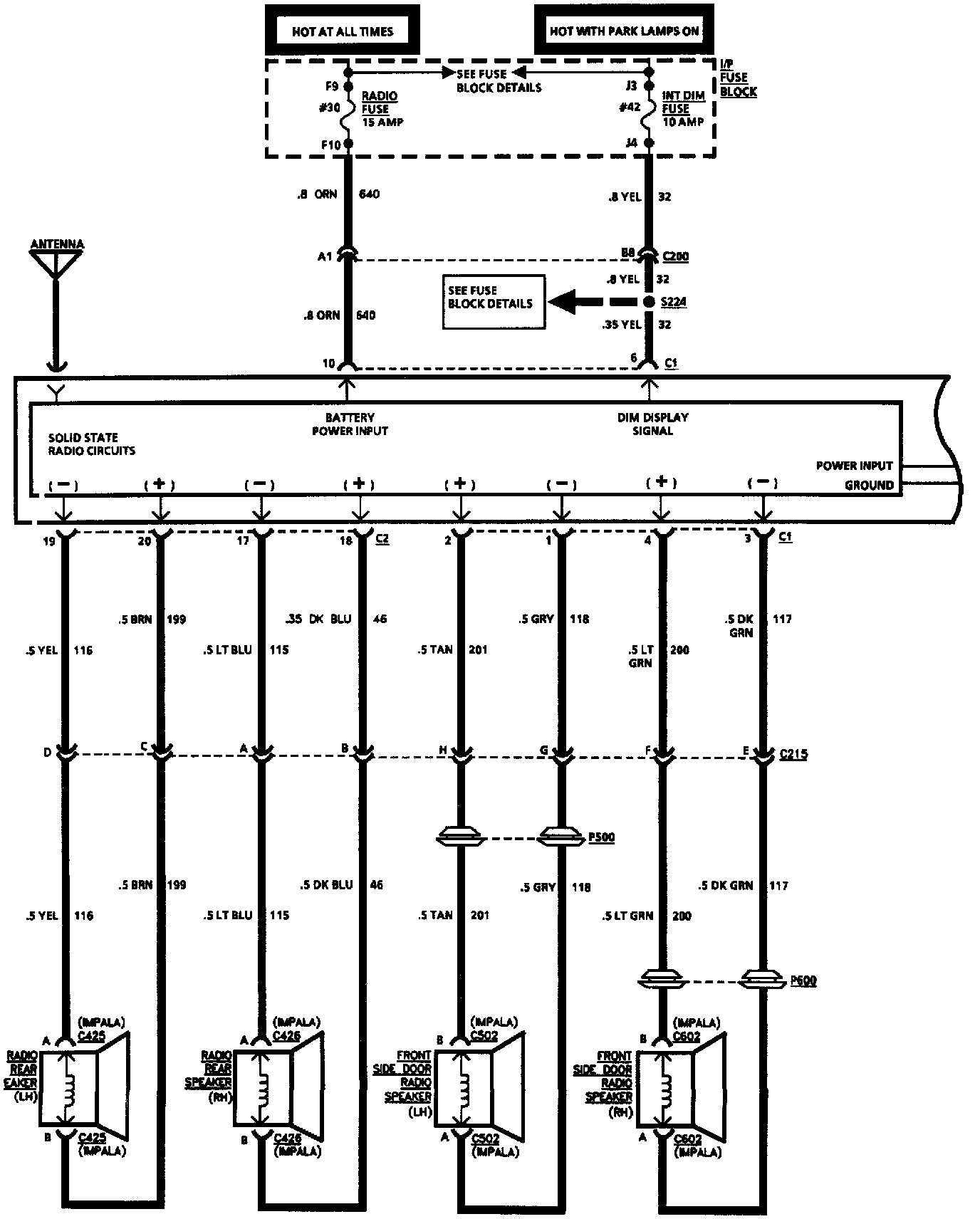

Radio/Audio Systems (Part 1 Of 2):

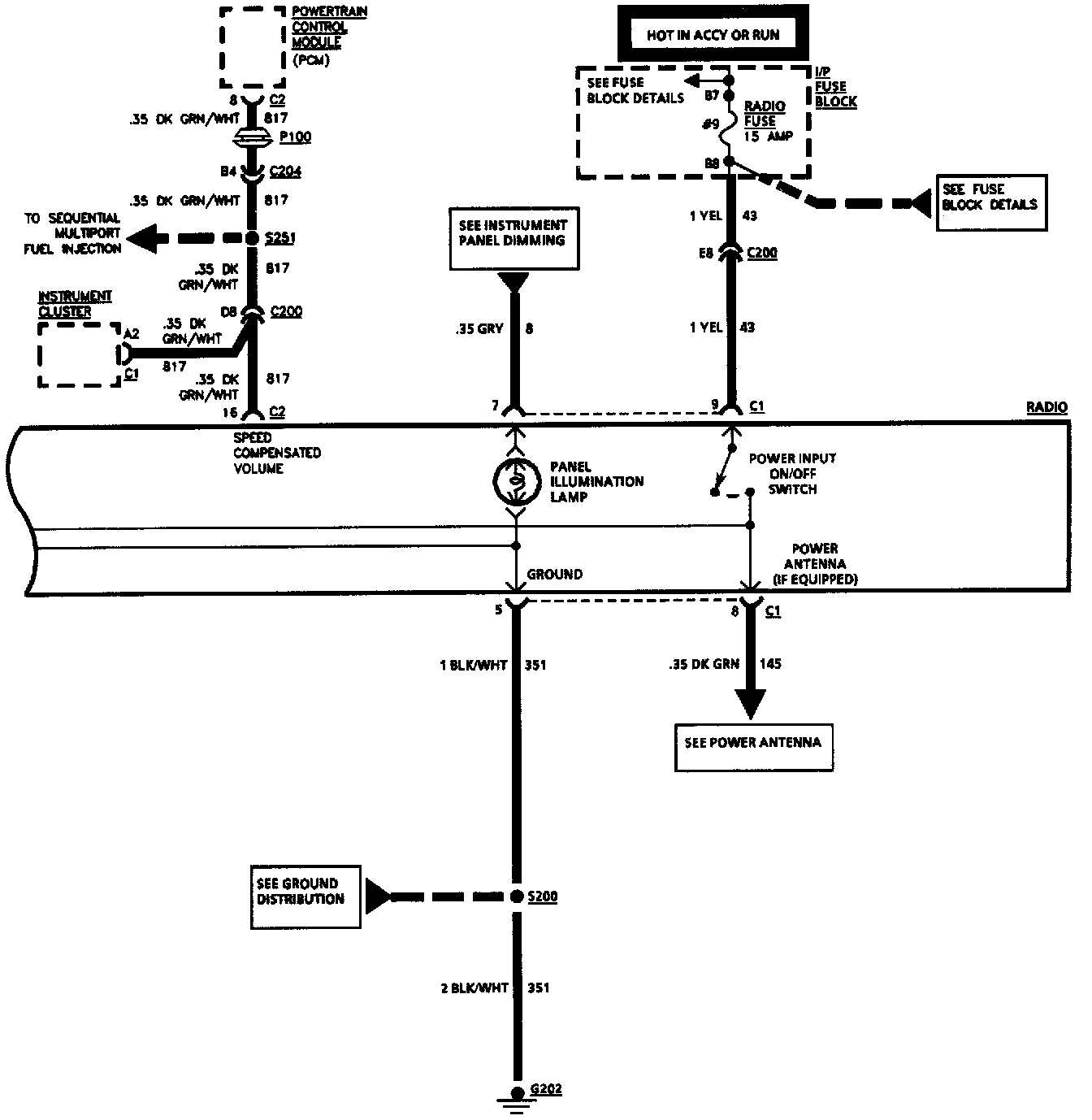

Radio/Audio Systems (Part 2 Of 2):

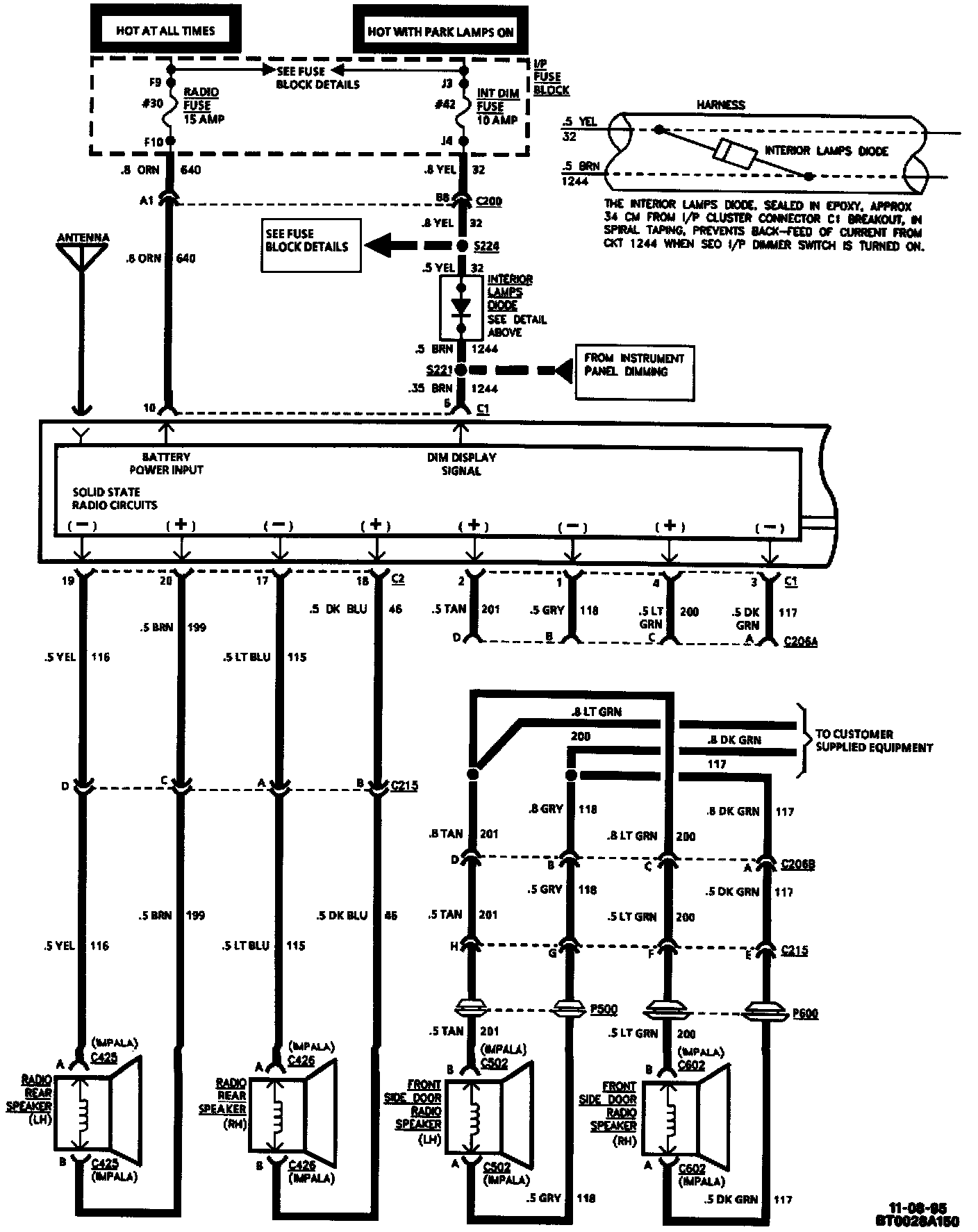

Radio/Audio Systems: SEO (Part 1 Of 2):

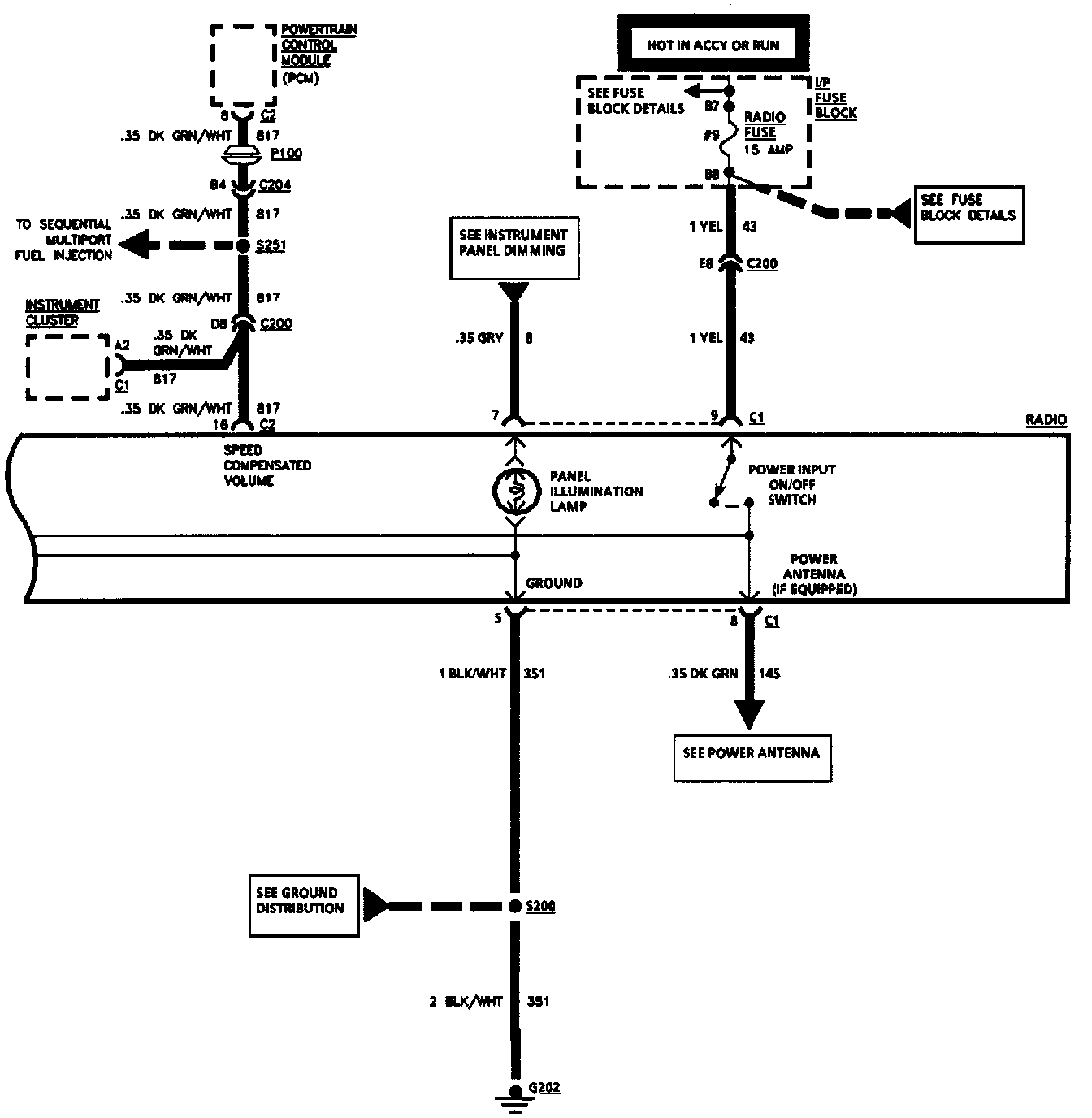

Radio/Audio Systems: SEO (Part 2 Of 2):
