Home
>>
Chevrolet
>>
1996
>>
Caprice V8-265 4.3L VIN W SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Fuel Delivery & Controls
Fuel Delivery & Controls

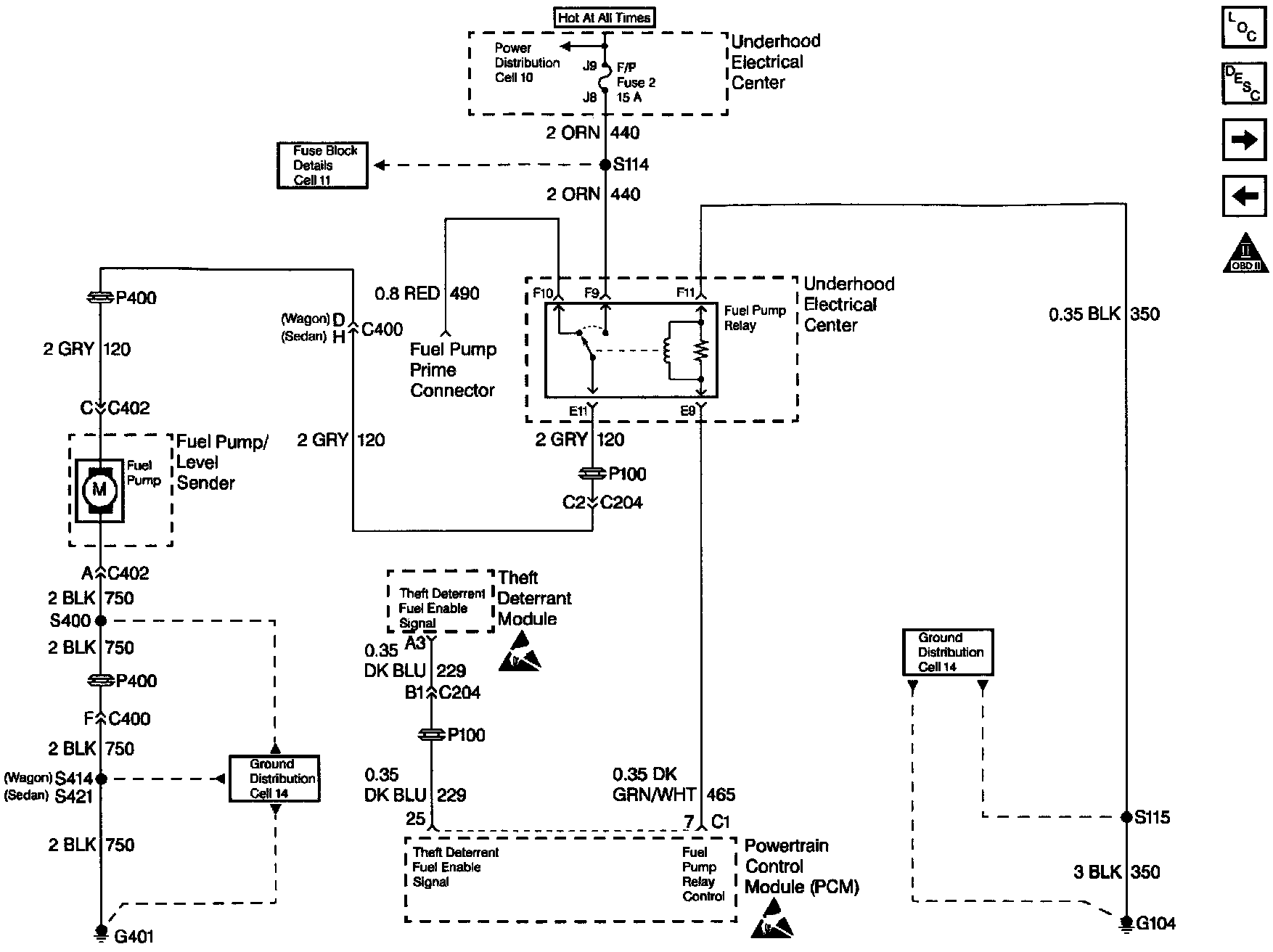

Wiring Diagram:
Wiring Diagram:
