Electronic Climate Control (Controller Wiring)
Electronic Climate Control (Controller Wiring)

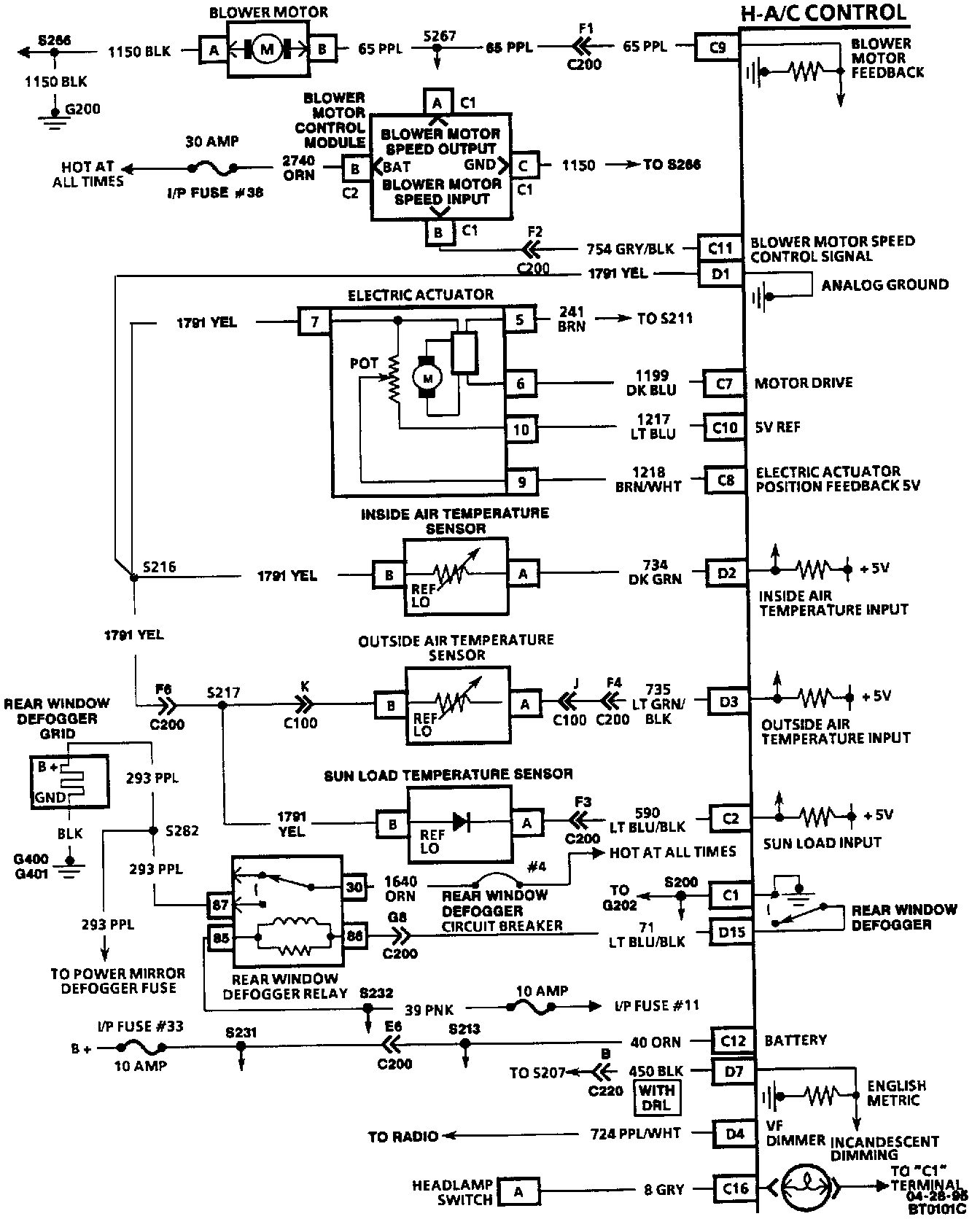

Wiring Diagram:

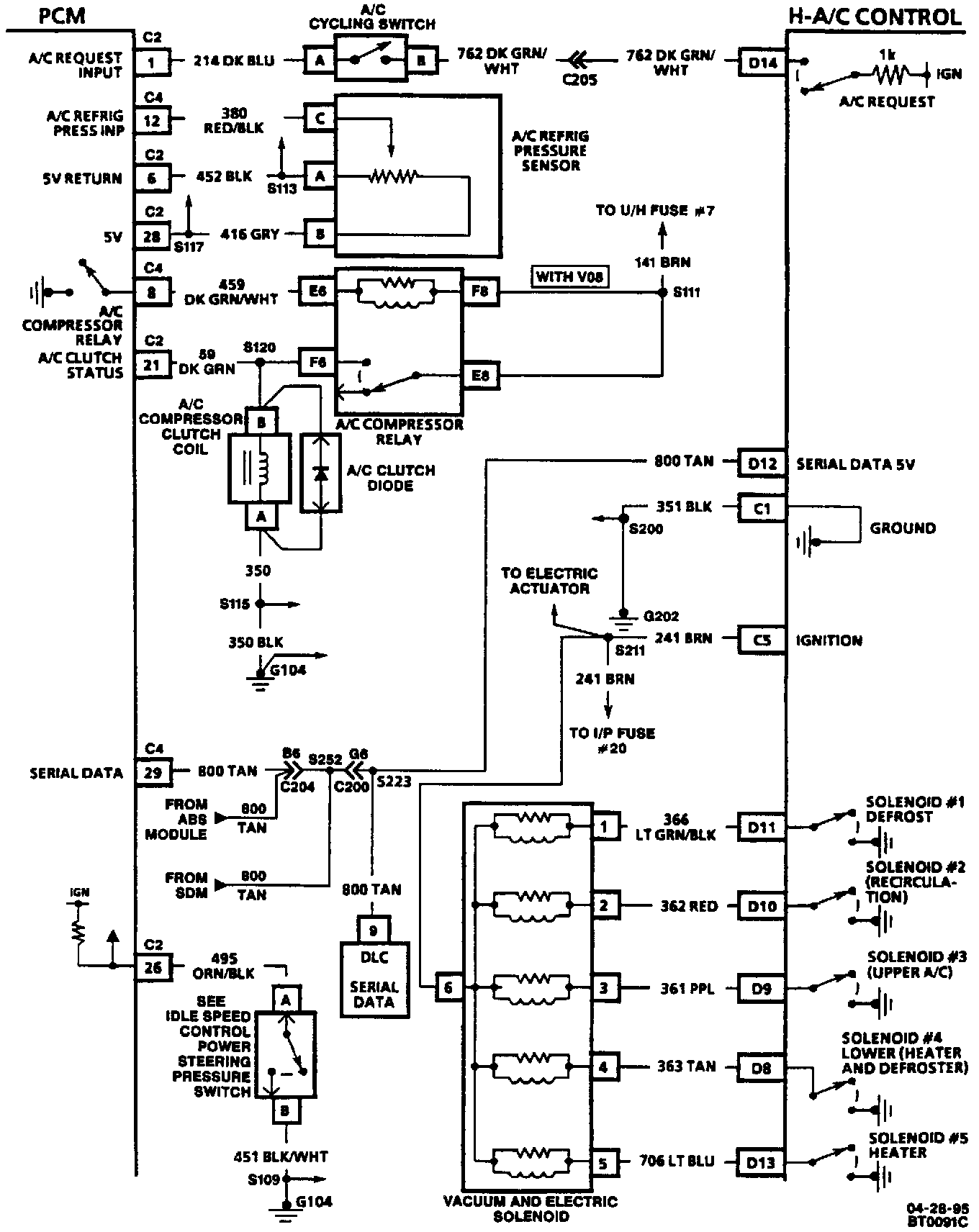

Wiring Diagram:
